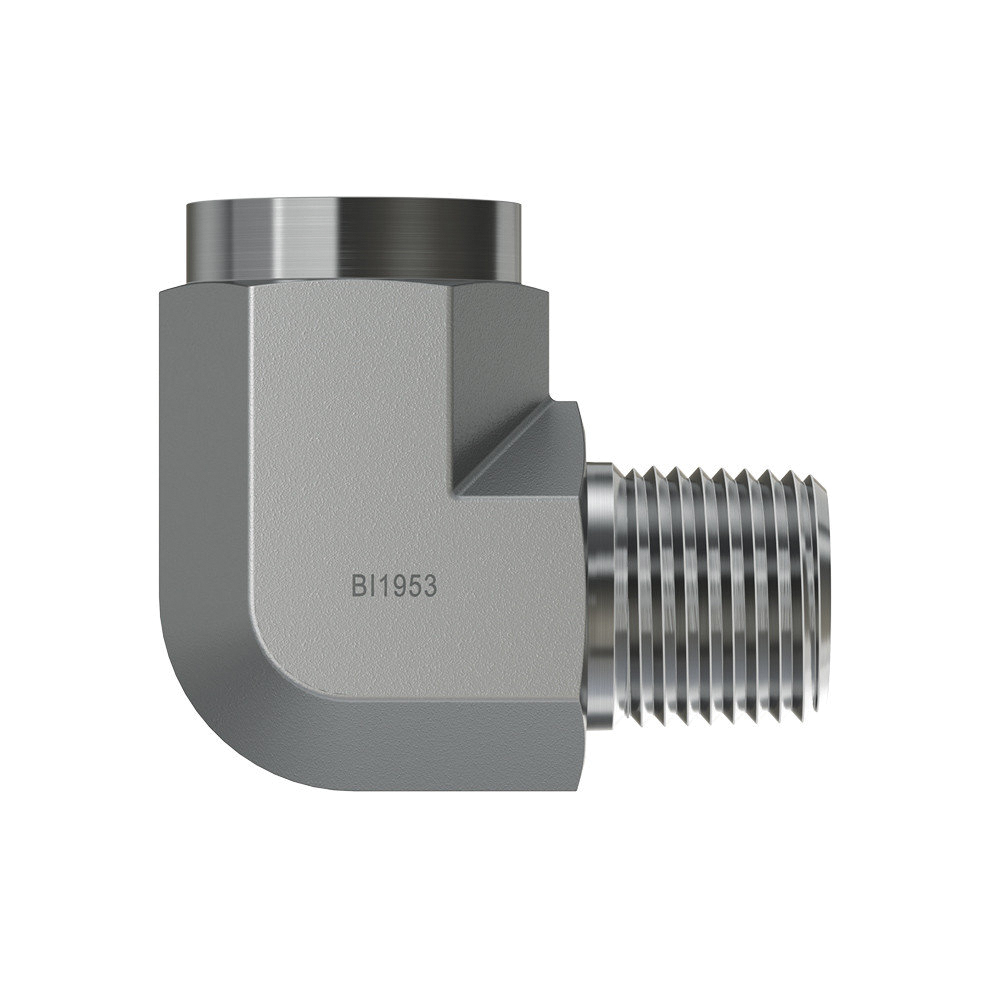

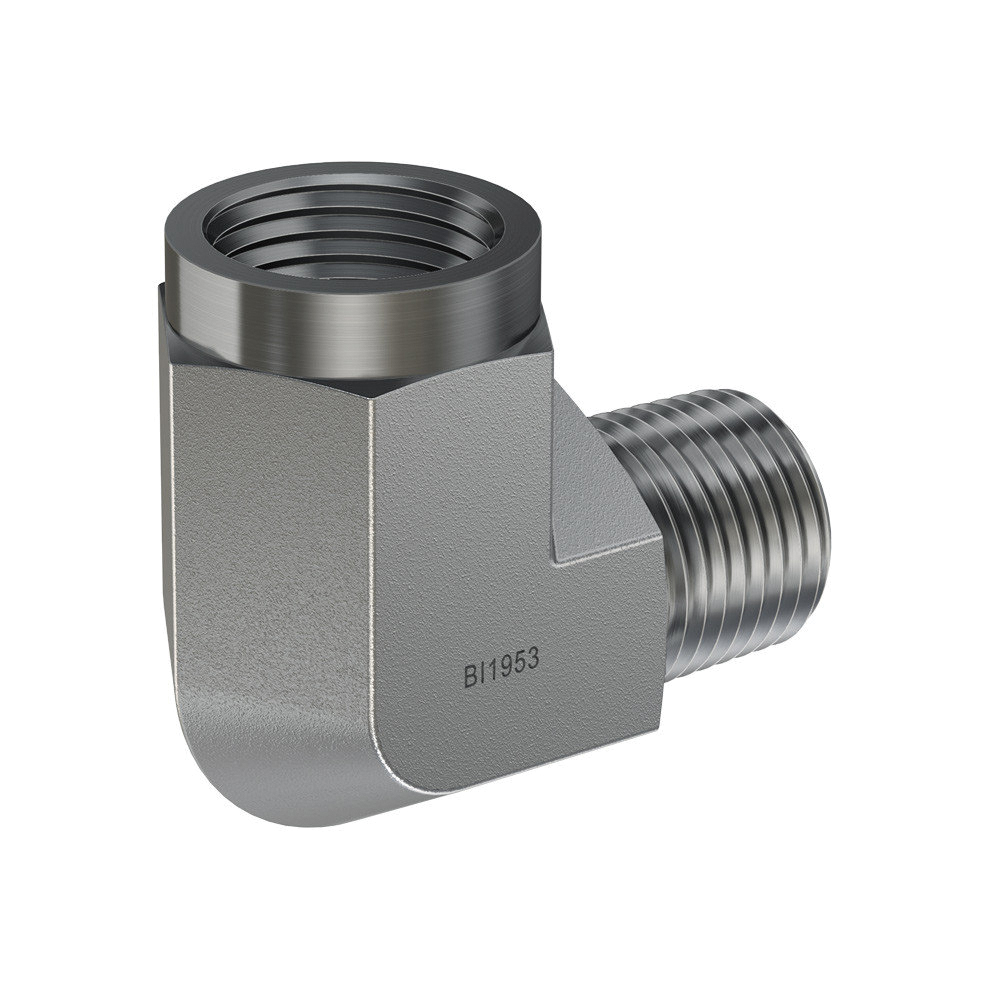

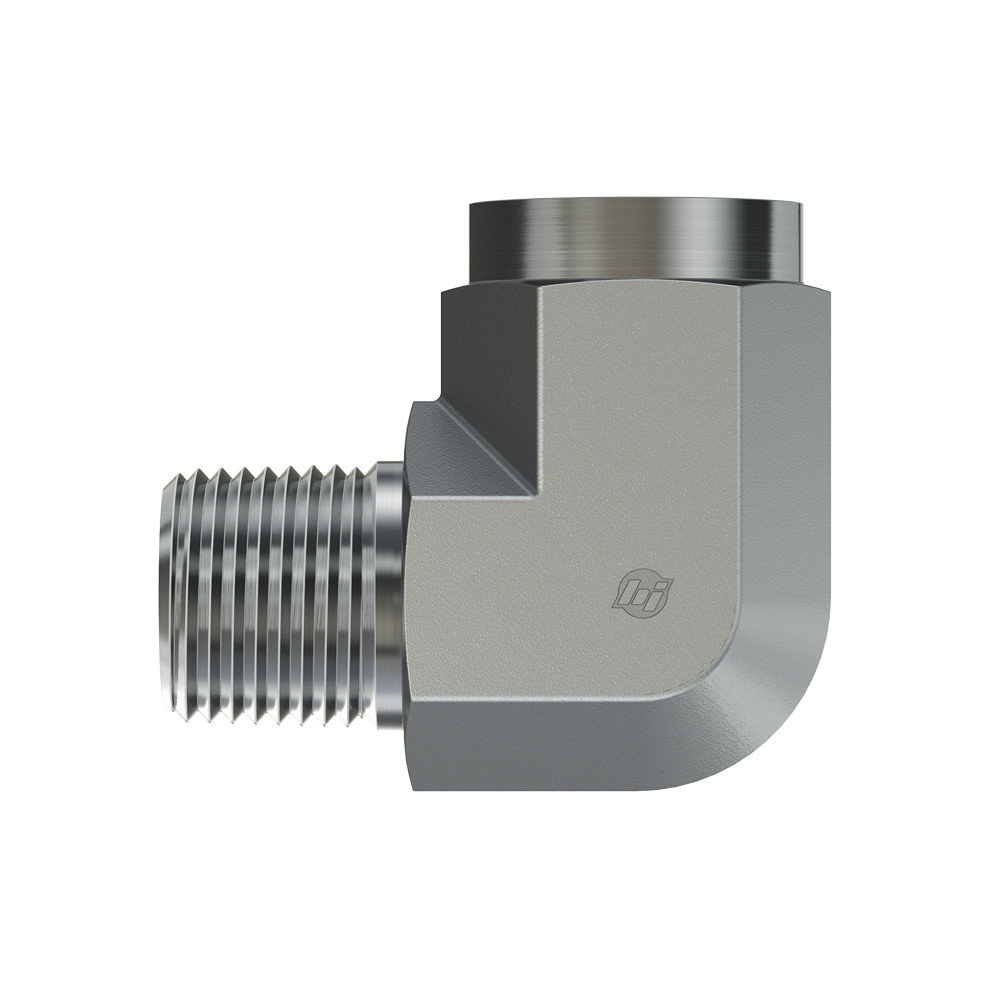

BRENNAN 5502-32-32-FG 90 deg Street Elbow, 2 in Male SAE 30 deg NPTF x 2 in Female SAE NPTF, Steel

Manufacturer: Brennan Industries
Brand: BRENNAN
Item Number: 254731
MPN: 5502-32-32-FG
CPN:
    • Santa Fe Springs, CA
    Connection Size 1      :      2 in
    Connection Size 2      :      2 in
    Connection Type 1      :      Male SAE 30 deg NPTF
    Connection Type 2      :      Female SAE NPTF
    Connection Type      :      MNPT|FNPT
    Dimension Standards      :      SAE J476, SAE J514
    Finish      :      Trivalent Zinc-Plated
    Fitting Type      :      90 deg Elbow
    Hex Size      :      2.812 in
    Material Construction      :      AISI C1045 Steel
    Material      :      Steel
    Maximum Operating Pressure      :      2000 psi
    Operating Temperature      :      -65 to 500 deg F
    Series      :      5502-FG Series
    Thread Size      :      2-11-1/2

    BRENNAN 90 deg Street Elbow, 5502-FG Series, 90 deg Elbow Fitting, 2 in Connection Size 1, Connection Type 1: Male SAE 30 deg NPTF, 2 in Connection Size 2, Connection Type 2: Female SAE NPTF, MNPT|FNPT Connection, Steel, Material Construction: AISI C1045 Steel, Finish: Trivalent Zinc-Plated, 2-11-1/2 Thread, 2.812 in Hex, Dimension Standards: SAE J476, SAE J514, 2000 psi Maximum Operating Pressure, -65 to 500 deg F Operating Temperature
