| Additional Information | : | Standard Design No. 1, SAE "B" 7/8 in 13 Tooth Spline Shaft, SAE "B" 2 and 4-Bolt, PKS Short Cover SAE "B" 2-Bolt Only Mounting Flange, NPT Connection Type, Both Side and Rear Port Location, Bi-Rotational |
| Dimensions | : | 9.06 in L x 6.88 in W x 5.25 in H |
| Displacement | : | 3.94 cu-in |
| Flow Rate | : | 17.1 gpm |
| Housing Material | : | Iron |
| Inlet Size | : | 1-1/4 in |
| Inlet Type | : | NPT |
| Pressure Rating | : | 2500 psi |
| Series | : | PK Series |
| Speed Rating | : | 2500 rpm |

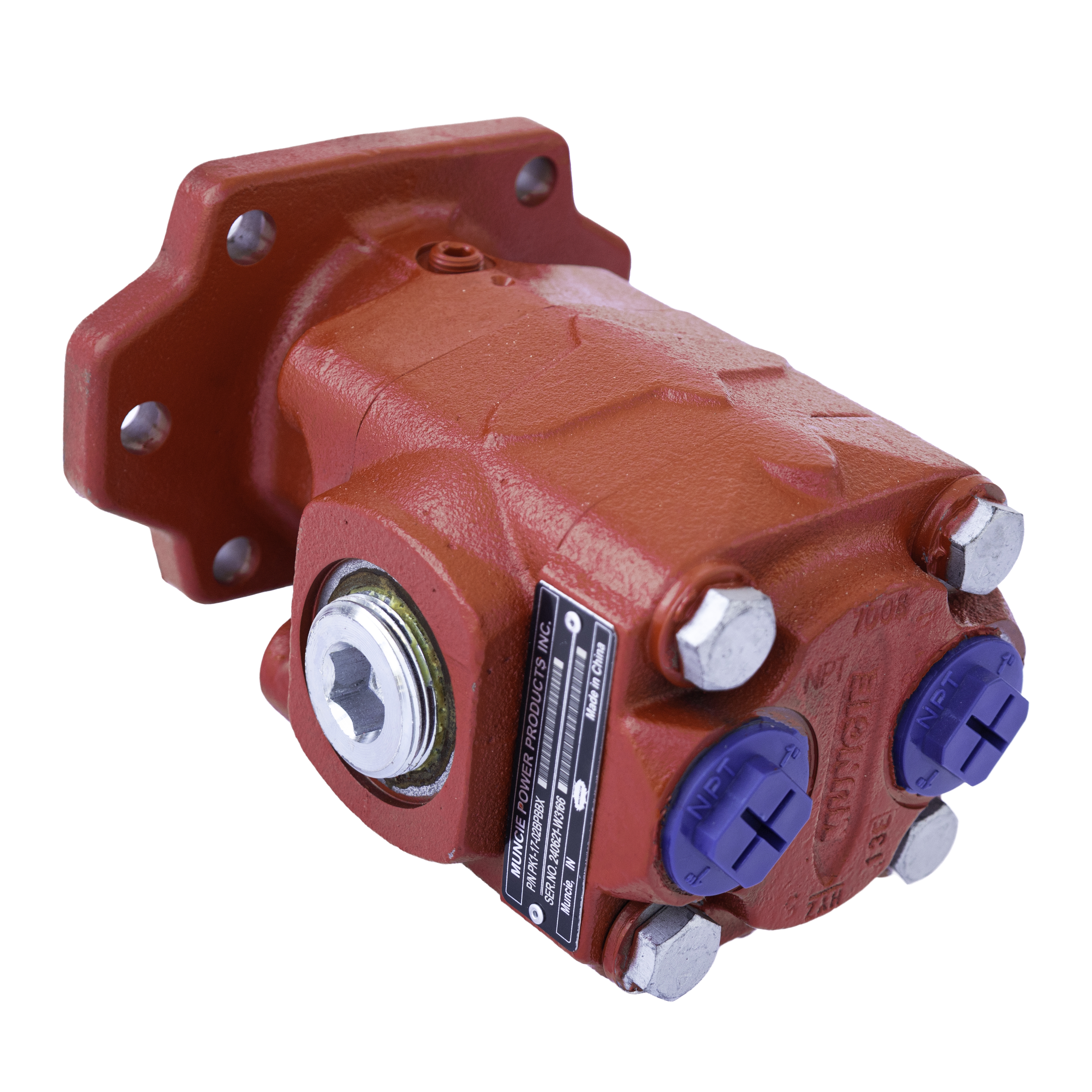

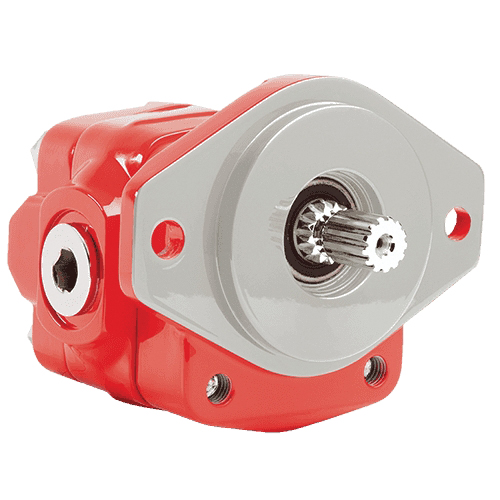

The PK Series is designed to meet the application needs of either a pump or a motor. All cast iron construction with 4 ports and roller bearing design. The pumps bi-rotational feature helps reduce inventory requirements.
Muncie® Gear Pump, PK Series, 3.94 cu-in Displacement, 17.1 gpm Flow Rate, 2500 rpm, 1-1/4 in Inlet, NPT Inlet, 2500 psi, Iron Housing, 9.06 in L x 6.88 in W x 5.25 in H, Standard Design No. 1, SAE "B" 7/8 in 13 Tooth Spline Shaft, SAE "B" 2 and 4-Bolt, PKS Short Cover SAE "B" 2-Bolt Only Mounting Flange, NPT Connection Type, Both Side and Rear Port Location, Bi-Rotational
- 7 pump sizes (4, 6, 8, 11, 13, 15, 17 GPM at 1000 RPM): Fit a wide variety of applications
