| Additional Information | : | 3-Line, Lever Shift Type, Standard Design No. 1, 7/8-13 Tooth Splined Shaft, SAE "B" Mounting, Pipe Thread Port, Rear Port Location, Dump Trucks Compatible Equipment, Without Bracket |
| Dimensions | : | 16.12 in L x 7.97 in W x 6.25 in H |
| Displacement | : | 6.37 cu-in |
| Flow Rate | : | 27 gpm |
| Housing Material | : | Iron |
| Inlet Size | : | 1-1/4 in |
| Inlet Type | : | NPT |
| Input Speed | : | 2500 rpm |
| Maximum Operating Pressure | : | 2500 psi |
| Rotation Direction | : | Counter Clockwise |
| Series | : | E Series |
The Muncie E Series dump pumps are designed to meet the needs of the dump trucking industry. Muncie dump pumps are available in both direct and remote mount configurations; standard or extra-large port sizes; two or three line plumbing; and air, cable, or lever shift.

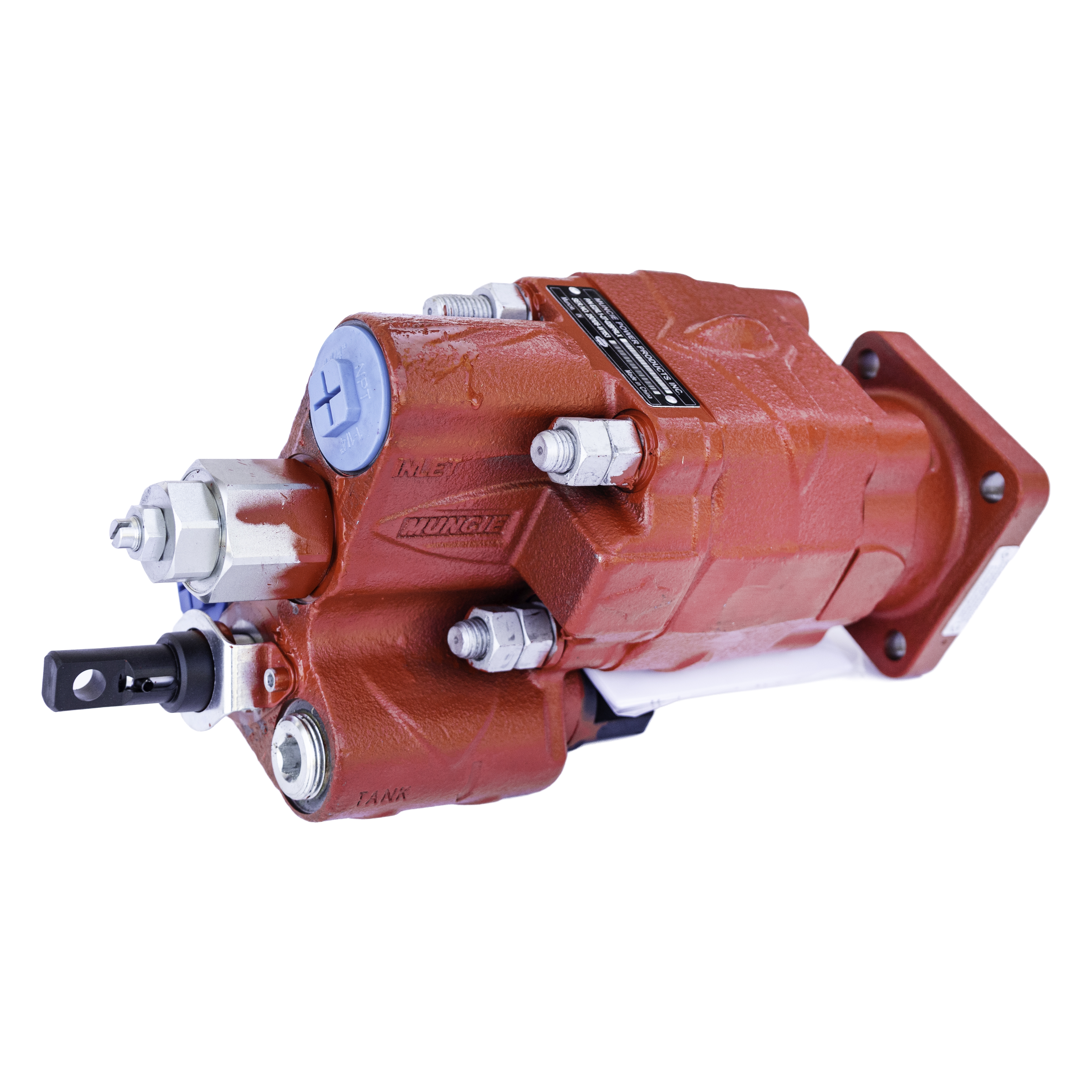

Muncie® Dump Pump, E Series, 6.37 cu-in Displacement, 27 gpm Flow Rate, 2500 psi Maximum Operating Pressure, 2500 rpm Input Speed, 1-1/4 in Inlet, NPT Inlet, Iron Housing, Counter Clockwise Rotation Direction, 16.12 in L x 7.97 in W x 6.25 in H, 3-Line, Lever Shift Type, Standard Design No. 1, 7/8-13 Tooth Splined Shaft, SAE "B" Mounting, Pipe Thread Port, Rear Port Location, Dump Trucks Compatible Equipment, Without Bracket
- Three piece, cast iron construction: Heavy duty, rebuildable
