| Additional Information | : | -40 to 80 deg C Temperature Rating, SPST Configuration |
| Amperage Rating | : | 175 A |
| Finish | : | Plated |
| Material | : | Steel |
| Voltage Rating | : | 36 VDC |

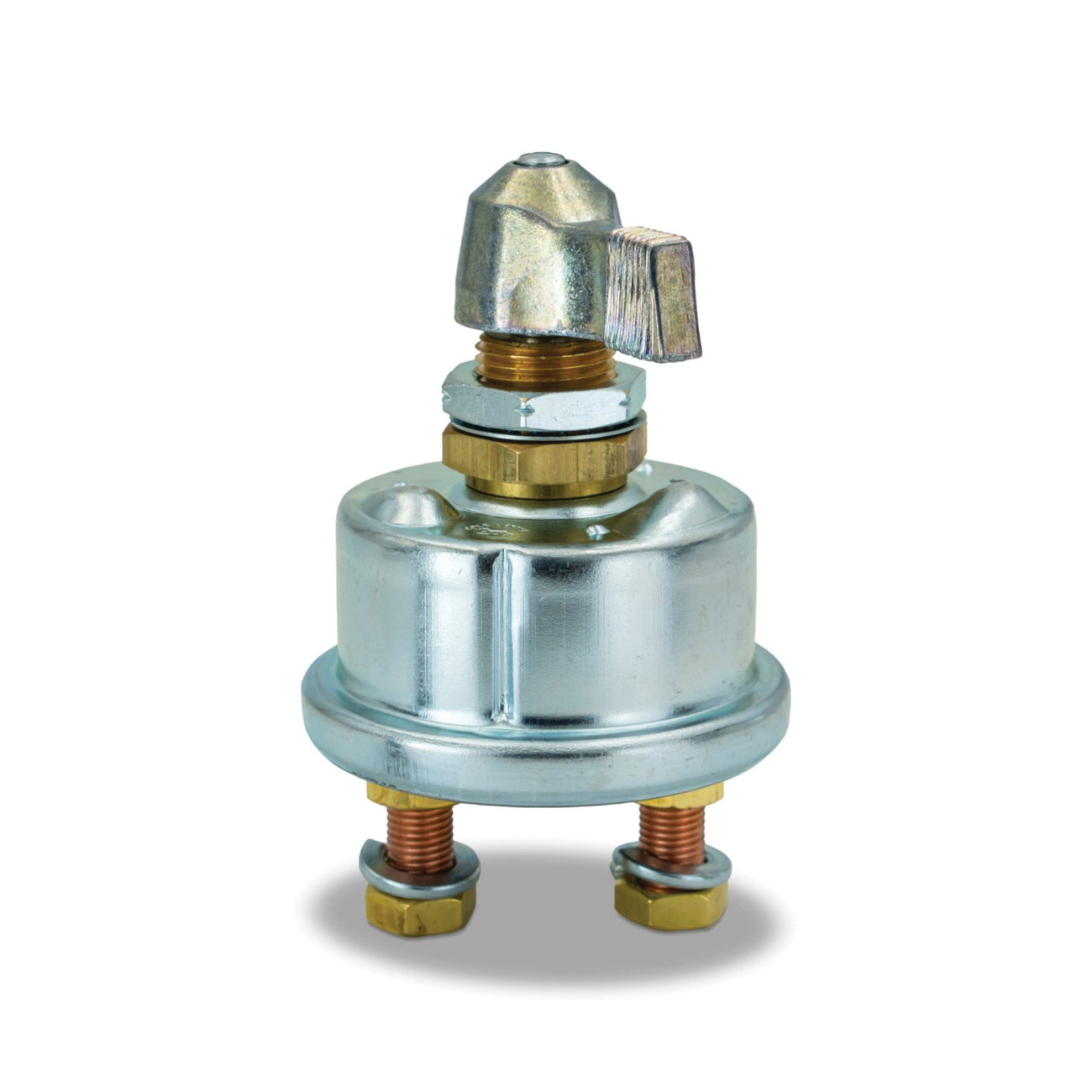

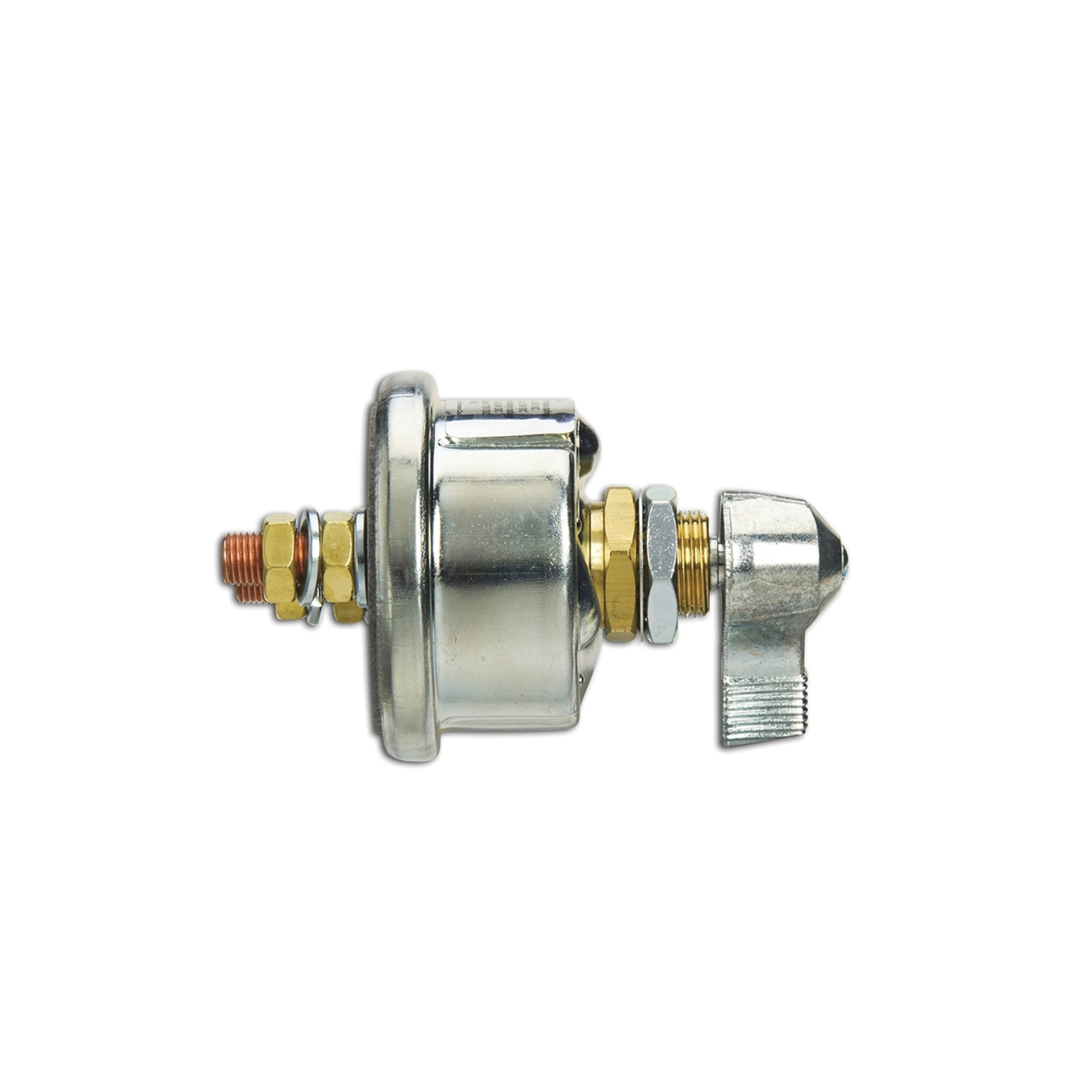

Designed for quickly disconnecting the battery from a vehicle's electrical system, this Heavy-Duty Single-Pole Series 36 V 175 A Master Battery Disconnect Switch with Die-Cast Lever, Silver Contacts & IPX7 Rating (2484-06) helps prevent potential thermal events and ensures system shutdown during maintenance for the safety of service personnel. Featuring heavy-duty plated-steel housing, this manual master disconnect switch is ideal for heavy-duty truck, construction, emergency vehicle, bus and transit, and agricultural applications.
Littelfuse® Master Battery Disconnect Switch, 36 VDC, 175 A, Steel, Finish: Plated, Additional Information: -40 to 80 deg C Temperature Rating, SPST Configuration
- 175 A continuous current rating and 1000 A intermittent current rating
