Labrie™ Expert Helping-Hand Side Loader, New Equipment, CNG Fuel, 15 to 37 cu-yd Body
This item has special delivery requirements
Please contact Owen Companies to order
| Arm Lift Capacity | : | 400 lb |
| Arm Reach | : | 84 in |
| Automation Level | : | Automated, Manual, Semi-Automated |
| Body Capacity | : | 15 to 37 cu-yd |
| Body Floor Thickness | : | 3/16 in |
| Body Material | : | Steel |
| Body Side Wall Thickness | : | 10 ga |
| Body Type | : | Tapered |
| Compaction Ratio | : | 850 lb/cu-yd |
| Condition | : | New |
| Control Type | : | Joystick, Electric Over Hydraulic |
| Cylinder Specification | : | 4-Stage, 6-1/16 in Bore |
| Dimensions | : | 375 to 470 in L x 240 in W x 185 to 185 in H |
| Ejection Type | : | Tip-to-Dump |
| Fuel Type | : | CNG |
| Hopper Capacity | : | 4 cu-yd |
| Hopper Style | : | Enclosed |
| Hydraulic Flow Rate | : | 20 gpm |
| Hydraulic Pressure | : | 3000 psi |
| Hydraulic Pump Type | : | Single Vane, Dual Vane |
| Hydraulic Tank Capacity | : | 65 gal |
| Model | : | Expert Helping-Hand |
| Packing Cycle Time | : | 13 s |
The most versatile waste collection vehicle available, the Labrie Expert can be used for manual, semi-automated or fully automated collection.
Labrie™ Side Loader, Model: Expert Helping-Hand, New Condition, CNG Fuel, 15 to 37 cu-yd Body Capacity, 4 cu-yd Hopper Capacity, Compaction Ratio: 850 lb/cu-yd, 13 s Packing Cycle Time, 84 in Arm Reach, 400 lb Arm Lift Capacity, 65 gal Hydraulic Tank Capacity, 20 gpm Hydraulic Flow Rate, 3000 psi Hydraulic, Single Vane, Dual Vane Hydraulic Pump, Cylinder Specification: 4-Stage, 6-1/16 in Bore, Steel Body, 3/16 in Body Floor Thickness, 10 ga Body Side Wall Thickness, Tapered Body, Enclosed Hopper Style, Tip-to-Dump Ejection, Joystick, Electric Over Hydraulic Control, Automated, Manual, Semi-Automated Automation Level, 375 to 470 in L x 240 in W x 185 to 185 in H

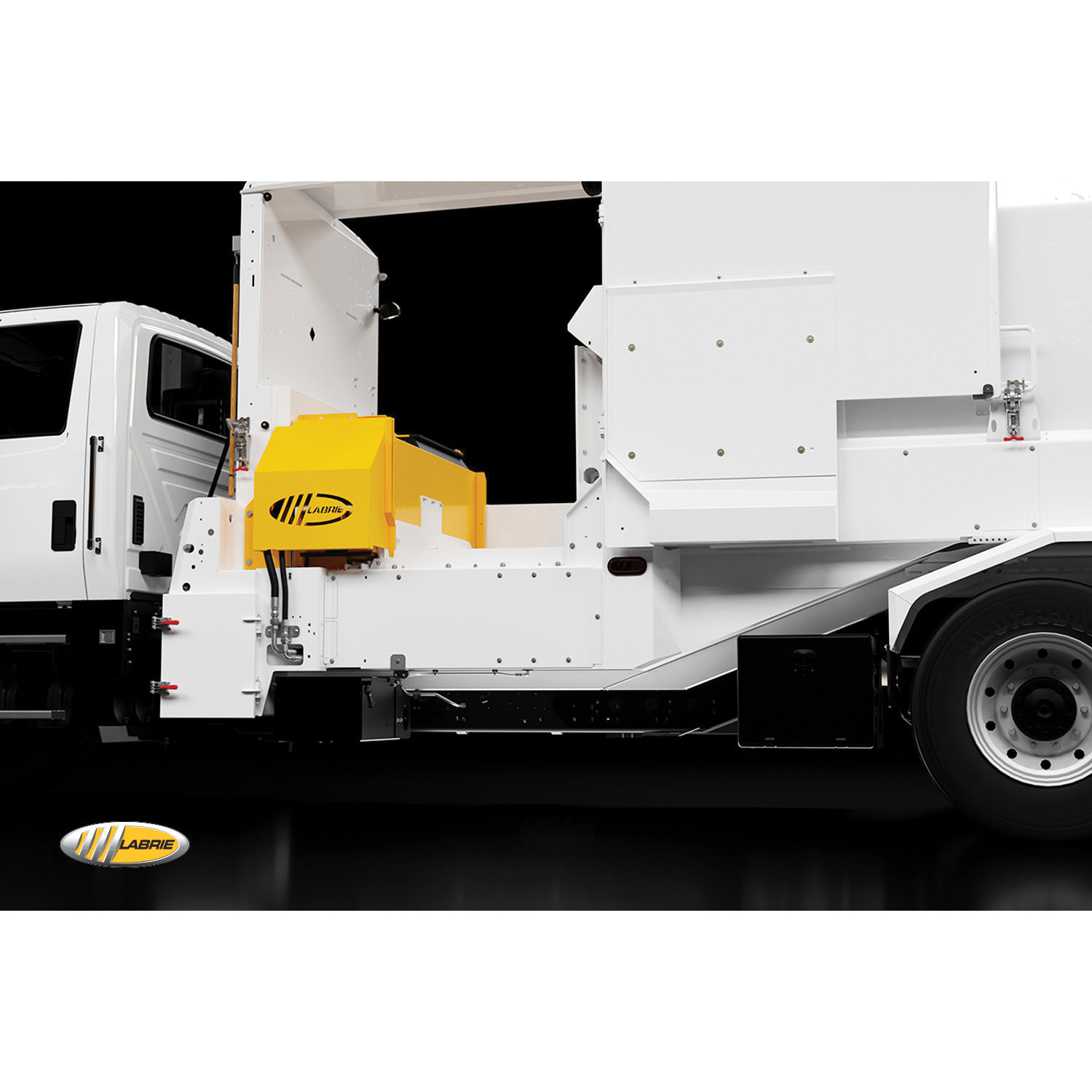

- MANUAL OR SEMI-AUTOMATED COLLECTION - The proprietary drop frame chassis modification engineered and performed in house is perfect for manual or semi-automated waste or recycling collection and the loading height of only 5.5" above the chassis frame makes this configuration safer, faster, and easier to load
- THE HELPING HAND™ ARM - The Helping Hand™ arm's pivot point provides minimal swing out, which is perfect for loading in places where operating room is limited, but can still extend up to 10 feet to make quick work of demanding routes
- in-house drop frame modification - Labrie™ is the only manufacturer that performs the drop frame modifications process internally. Unlike other manufacturers that outsource this task to third-party providers, we have direct control over the process, which ultimately benefits our clients in numerous ways

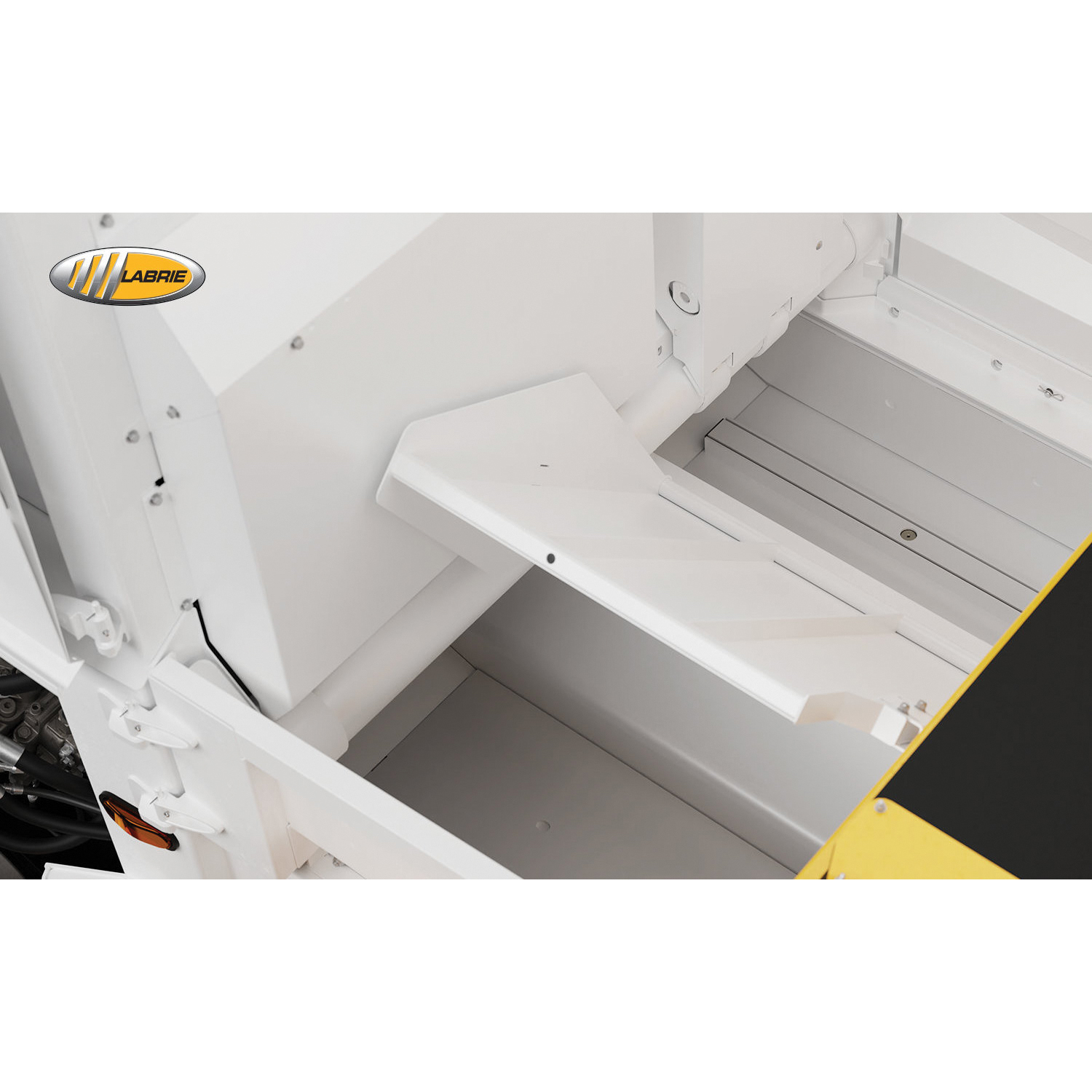

- Single or split chute inside the hopper - The versatility that this split design offers is essential when maximizing payload and adapting route diversion rates. The body comes in a 50/50, 40/60, or 60/40-split configuration, which can be combined with one of 8 body sizes to choose from. Controlled by a hydraulic cylinder, the hopper chute can be re-configured on-the-go from within the cab
- CNG POWERED - The need for alternative energy is real. Meet that need with Labrie's proprietary CNG System. For thoroughly engineered alternative energy solutions, the answer is always Labrie
- 15 cu-yd to 37cu-yd body sizes available
- Arm with 10' reach* & 400 lb lifting capacity
- Tapered body for effortless unloading
- 50/50, 40/60 or 60/40 split body configurations available
- Manual, semi-automated or fully automated
