Labrie™ Automizer Pendulum Packer Side Loader, New Equipment, CNG, Electric Fuel, 3.3 cu-yd Hopper
Geo Restricted Items. Please login to see if available in your location
| Arm Lift Capacity | : | 550 lb |
| Arm Reach | : | 149-1/2 in |
| Automation Level | : | Automated |
| Body Capacity | : | 15 to 37 cu-yd |
| Body Floor Thickness | : | 0.157 in |
| Body Material | : | Steel |
| Body Side Wall Thickness | : | 10 ga |
| Body Type | : | Tapered |
| Compaction Ratio | : | 700 lb/cu-yd |
| Condition | : | New |
| Control Type | : | Joystick, Electric Over Hydraulic |
| Cylinder Specification | : | 4-Stage, 6-1/16 in Bore |
| Dimensions | : | 362 to 456 in L x 241 in W x 183 to 243 in H |
| Ejection Type | : | Tip-to-Dump |
| Fuel Type | : | CNG, Electric |
| Hopper Capacity | : | 3.3 cu-yd |
| Hopper Style | : | Liquid-Tight |
| Hydraulic Flow Rate | : | 20.4 gpm |
| Hydraulic Pump Type | : | Dual Vane |
| Hydraulic Tank Capacity | : | 84 to 94 gal |
| Model | : | Pendulum Packer |
| Packing Cycle Time | : | 22 s |
A unique self-cleaning, fixed position Pendulum Packer that packs organics and solids on the go.
Labrie™ Side Loader, Model: Pendulum Packer, New Condition, CNG, Electric Fuel, 15 to 37 cu-yd Body Capacity, 3.3 cu-yd Hopper Capacity, Compaction Ratio: 700 lb/cu-yd, 22 s Packing Cycle Time, 149-1/2 in Arm Reach, 550 lb Arm Lift Capacity, 84 to 94 gal Hydraulic Tank Capacity, 20.4 gpm Hydraulic Flow Rate, Dual Vane Hydraulic Pump, Cylinder Specification: 4-Stage, 6-1/16 in Bore, Steel Body, 0.157 in Body Floor Thickness, 10 ga Body Side Wall Thickness, Tapered Body, Liquid-Tight Hopper Style, Tip-to-Dump Ejection, Joystick, Electric Over Hydraulic Control, Automated Automation Level, 362 to 456 in L x 241 in W x 183 to 243 in H

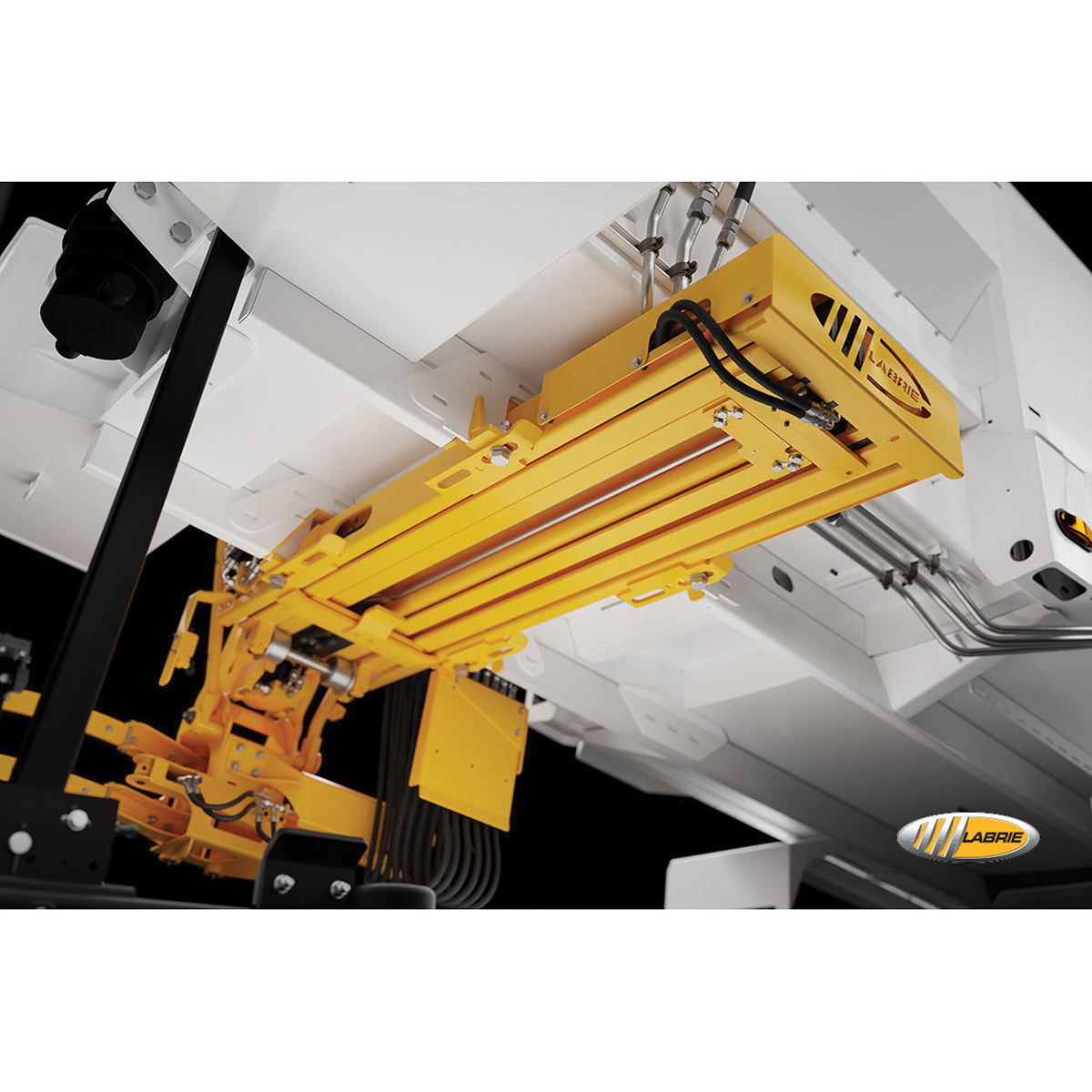

- The Patented Pendulum Packer - The Pendulum Packer is a fixed position packing system situated between the hopper and the body. It has no rails, no blade, and no clean-out door, and runs quietly as the truck is in operation collecting materials directly into the hopper on top of the packing mechanism in action
