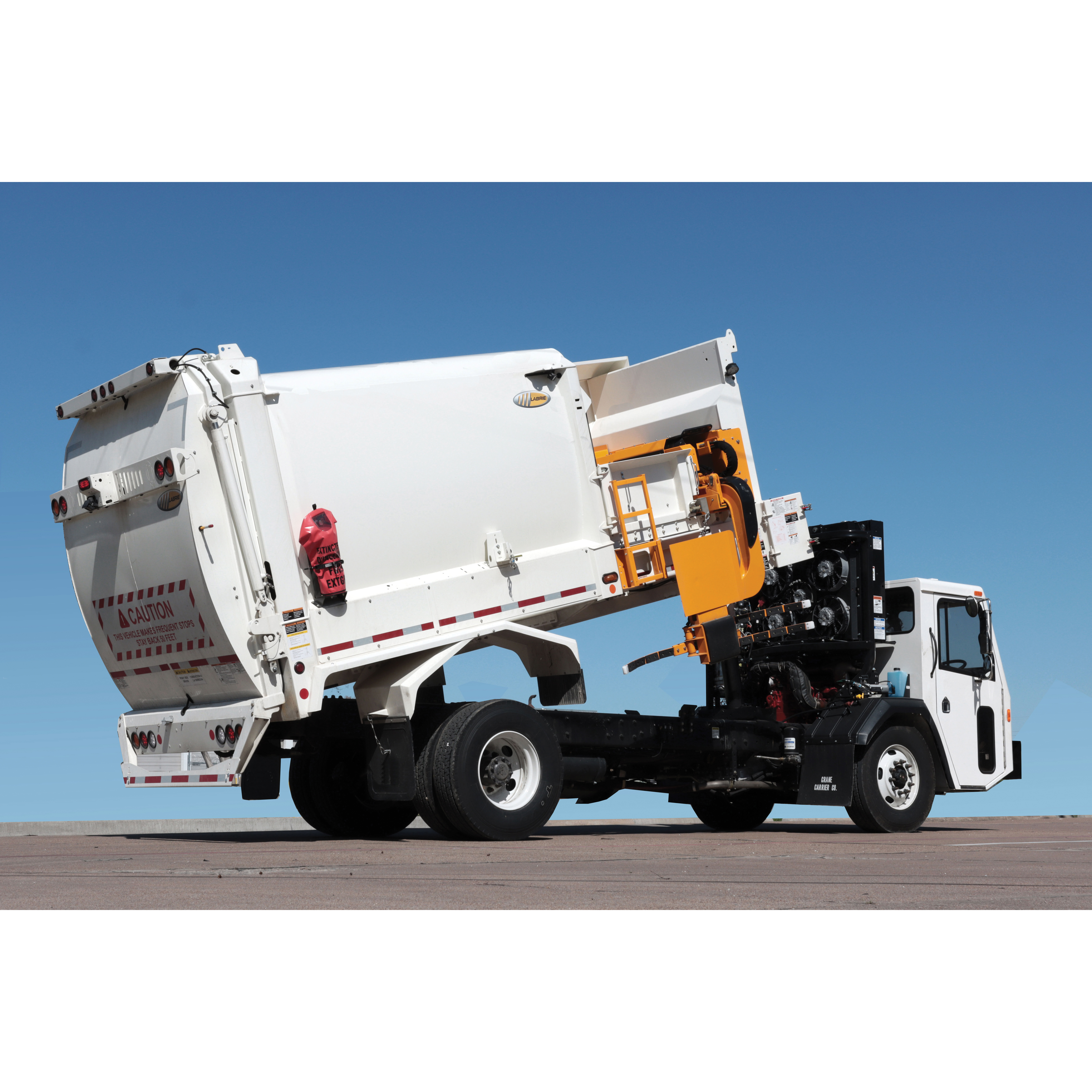

Labrie™ Automizer Helping-Hand Side Loader With Automated Arm, New Equipment, CNG, Electric Fuel
This item has special delivery requirements
Please contact Owen Companies to order
| Arm Lift Capacity | : | 400 lb |
| Arm Reach | : | 120 in |
| Automation Level | : | Automated |
| Body Capacity | : | 20 to 37 cu-yd |
| Body Floor Thickness | : | 0.157 in |
| Body Material | : | Steel |
| Body Side Wall Thickness | : | 10 ga |
| Body Type | : | Tapered |
| Compaction Ratio | : | 900 lb/cu-yd |
| Condition | : | New |
| Control Type | : | Joystick, Electric Over Hydraulic |
| Cylinder Specification | : | 4-Stage, 6-1/16 in Bore |
| Dimensions | : | 408 to 474 in L x 243 in W x 201 to 242 in H |
| Ejection Type | : | Tip-to-Dump |
| Fuel Type | : | CNG, Electric |
| Hopper Capacity | : | 4 cu-yd |
| Hopper Style | : | Enclosed |
| Hydraulic Flow Rate | : | 20 gpm |
| Hydraulic Pressure | : | 2250 psi |
| Hydraulic Pump Type | : | Dual Vane |
| Hydraulic Tank Capacity | : | 94 gal |
| Model | : | Automizer Helping-Hand |
| Packing Cycle Time | : | 13 s |
The ultimate combination of our High Efficiency straight frame ASL body, with the smooth and simple Helping Hand™ automated arm. A low load sill, with access door on the curbside for hand-loading access add to this package of unmatched versatility and seamless performance.
Labrie™ Side Loader, Model: Automizer Helping-Hand, New Condition, CNG, Electric Fuel, 20 to 37 cu-yd Body Capacity, 4 cu-yd Hopper Capacity, Compaction Ratio: 900 lb/cu-yd, 13 s Packing Cycle Time, 120 in Arm Reach, 400 lb Arm Lift Capacity, 94 gal Hydraulic Tank Capacity, 20 gpm Hydraulic Flow Rate, 2250 psi Hydraulic, Dual Vane Hydraulic Pump, Cylinder Specification: 4-Stage, 6-1/16 in Bore, Steel Body, 0.157 in Body Floor Thickness, 10 ga Body Side Wall Thickness, Tapered Body, Enclosed Hopper Style, Tip-to-Dump Ejection, Joystick, Electric Over Hydraulic Control, Automated Automation Level, 408 to 474 in L x 243 in W x 201 to 242 in H
- THE HELPING-HAND™ ARM - The Helping Hand™ has been designed to be located inside the hopper, reducing the need to compensate for torsion stress, like larger offset designs. This mounting position allows us to retain the enclosed hopper feature and its associated benefits. Durability and lowest total cost of ownership will be yours with the Helping Hand™
- EASY, SAFE 1-MAN OPERATION - The Automizer Helping-Hand™ offers versatile operation with multiple driving configurations, enabling efficient one-man operation. Stand-up drive positions are available on either or both sides of the truck for added convenience and safety
- PROVEN TAPERED BODY - The rounded and tapered shape of the body sides and roof increases the compaction ratio by retaining material at the back of the body. This also makes for a smooth unloading process, even at the highest compaction ratio
- EV OR CNG POWERED - The need for alternative energy is real. Meet that need with Labrie's proprietary CNG system or seamless integration to a Battery-Electric chassis. For thoroughly engineered alternative energy solutions, the answer is always Labrie
- 20 cu-yd to 37 cu-yd body sizes available
- Fully Integrated Labrie CNG systems - roof, tailgate and back of cab mount - 50 to 100 DGE available
- Onboard diagnostic tools
- Single piece body walls
- Increased sump volume
