| Arm Lift Capacity | : | 550 lb |
| Arm Reach | : | 149-1/2 in |
| Automation Level | : | Automated |
| Body Capacity | : | 15 to 37 cu-yd |
| Body Floor Thickness | : | 0.157 in |
| Body Material | : | Steel |
| Body Side Wall Thickness | : | 10 ga |
| Body Type | : | Tapered |
| Compaction Ratio | : | 850 lb/cu-yd |
| Condition | : | New |
| Control Type | : | Joystick, Electric Over Hydraulic |
| Cylinder Specification | : | 4-Stage, 6-1/16 in Bore |
| Dimensions | : | 380 to 474 in L x 238 in W x 182 to 242 in H |
| Divisions | : | JR |
| Divisions | : | RELIANCE |
| Ejection Type | : | Full Eject |
| Fuel Type | : | CNG, Electric |
| Hopper Capacity | : | 6.5 cu-yd |
| Hydraulic Flow Rate | : | 20 gpm |
| Hydraulic Pressure | : | 3000 psi |
| Hydraulic Pump Type | : | Dual Vane |
| Hydraulic Tank Capacity | : | 84 to 94 gal |
| Model | : | Automizer Alley-Hand |
| Packing Cycle Time | : | 14 s |

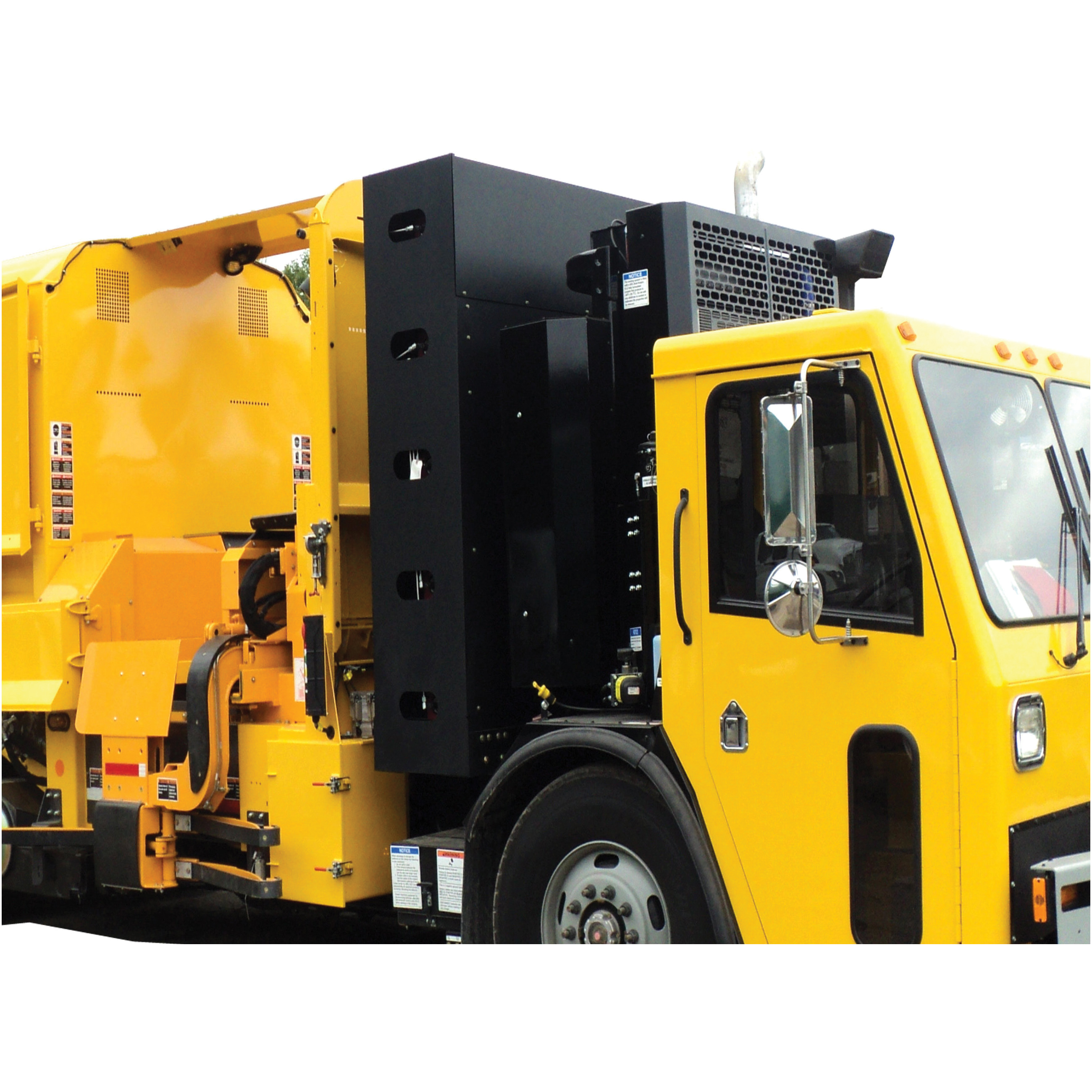

The Automizer has been the benchmark for productive side loaders since its inception, and Labrie™ has paired this time-tested body with the all-new Alley-Hand™ arm for a combination that will leave no carts behind in tight spaces or long reaches.
Labrie™ Side Loader, Model: Automizer Alley-Hand, New Condition, CNG, Electric Fuel, 15 to 37 cu-yd Body Capacity, 6.5 cu-yd Hopper Capacity, Compaction Ratio: 850 lb/cu-yd, 14 s Packing Cycle Time, 149-1/2 in Arm Reach, 550 lb Arm Lift Capacity, 84 to 94 gal Hydraulic Tank Capacity, 20 gpm Hydraulic Flow Rate, 3000 psi Hydraulic, Dual Vane Hydraulic Pump, Cylinder Specification: 4-Stage, 6-1/16 in Bore, Steel Body, 0.157 in Body Floor Thickness, 10 ga Body Side Wall Thickness, Tapered Body, Full Eject Ejection, Joystick, Electric Over Hydraulic Control, Automated Automation Level, 380 to 474 in L x 238 in W x 182 to 242 in H

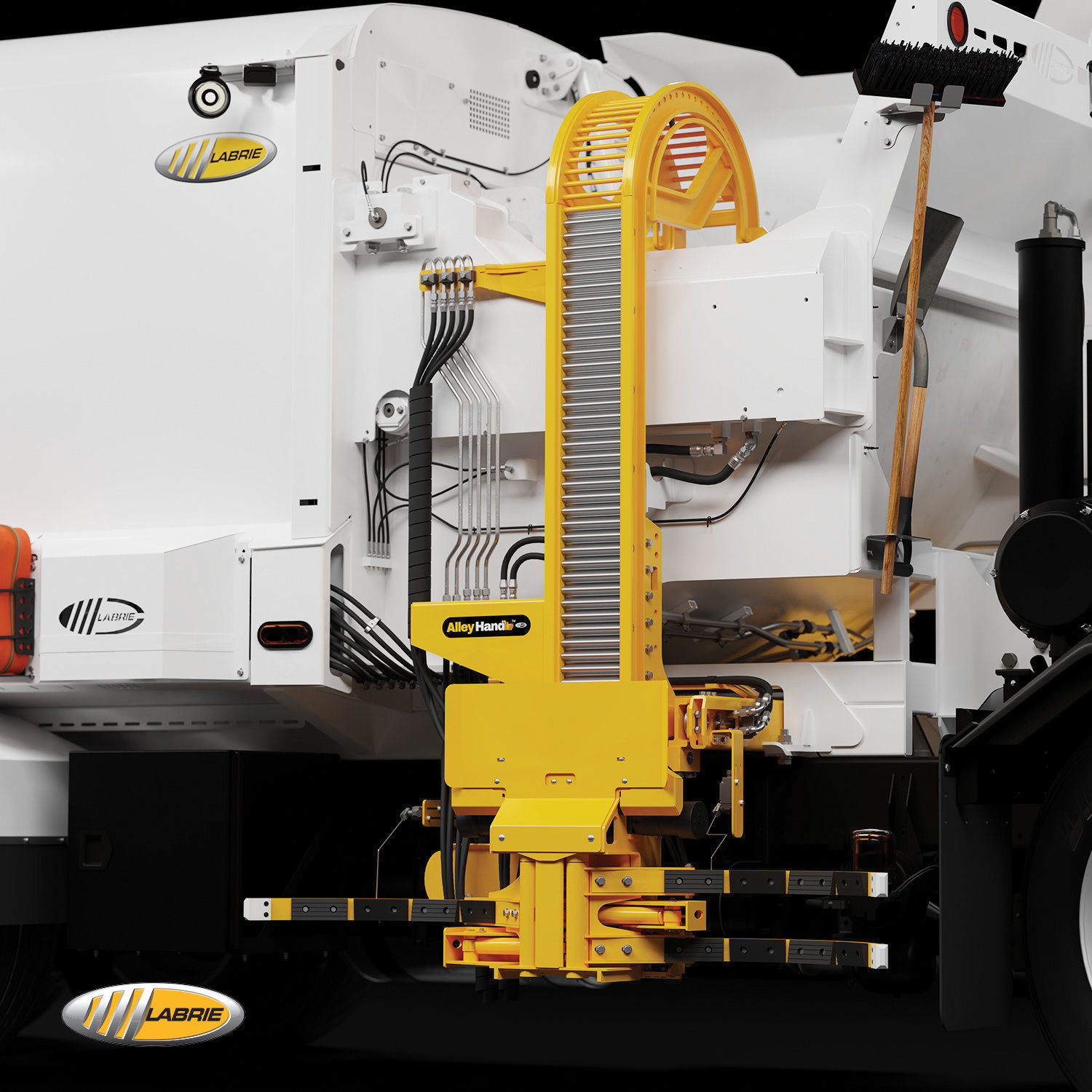

- The Alley-Hand™ ARM - The premier side loader in the industry comes with a stronger Zero Kick-Out Arm solution. The Alley-Hand™ is the perfect match for tight areas, with a 12-foot reach and a 550-pound lifting capacity, providing exceptional performance
