| Body Material | : | Aluminum |
| Connection Type | : | NPSF |
| Dimensions | : | 2-3/4 in H x 3/4 in W x 1-1/4 in D |
| Flow Rate | : | 283 Lpm |
| Media | : | Air/Inert Gas/Vacuum |
| Nominal Size | : | 1/8 in |
| Number of Ports/Ways | : | 4 |
| Number of Positions | : | 2 |
| Orifice Size | : | 0.088 in |
| Power Rating | : | 4.5 W |
| Pressure Rating | : | 125 psi |
| Seal Material | : | NBR |
| Series | : | 410 Series |
| Temperature Rating | : | 32 to 125 deg F |
| Voltage Rating | : | 12 V |
1/8 NPSF, 19 mm wide 410 Series is compact, high flow and low cost. Direct acting, the 4-port solenoid valve can operate reliably from vacuum 125psi. Multi-purpose. Pipe valve as normally closed, normally open, diverter or selector 3-port valve functions, or as 4-way. Ideal for reliable control of double acting cylinders up to 1-1/4" bore (32mm). Consider optional exhaust flow control (code 70). Produced to Humphrey's industry leading, stringent leakage requirements. Made in USA. RoHS compliant.

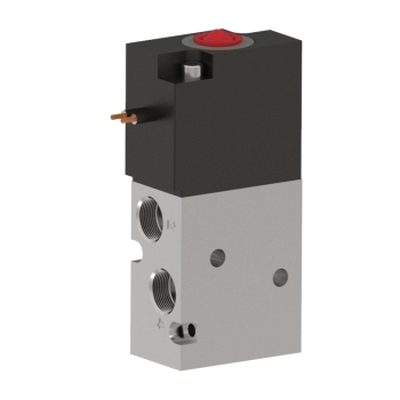

Humphrey® Solenoid Valve, 410 Series, 1/8 in Nominal, Connection Type: NPSF, 125 psi, 283 Lpm Flow Rate, Air/Inert Gas/Vacuum Media, 0.088 in Orifice, 12 V, 4.5 W, 2 Positions, Number of Ports/Ways: 4, Aluminum Body, NBR Seal, 32 to 125 deg F, 2-3/4 in H x 3/4 in W x 1-1/4 in D
