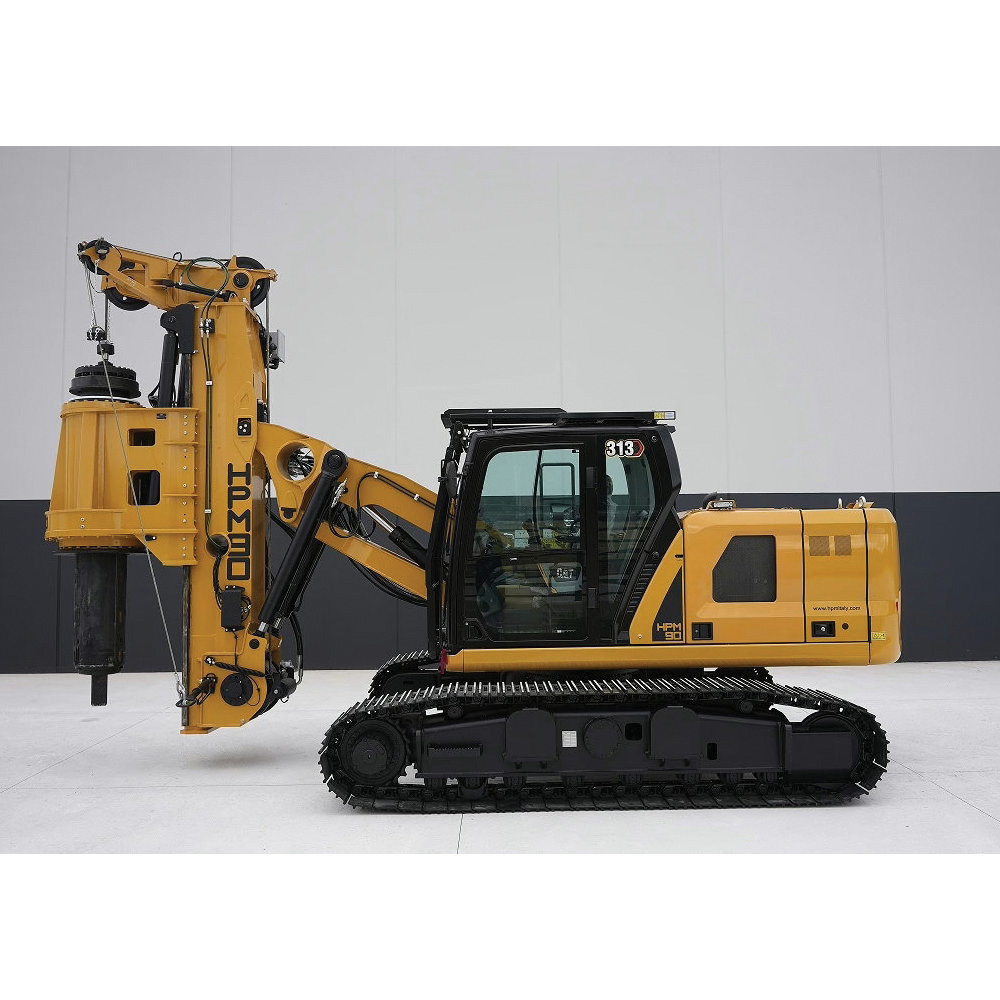

HPM HPM90 Short Mast Drill Rig, New Equipment, 108 hp, 34 ft D Drill, 5 ft Dia Drilling

Manufacturer: HPM ITALY
Brand: HPM
Item Number: 90 Short Mast
MPN: HPM90 Short Mast
CPN:
Model #: HPM90 Short Mast
    • Add-On Options Available      :      Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, FOPS Cab, Long Mast Kit, Remote Control, Self-Erecting Counterweight, Universal Casing Joint, Walking Platform
    Auxiliary Winch Capacity      :      6750 lb
    Base Machine Model      :      313
    Condition      :      New
    Control Type      :      Remote
    Crowd Push/Pull Force      :      63000 lb
    Crowd Stroke      :      4 ft 5 in
    Crowd Type      :      Cylinder
    Dimensions      :      29 ft L x 8 ft 2 in W x 10 ft 6 in H
    Discharge Speed      :      50 to 125 rpm
    Divisions      :      BLAZE
    Drilling Depth      :      34 ft
    Drilling Diameter      :      5 ft
    Engine Displacement      :      220 cu-in
    Engine Horsepower      :      108 hp
    Engine Manufacturer      :      CAT®
    Fuel Tank Capacity      :      68.2 gal
    Fuel Type      :      Diesel
    Main Winch Capacity      :      27000 lb
    Mast Configuration      :      Short
    Model      :      90 Short Mast
    Operating Weight      :      52500 lb
    Rotary Effective Torque      :      66400 ft-lb
    Rotary Nominal Torque      :      77500 ft-lb
    Standard Kelly Bar      :      6/34
    Undercarriage Type      :      Track
    Working Speed      :      8 to 28 rpm

    The smallest in the HPM's range. While maintaining a powerful and robust look, the HPM90 is a particularly agile machine. It moves quick and it's also easy to transport with its 53,000 lbs transport weight. Particularly used on utility works where space and overhead height are limited.

    HPM Drill Rig, Model: 90 Short Mast, New Condition, Base Machine Model: 313, 108 hp Engine Horsepower, CAT® Engine Manufacturer, 220 cu-in Engine Displacement, Short Mast Configuration, 77500 ft-lb Rotary Nominal Torque, 66400 ft-lb Rotary Effective Torque, 8 to 28 rpm Working Speed, 50 to 125 rpm Discharge Speed, 34 ft Drilling Depth, 5 ft Drilling Diameter, 27000 lb Main Winch Capacity, 6750 lb Auxiliary Winch Capacity, Cylinder Crowd, 63000 lb Crowd Push/Pull Force, 4 ft 5 in Crowd Stroke, 52500 lb Operating Weight, 6/34 Standard Kelly Bar, Diesel Fuel, 68.2 gal Fuel Tank Capacity, Track Undercarriage, Remote Control, Add-On Options Available: Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, FOPS Cab, Long Mast Kit, Remote Control, Self-Erecting Counterweight, Universal Casing Joint, Walking Platform, 29 ft L x 8 ft 2 in W x 10 ft 6 in H

      Long Mast Configuration - By adding mast extension and longer kelly bar, this machine can be quickly converted into a standard height machine, allowing it to perform greater depths and be used for different drilling applications, such as CFA, soil mixing, Displacement, etc
