HPM HPM90 Drill Rig, New Equipment, 108 hp, 94 ft D Drill, 5 ft Dia Drilling

Manufacturer: HPM ITALY
Brand: HPM
Item Number: 90
MPN: HPM90
CPN:
Model #: HPM90
    • Rental AVAILABLE
    Add-On Options Available      :      Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, CFA Kit, FOPS Cab, Remote Control, Self-Erecting Counterweight, Short Mast Kit, Universal Casing Joint
    Auxiliary Winch Capacity      :      6750 lb

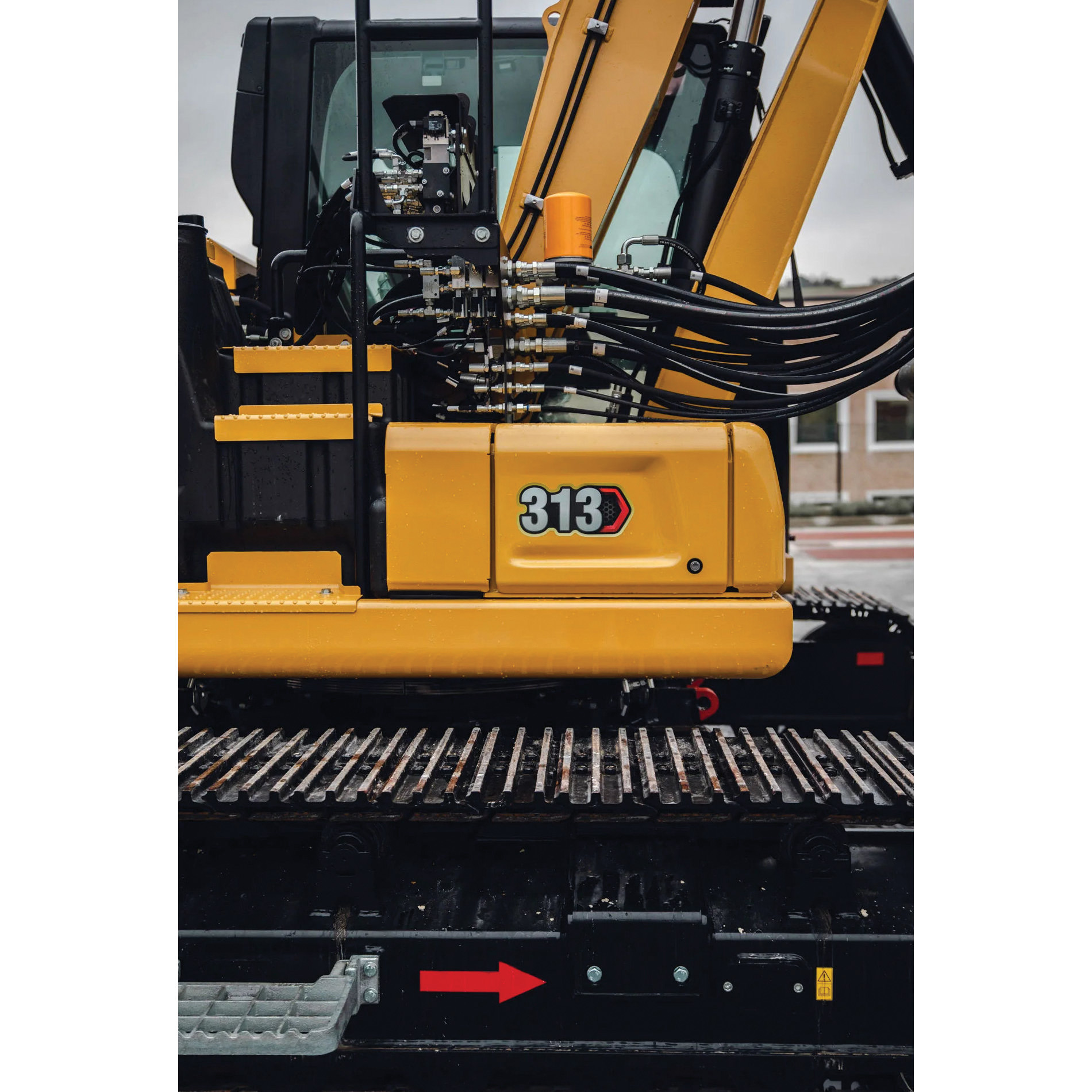

    Base Machine Model      :      313
    Condition      :      New
    Control Type      :      Remote
    Crowd Push/Pull Force      :      56000 lb
    Crowd Stroke      :      4 ft 5 in
    Crowd Type      :      Cylinder
    Dimensions      :      32 ft L x 8 ft 2 in W x 11 ft 4 in H
    Discharge Speed      :      50 to 125 rpm
    Divisions      :      BLAZE
    Drilling Depth      :      94 ft
    Drilling Diameter      :      5 ft
    Engine Displacement      :      220 cu-in
    Engine Horsepower      :      108 hp
    Engine Manufacturer      :      CAT®
    Fuel Tank Capacity      :      68.2 gal
    Fuel Type      :      Diesel
    Main Winch Capacity      :      27000 lb
    Mast Configuration      :      Standard
    Model      :      90
    Operating Weight      :      54000 lb
    Rotary Effective Torque      :      66400 ft-lb
    Rotary Nominal Torque      :      77500 ft-lb
    Standard Kelly Bar      :      5/94
    Undercarriage Type      :      Track
    Working Speed      :      8 to 28 rpm

    The HPM90 is a small powerhouse and is easy to move with its light transportation weight. This new drill rig has everything you need to get your job done. It's agile without losing out on performance with a 77,500 foot lbs rotary torque. These characteristics make it a versatile machine for any type of construction site.

    HPM Drill Rig, Model: 90, New Condition, Base Machine Model: 313, 108 hp Engine Horsepower, CAT® Engine Manufacturer, 220 cu-in Engine Displacement, Standard Mast Configuration, 77500 ft-lb Rotary Nominal Torque, 66400 ft-lb Rotary Effective Torque, 8 to 28 rpm Working Speed, 50 to 125 rpm Discharge Speed, 94 ft Drilling Depth, 5 ft Drilling Diameter, 27000 lb Main Winch Capacity, 6750 lb Auxiliary Winch Capacity, Cylinder Crowd, 56000 lb Crowd Push/Pull Force, 4 ft 5 in Crowd Stroke, 54000 lb Operating Weight, 5/94 Standard Kelly Bar, Diesel Fuel, 68.2 gal Fuel Tank Capacity, Track Undercarriage, Remote Control, Add-On Options Available: Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, CFA Kit, FOPS Cab, Remote Control, Self-Erecting Counterweight, Short Mast Kit, Universal Casing Joint, 32 ft L x 8 ft 2 in W x 11 ft 4 in H

      Low-headroom Configuration - This HPM can be quickly and safely converted in Short Mast configuration allowing it to work in limited heights job sites, such as under bridges or below power lines
