| Add-On Options Available | : | Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, CFA Kit, FOPS Cab, Remote Control, Self-Erecting Counterweight, Short Mast Kit, Universal Casing Joint |
| Auxiliary Winch Capacity | : | 6750 lb |
| Base Machine Model | : | 313 |
| Condition | : | New |
| Control Type | : | Remote |
| Crowd Push/Pull Force | : | 56000 lb |
| Crowd Stroke | : | 4 ft 5 in |
| Crowd Type | : | Cylinder |
| Dimensions | : | 32 ft L x 8 ft 2 in W x 11 ft 4 in H |
| Discharge Speed | : | 50 to 125 rpm |
| Drilling Depth | : | 94 ft |
| Drilling Diameter | : | 5 ft |
| Engine Displacement | : | 220 cu-in |
| Engine Horsepower | : | 108 hp |
| Engine Manufacturer | : | CAT® |
| Fuel Tank Capacity | : | 68.2 gal |
| Fuel Type | : | Diesel |
| Main Winch Capacity | : | 27000 lb |
| Mast Configuration | : | Standard |
| Model | : | 90 |
| Operating Weight | : | 54000 lb |
| Rotary Effective Torque | : | 66400 ft-lb |
| Rotary Nominal Torque | : | 77500 ft-lb |
| Standard Kelly Bar | : | 5/94 |
| Undercarriage Type | : | Track |
| Working Speed | : | 8 to 28 rpm |

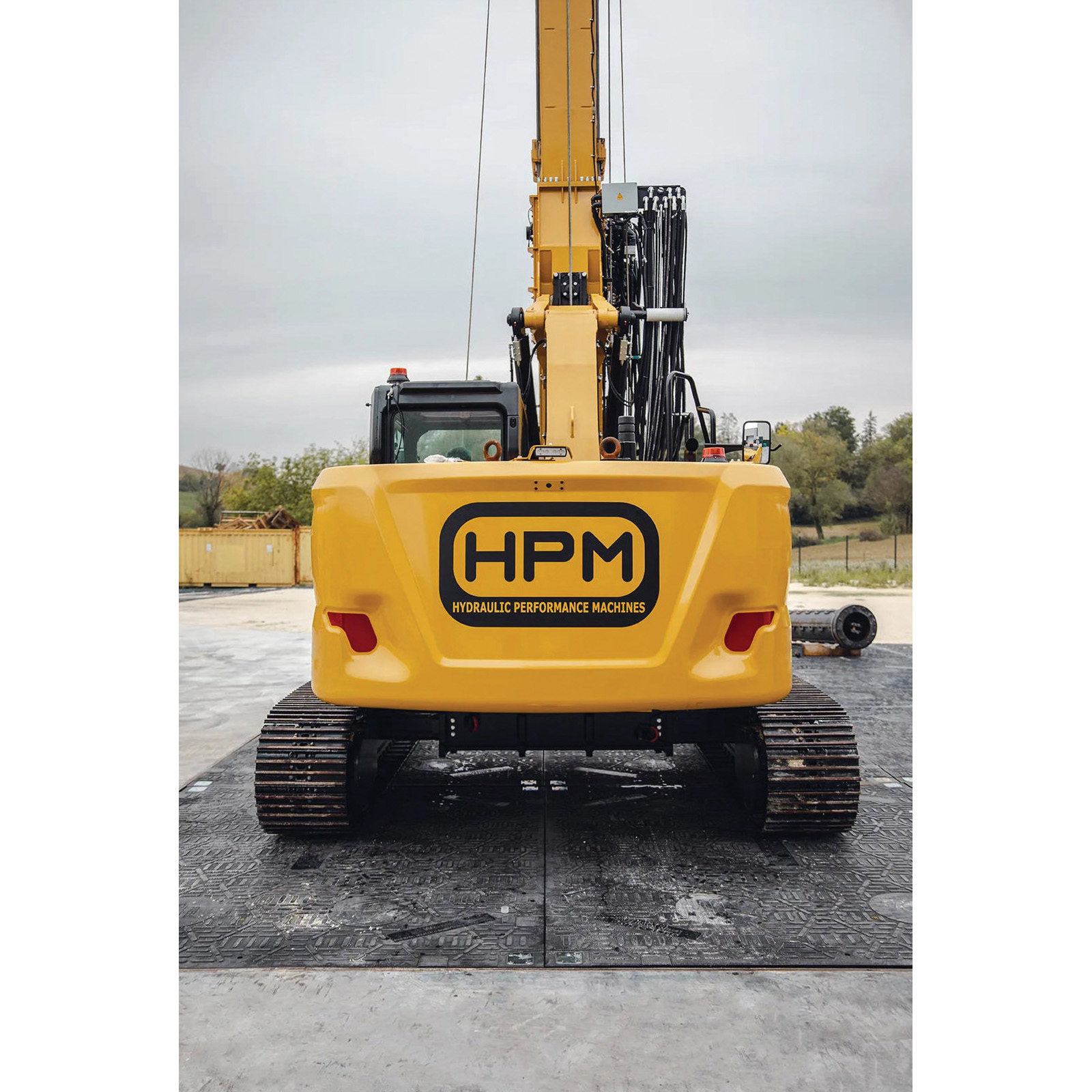

The HPM90 is a small powerhouse and is easy to move with its light transportation weight. This new drill rig has everything you need to get your job done. It's agile without losing out on performance with a 77,500 foot lbs rotary torque. These characteristics make it a versatile machine for any type of construction site.
HPM Drill Rig, Model: 90, New Condition, Base Machine Model: 313, 108 hp Engine Horsepower, CAT® Engine Manufacturer, 220 cu-in Engine Displacement, Standard Mast Configuration, 77500 ft-lb Rotary Nominal Torque, 66400 ft-lb Rotary Effective Torque, 8 to 28 rpm Working Speed, 50 to 125 rpm Discharge Speed, 94 ft Drilling Depth, 5 ft Drilling Diameter, 27000 lb Main Winch Capacity, 6750 lb Auxiliary Winch Capacity, Cylinder Crowd, 56000 lb Crowd Push/Pull Force, 4 ft 5 in Crowd Stroke, 54000 lb Operating Weight, 5/94 Standard Kelly Bar, Diesel Fuel, 68.2 gal Fuel Tank Capacity, Track Undercarriage, Remote Control, Add-On Options Available: Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, CFA Kit, FOPS Cab, Remote Control, Self-Erecting Counterweight, Short Mast Kit, Universal Casing Joint, 32 ft L x 8 ft 2 in W x 11 ft 4 in H
- Low-headroom Configuration - This HPM can be quickly and safely converted in Short Mast configuration allowing it to work in limited heights job sites, such as under bridges or below power lines
- Automatic Functions - Automatic functions allow the operator to reduce rig-up time and get the most in productivity. With a push of a button, the operator can make use of automatic functions, including: Verticality of the mast, Automatic Rig-up, Automatic return to drilling point and rotary auto drive
- Drilling Cruise Control - The HPM software includes the enabling of the drilling cruise control. When the system is enabled, the operator can preselect the rotary gear so it's speed. With a push of a button the system can be activated and the operator can also lock the crowd pressure for a complete automatic drilling mode. Safety systems can disable the function immediately
- Comfort Cabin - The HPM cabin is equipped with a comfy and wide adjustable seat. The standard automatic air conditioning keeps the cabin at the ideal temperature throughout the day. All machine interfaces are ergonomically positioned and designed for optimum control and efficiency. The easy accessible keyboards allow the operator to quickly get the rig ready to drill
- Expandable Tracks - The retractable undercarriage allows to reduce width of the machine for transport phases, reducing hauling related costs and avoiding transport permits. Once expanded, the undercarriage provides great stability at any working radius for a 360 deg drilling capability
- Remote Control - Increase safety and flexibility when loading or unloading the equipment. The operator can make use of different viewing angles while moving the machine from outside the cabin. Having a complete view of the rig during these phases allows the operator to make sure that hoses, wirings and wire ropes are safely positioned. Drilling functions are enabled through the remote control for a safe service and maintenance of the rig
