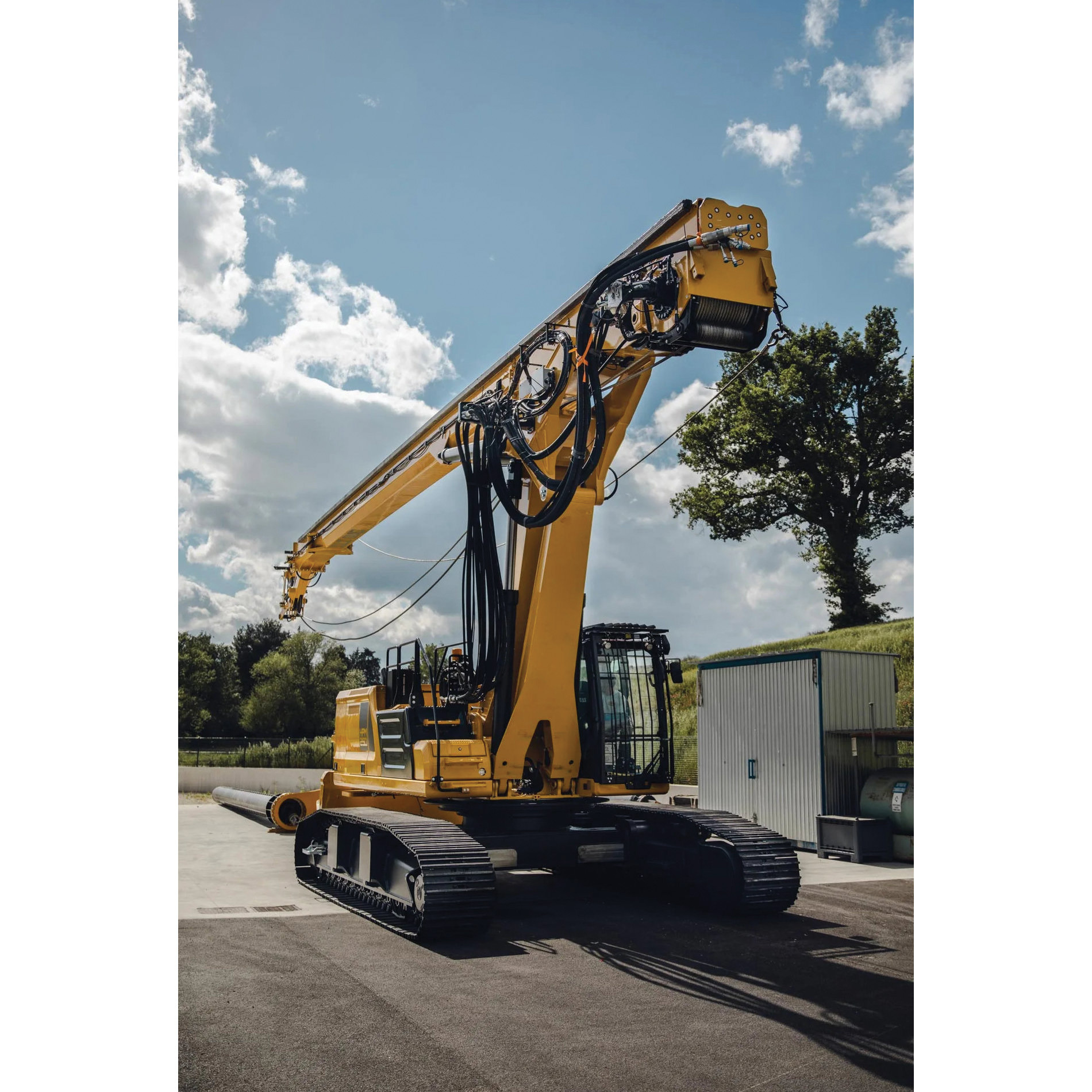

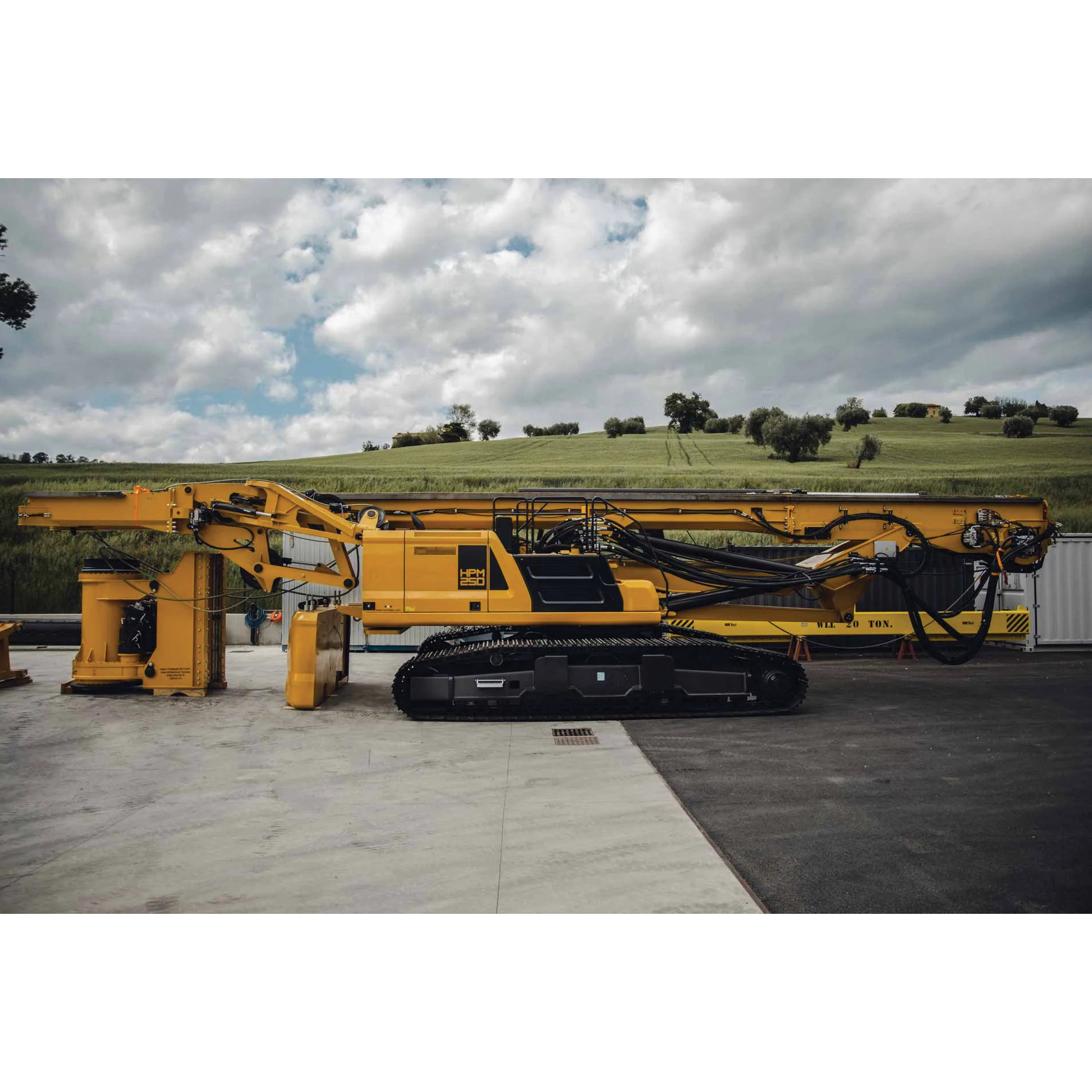

HPM HPM250 Drill Rig, New Equipment, 456 hp, 160 ft D Drill, 10 ft Dia Drilling

Building on our cutting-edge technology, the HPM250 standard mast maintains the simplicity of the smaller models while proving outstanding drilling performances. Specific highlights of the HPM250 HT include high torque rotary, efficiency and performance, ease of transportation and short rig-up time. A long lifetime equipment to make the job done.

HPM Drill Rig, Model: 250, New Condition, Base Machine Model: 340, 456 hp Engine Horsepower, CAT® Engine Manufacturer, 568 cu-in Engine Displacement, Standard Mast Configuration, 273000 ft-lb Rotary Nominal Torque, 232000 ft-lb Rotary Effective Torque, 9 to 24 rpm Working Speed, 50 to 120 rpm Discharge Speed, 160 ft Drilling Depth, 10 ft Drilling Diameter, 51700 lb Main Winch Capacity, 26000 lb Auxiliary Winch Capacity, Cylinder Crowd, 90000 lb Crowd Push/Pull Force, 13 ft 3 in Crowd Stroke, 185000 lb Operating Weight, 4/160 Standard Kelly Bar, Diesel Fuel, 158.5 gal Fuel Tank Capacity, Track Undercarriage, Remote Control, Add-On Options Available: Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, CFA Kit, Remote Control, Self-Erecting Counterweight, Short Mast Kit, Universal Casing Joint, Walking Platform, Winch Crowd System, 54 ft 8 in L x 9 ft 10 in W x 11 ft 10 in H
