| Add-On Options Available | : | Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, CFA Kit, Remote Control, Self-Erecting Counterweight, Short Mast Kit, Universal Casing Joint, Walking Platform, Winch Crowd System |
| Auxiliary Winch Capacity | : | 26000 lb |
| Base Machine Model | : | 340 |
| Condition | : | New |
| Control Type | : | Remote |
| Crowd Push/Pull Force | : | 90000 lb |
| Crowd Stroke | : | 13 ft 3 in |
| Crowd Type | : | Cylinder |
| Dimensions | : | 54 ft 8 in L x 9 ft 10 in W x 11 ft 10 in H |
| Discharge Speed | : | 50 to 120 rpm |
| Drilling Depth | : | 160 ft |
| Drilling Diameter | : | 10 ft |
| Engine Displacement | : | 568 cu-in |
| Engine Horsepower | : | 456 hp |
| Engine Manufacturer | : | CAT® |
| Fuel Tank Capacity | : | 158.5 gal |
| Fuel Type | : | Diesel |
| Main Winch Capacity | : | 51700 lb |
| Mast Configuration | : | Standard |
| Model | : | 250 |
| Operating Weight | : | 185000 lb |
| Rotary Effective Torque | : | 232000 ft-lb |
| Rotary Nominal Torque | : | 273000 ft-lb |
| Standard Kelly Bar | : | 4/160 |
| Undercarriage Type | : | Track |
| Working Speed | : | 9 to 24 rpm |
Building on our cutting-edge technology, the HPM250 standard mast maintains the simplicity of the smaller models while proving outstanding drilling performances. Specific highlights of the HPM250 HT include high torque rotary, efficiency and performance, ease of transportation and short rig-up time. A long lifetime equipment to make the job done.
HPM Drill Rig, Model: 250, New Condition, Base Machine Model: 340, 456 hp Engine Horsepower, CAT® Engine Manufacturer, 568 cu-in Engine Displacement, Standard Mast Configuration, 273000 ft-lb Rotary Nominal Torque, 232000 ft-lb Rotary Effective Torque, 9 to 24 rpm Working Speed, 50 to 120 rpm Discharge Speed, 160 ft Drilling Depth, 10 ft Drilling Diameter, 51700 lb Main Winch Capacity, 26000 lb Auxiliary Winch Capacity, Cylinder Crowd, 90000 lb Crowd Push/Pull Force, 13 ft 3 in Crowd Stroke, 185000 lb Operating Weight, 4/160 Standard Kelly Bar, Diesel Fuel, 158.5 gal Fuel Tank Capacity, Track Undercarriage, Remote Control, Add-On Options Available: Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, CFA Kit, Remote Control, Self-Erecting Counterweight, Short Mast Kit, Universal Casing Joint, Walking Platform, Winch Crowd System, 54 ft 8 in L x 9 ft 10 in W x 11 ft 10 in H

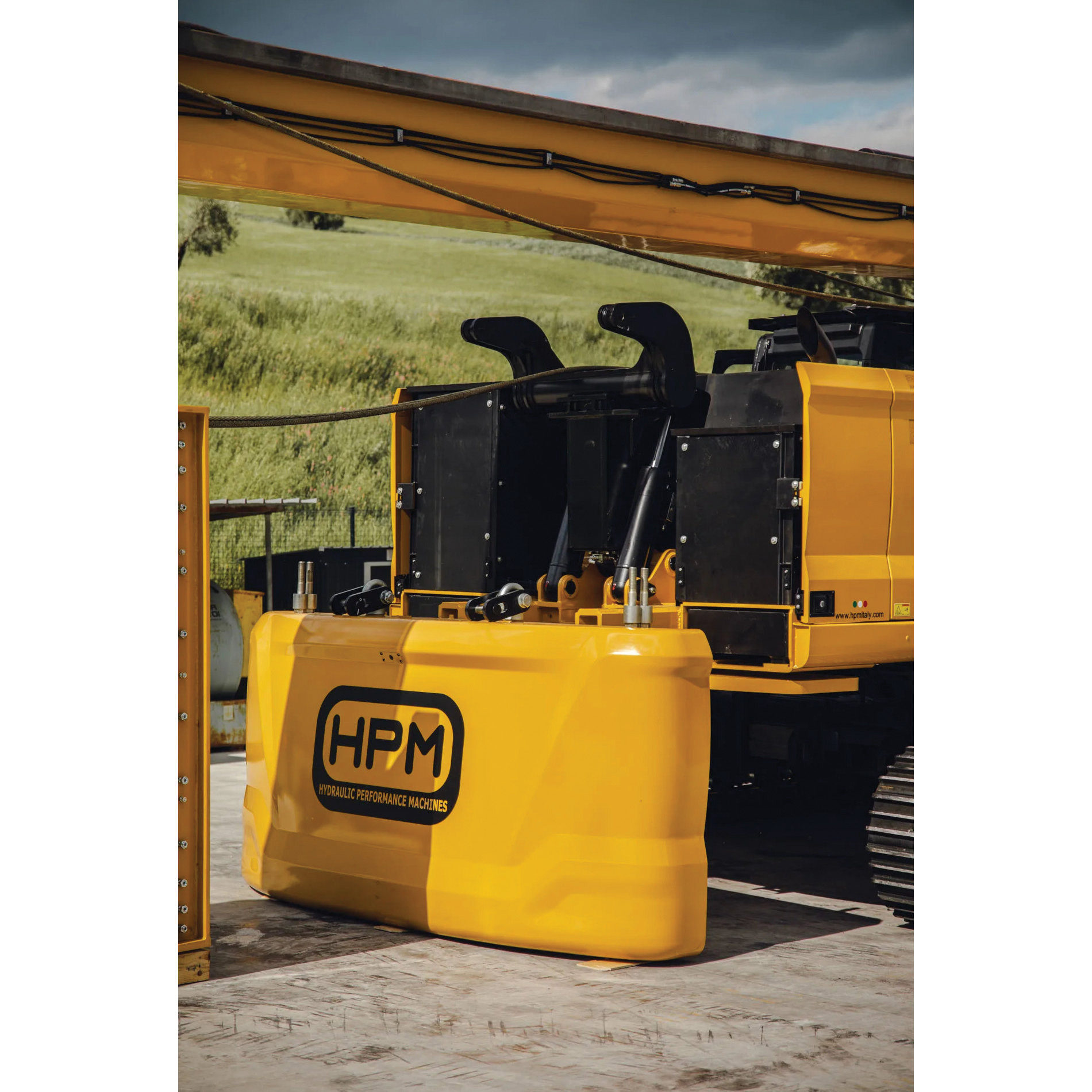

- Counterweight Lifting System - This HPM can be assembled by itself without the need of assistant cranes. This patented feature gives contractors the ability to quickly and easily reduce the overall weight of the rig during the transport phase, making it possible to utilise a standard-sized trailer and reduce then hauling costs and avoids oversize/overweight permits
- Low-headroom Configuration - This HPM can be quickly and safely converted in Short Mast configuration allowing it to work in limited heights job sites, such as under bridges or below power lines
- Automatic Functions - Automatic functions allow the operator to reduce rig-up time and get the most in productivity. With a push of a button, the operator can make use of automatic functions, including: Verticality of the mast, Automatic Rig-up, Automatic return to drilling point and rotary auto drive
- Drilling Cruise Control - The HPM software includes the enabling of the drilling cruise control. When the system is enabled, the operator can preselect the rotary gear so it's speed. With a push of a button the system can be activated and the operator can also lock the crowd pressure for a complete automatic drilling mode. Safety systems can disable the function immediately
- Auxiliary House Lock - The operator can make the full use of the whole torque without having the machine swinging from side to side. This patented feature can be automatic or enabled through a button on the joystick. The enabling of the brake offers increased comfort for the operator as the vibrations when drilling on rock are reduced to almost zero
- Comfort Cabin - The HPM cabin is equipped with a comfy and wide adjustable seat. The standard automatic air conditioning keeps the cabin at the ideal temperature throughout the day. All machine interfaces are ergonomically positioned and designed for optimum control and efficiency. The easy accessible keyboards allow the operator to quickly get the rig ready to drill
- Expandable Tracks - The retractable undercarriage allows to reduce width of the machine for transport phases, reducing hauling related costs and avoiding transport permits. Once expanded, the undercarriage provides great stability at any working radius for a 360 deg drilling capability
- Remote Control - Increase safety and flexibility when loading or unloading the equipment. The operator can make use of different viewing angles while moving the machine from outside the cabin. Having a complete view of the rig during these phases allows the operator to make sure that hoses, wirings and wire ropes are safely positioned. Drilling functions are enabled through the remote control for a safe service and maintenance of the rig
