| Add-On Options Available | : | Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, CFA Kit, Low Headroom Kit, Remote Control, Self-Erecting Counterweight, Universal Casing Joint, Walking Platform, Winch Crowd System |
| Auxiliary Winch Capacity | : | 26000 lb |
| Base Machine Model | : | 330 |
| Condition | : | New |
| Control Type | : | Remote |
| Crowd Push/Pull Force | : | 70000 lb |
| Crowd Stroke | : | 14 ft 6 in |
| Crowd Type | : | Cylinder |
| Dimensions | : | 54 ft 10 in L x 9 ft 10 in W x 11 ft 6 in H |
| Discharge Speed | : | 50 to 120 rpm |
| Drilling Depth | : | 120 ft |
| Drilling Diameter | : | 8 ft |
| Engine Displacement | : | 428 cu-in |
| Engine Horsepower | : | 275 hp |
| Engine Manufacturer | : | CAT® |
| Fuel Tank Capacity | : | 125.2 gal |
| Fuel Type | : | Diesel |
| Main Winch Capacity | : | 51700 lb |
| Mast Configuration | : | Standard |
| Model | : | 200 |
| Operating Weight | : | 128300 lb |
| Rotary Effective Torque | : | 185000 ft-lb |
| Rotary Nominal Torque | : | 217500 ft-lb |
| Standard Kelly Bar | : | 4/120 |
| Undercarriage Type | : | Track |
| Working Speed | : | 9 to 24 rpm |
Correct, we don't think there is much to add. But since we have to fill the page we will also say that it's modulr design allow you to convert this rig in different configurations, including short mast - 11' version. The great stability offered by the expandable undercarriage will also allow to customize the rig in order to install a Crowd Winch System, also suitable for CFA.

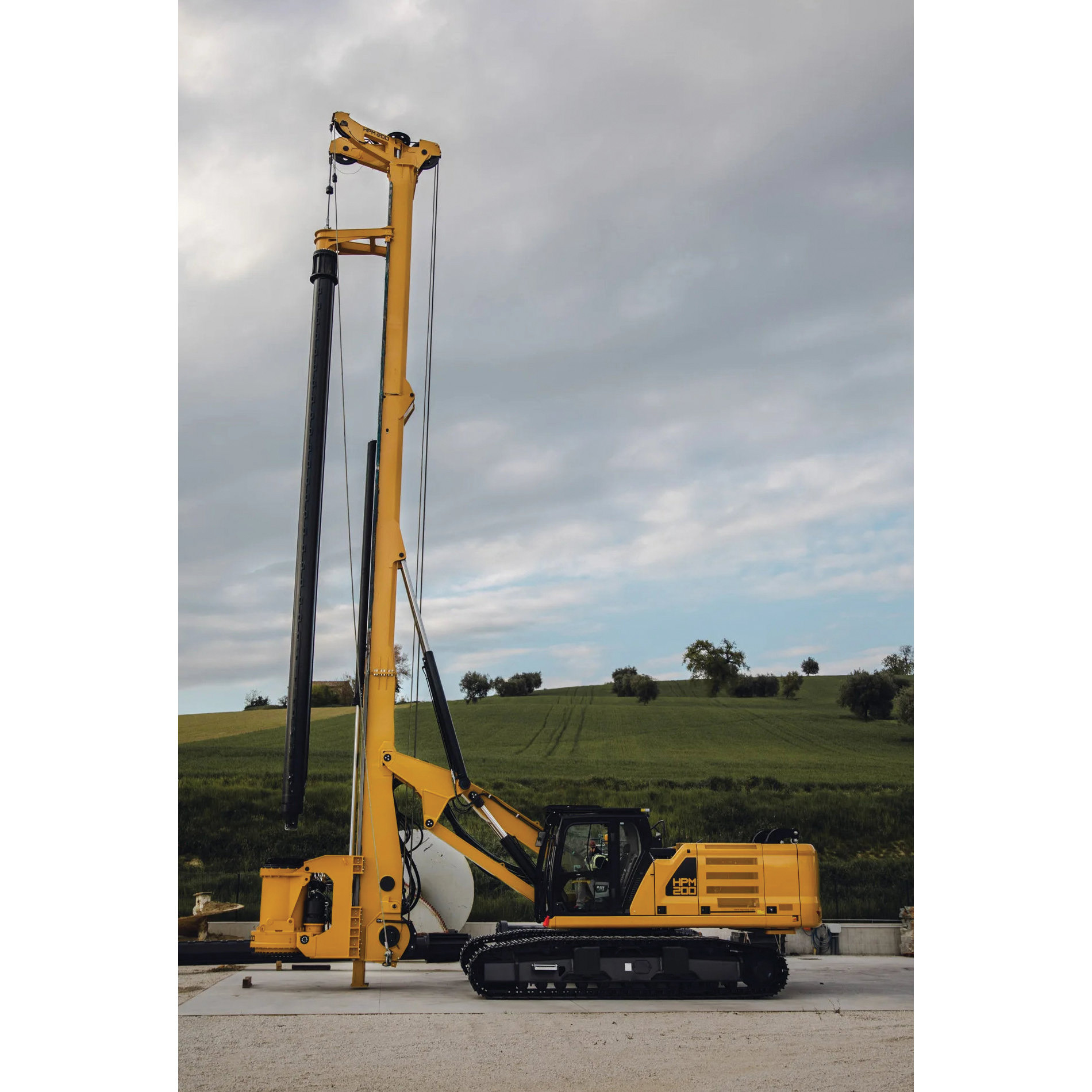

HPM Drill Rig, Model: 200, New Condition, Base Machine Model: 330, 275 hp Engine Horsepower, CAT® Engine Manufacturer, 428 cu-in Engine Displacement, Standard Mast Configuration, 217500 ft-lb Rotary Nominal Torque, 185000 ft-lb Rotary Effective Torque, 9 to 24 rpm Working Speed, 50 to 120 rpm Discharge Speed, 120 ft Drilling Depth, 8 ft Drilling Diameter, 51700 lb Main Winch Capacity, 26000 lb Auxiliary Winch Capacity, Cylinder Crowd, 70000 lb Crowd Push/Pull Force, 14 ft 6 in Crowd Stroke, 128300 lb Operating Weight, 4/120 Standard Kelly Bar, Diesel Fuel, 125.2 gal Fuel Tank Capacity, Track Undercarriage, Remote Control, Add-On Options Available: Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, CFA Kit, Low Headroom Kit, Remote Control, Self-Erecting Counterweight, Universal Casing Joint, Walking Platform, Winch Crowd System, 54 ft 10 in L x 9 ft 10 in W x 11 ft 6 in H
- Remote Control - Increase safety and flexibility when loading or unloading the equipment. The operator can make use of different viewing angles while moving the machine from outside the cabin. Having a complete view of the rig during these phases allows the operator to make sure that hoses, wirings and wire ropes are safely positioned. Drilling functions are enabled through the remote control for a safe service and maintenance of the rig
- Low-headroom Configuration - This HPM can be quickly and safely converted in Short Mast configuration allowing it to work in limited heights job sites, such as under bridges or below power lines
- Automatic Functions - Automatic functions allow the operator to reduce rig-up time and get the most in productivity. With a push of a button, the operator can make use of automatic functions, including: Verticality of the mast, Automatic Rig-up, Automatic return to drilling point and rotary auto drive
- Remote Control - Increase safety and flexibility when loading or unloading the equipment. The operator can make use of different viewing angles while moving the machine from outside the cabin. Having a complete view of the rig during these phases allows the operator to make sure that hoses, wirings and wire ropes are safely positioned. Drilling functions are enabled through the remote control for a safe service and maintenance of the rig
- Rotary Gear System - During the working phase, the operator can choose the right rotary rotation speed, having 10 speeds available. The HPM patented rotary gear control system allows the operator to quickly reach the optimal spin-off speed, with just one click
- Auxiliary House Lock - The operator can make the full use of the whole torque without having the machine swinging from side to side. This patented feature can be automatic or enabled through a button on the joystick. The enabling of the brake offers increased comfort for the operator as the vibrations when drilling on rock are reduced to almost zero
- Comfort Cabin - The HPM cabin is equipped with a comfy and wide adjustable seat. The standard automatic air conditioning keeps the cabin at the ideal temperature throughout the day. All machine interfaces are ergonomically positioned and designed for optimum control and efficiency. The easy accessible keyboards allow the operator to quickly get the rig ready to drill
- Drilling Cruise Control - The HPM software includes the enabling of the drilling cruise control. When the system is enabled, the operator can preselect the rotary gear so it's speed. With a push of a button the system can be activated and the operator can also lock the crowd pressure for a complete automatic drilling mode. Safety systems can disable the function immediately
- Expandable Tracks - The retractable undercarriage allows to reduce width of the machine for transport phases, reducing hauling related costs and avoiding transport permits. Once expanded, the undercarriage provides great stability at any working radius for a 360 deg drilling capability
