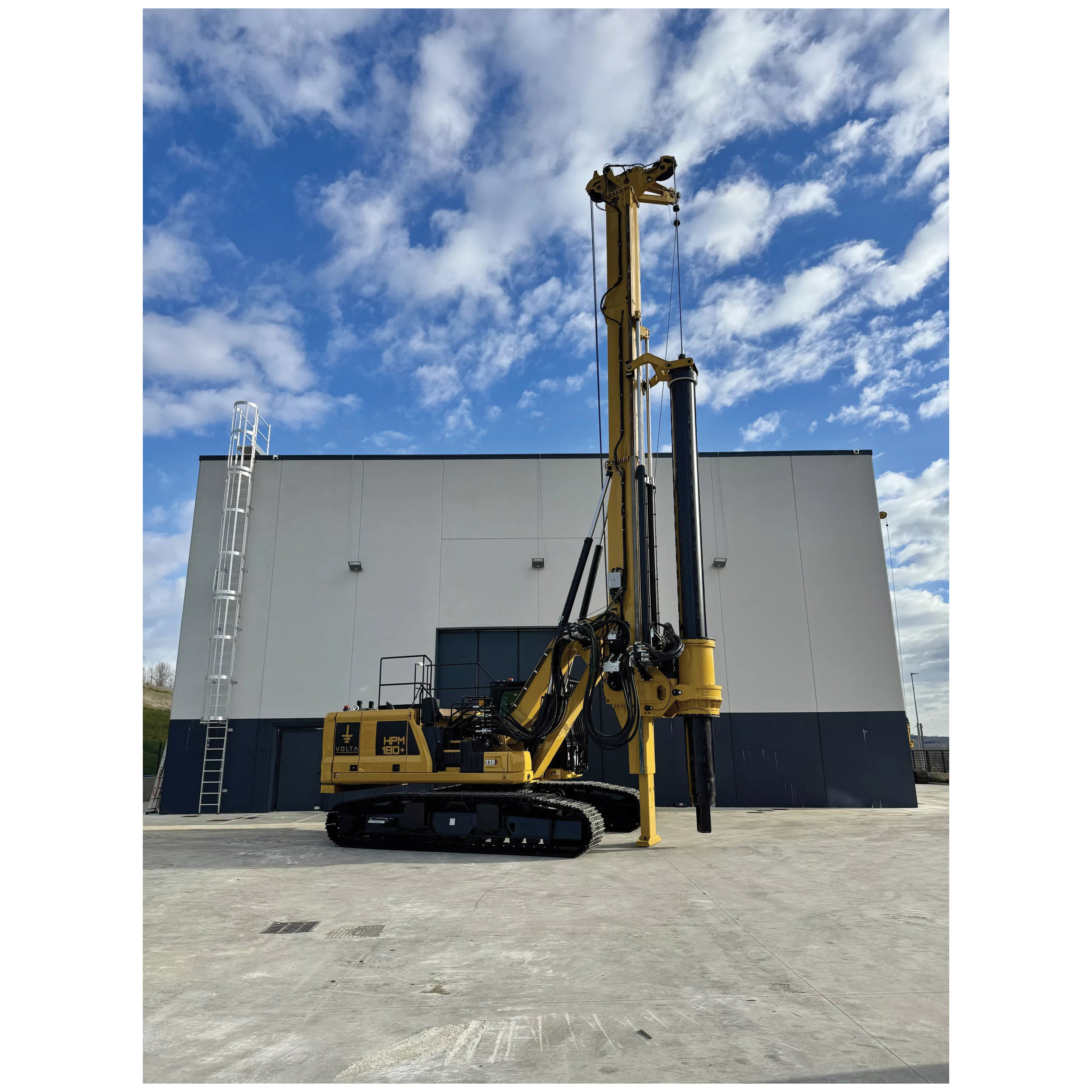

HPM HPM180 Drill Rig, New Equipment, 275 hp, 54 ft D Drill, 6 ft Dia Drilling

Manufacturer: HPM ITALY
Brand: HPM
Item Number: 180
MPN: HPM180
CPN:
Model #: HPM180
    • Rental AVAILABLE
    Add-On Options Available      :      Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, Extendable Undercarriage, FOPS Cab, Remote Control, Self-Erecting Counterweight, Universal Casing Joint, Walking Platform
    Auxiliary Winch Capacity      :      16900 lb
    Base Machine Model      :      330
    Condition      :      New
    Control Type      :      Remote
    Crowd Push/Pull Force      :      70000 lb
    Crowd Stroke      :      6 ft 6 in
    Crowd Type      :      Cylinder
    Dimensions      :      31 ft 1 in L x 9 ft 10 in W x 11 ft 6 in H
    Discharge Speed      :      40 to 120 rpm
    Divisions      :      BLAZE
    Drilling Depth      :      54 ft
    Drilling Diameter      :      6 ft
    Engine Displacement      :      428 cu-in
    Engine Horsepower      :      275 hp
    Engine Manufacturer      :      CAT®
    Fuel Tank Capacity      :      125.2 gal
    Fuel Type      :      Diesel
    Main Winch Capacity      :      40000 lb
    Mast Configuration      :      Standard
    Model      :      180
    Operating Weight      :      84200 lb
    Rotary Effective Torque      :      132000 ft-lb
    Rotary Nominal Torque      :      155000 ft-lb
    Standard Kelly Bar      :      5/54
    Undercarriage Type      :      Track
    Working Speed      :      7 to 33 rpm

    Fast and powerful, the strength of the HPM180 range is in its power and stability coupled with incredible speed in moving from site to site without assembly and disassembly steps during transport. Our customers' favourite machine for work on power lines and substations.

    HPM Drill Rig, Model: 180, New Condition, Base Machine Model: 330, 275 hp Engine Horsepower, CAT® Engine Manufacturer, 428 cu-in Engine Displacement, Standard Mast Configuration, 155000 ft-lb Rotary Nominal Torque, 132000 ft-lb Rotary Effective Torque, 7 to 33 rpm Working Speed, 40 to 120 rpm Discharge Speed, 54 ft Drilling Depth, 6 ft Drilling Diameter, 40000 lb Main Winch Capacity, 16900 lb Auxiliary Winch Capacity, Cylinder Crowd, 70000 lb Crowd Push/Pull Force, 6 ft 6 in Crowd Stroke, 84200 lb Operating Weight, 5/54 Standard Kelly Bar, Diesel Fuel, 125.2 gal Fuel Tank Capacity, Track Undercarriage, Remote Control, Add-On Options Available: Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, Extendable Undercarriage, FOPS Cab, Remote Control, Self-Erecting Counterweight, Universal Casing Joint, Walking Platform, 31 ft 1 in L x 9 ft 10 in W x 11 ft 6 in H

      Counterweight Lifting System - This HPM can be assembled by itself without the need of assistant cranes. This patented feature gives contractors the ability to quickly and easily reduce the overall weight of the rig during the transport phase, making it possible to utilise a standard-sized trailer and reduce then hauling costs and avoids oversize/overweight permits
