| Add-On Options Available | : | Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, Extendable Undercarriage, FOPS Cab, Remote Control, Self-Erecting Counterweight, Universal Casing Joint, Walking Platform |
| Auxiliary Winch Capacity | : | 16900 lb |
| Base Machine Model | : | 330 |
| Condition | : | New |
| Control Type | : | Remote |
| Crowd Push/Pull Force | : | 90000 lb |
| Crowd Stroke | : | 8 ft 8 in |
| Crowd Type | : | Cylinder |
| Dimensions | : | 34 ft 9 in L x 9 ft 10 in W x 11 ft 6 in H |
| Discharge Speed | : | 45 to 110 rpm |
| Divisions | : | BLAZE |
| Drilling Depth | : | 54 ft |
| Drilling Diameter | : | 6 ft |
| Engine Displacement | : | 428 cu-in |
| Engine Horsepower | : | 275 hp |
| Engine Manufacturer | : | CAT® |
| Fuel Tank Capacity | : | 125.2 gal |
| Fuel Type | : | Diesel |
| Main Winch Capacity | : | 40000 lb |
| Mast Configuration | : | Short |
| Model | : | 180+ Short Mast |
| Operating Weight | : | 96300 lb |
| Rotary Effective Torque | : | 160000 ft-lb |
| Rotary Nominal Torque | : | 188000 ft-lb |
| Standard Kelly Bar | : | 5/54 |
| Undercarriage Type | : | Track |
| Working Speed | : | 9 to 27 rpm |

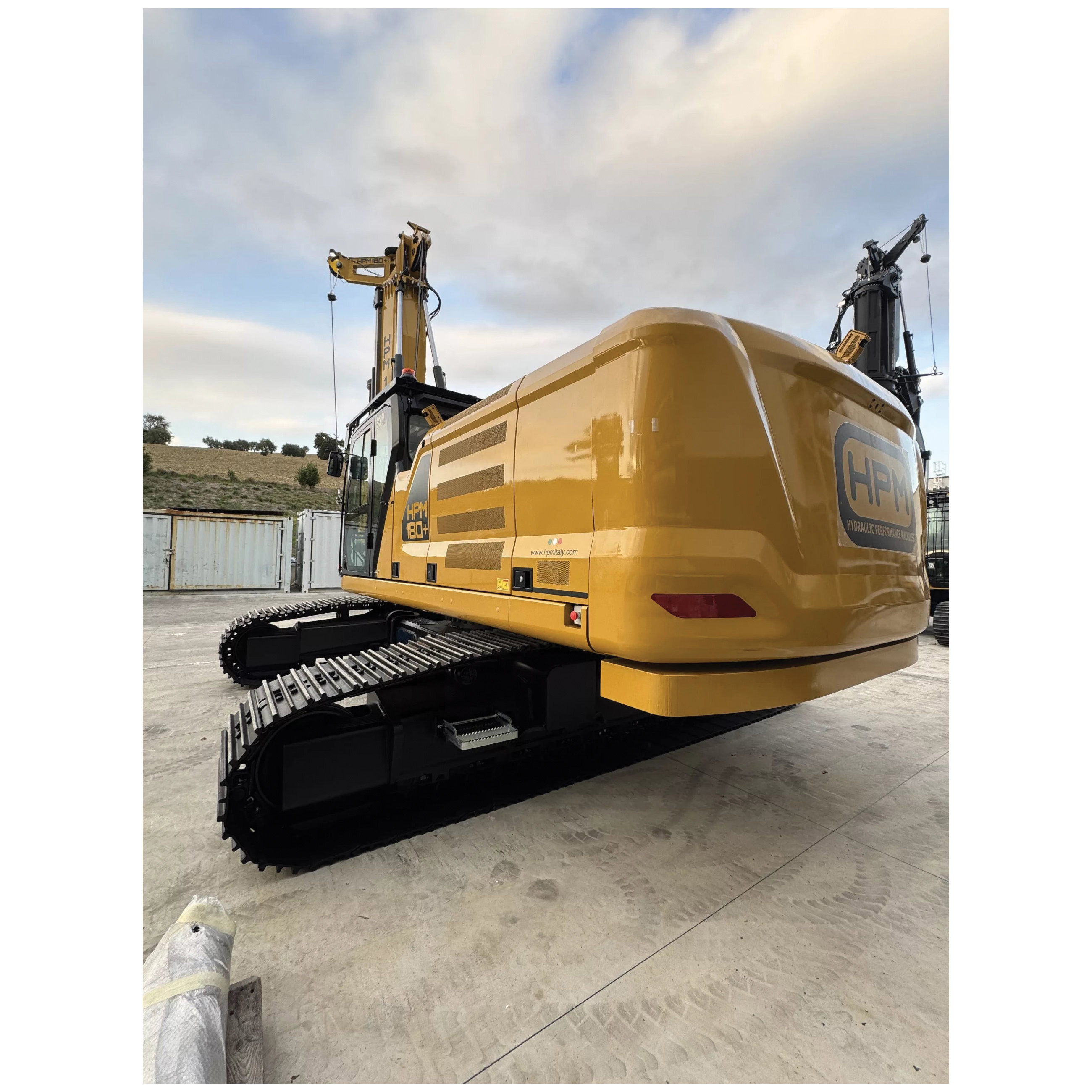

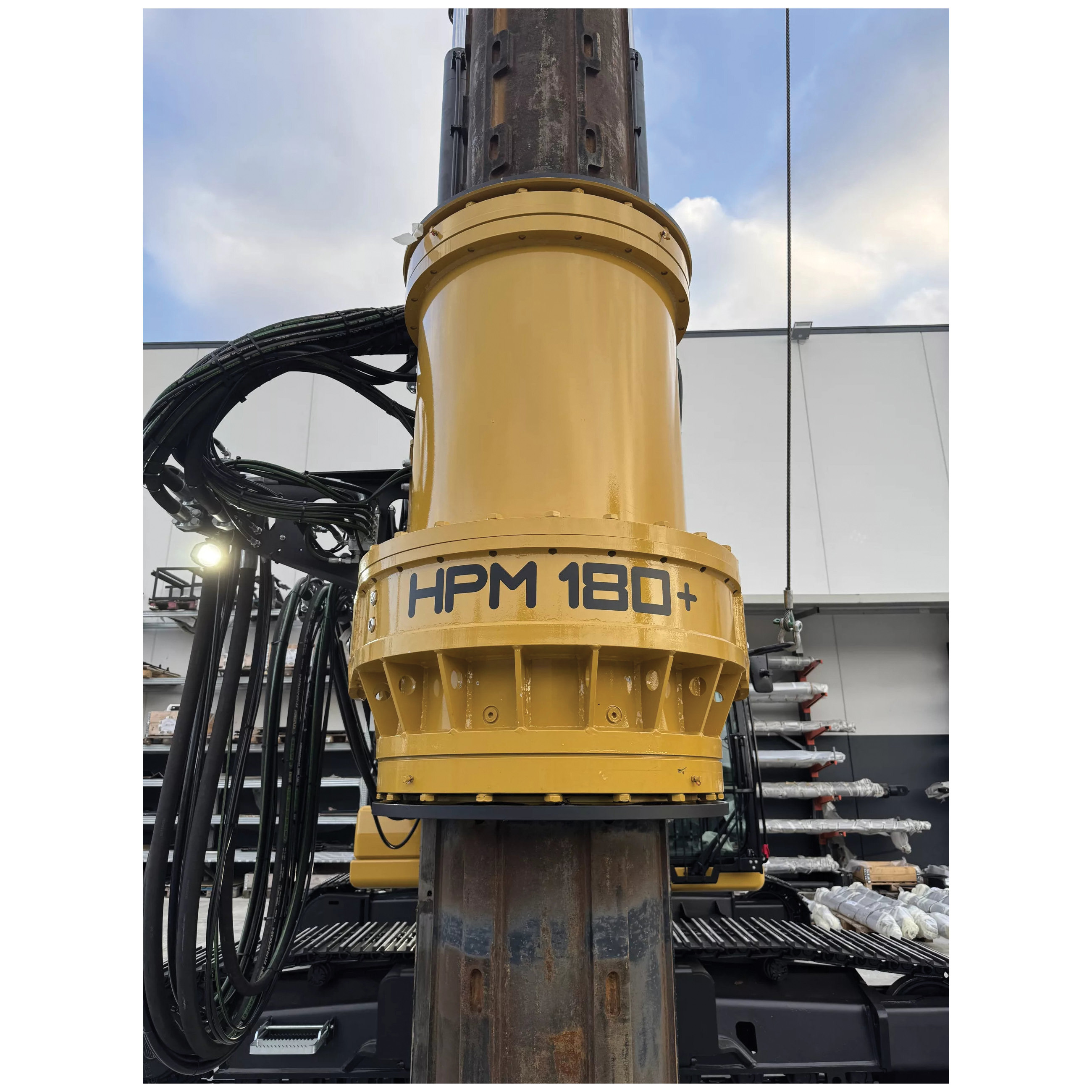

The HPM180+ Short Mast is mounted on a CAT 330 base, equipped with a CAT C7.1 engine. The machine delivers the rugged strength and stability of the standard model in a specialized, compact configuration. This rig maintains peak performance and hydraulic power while operating in height-restricted environments.
HPM Drill Rig, Model: 180+ Short Mast, New Condition, Base Machine Model: 330, 275 hp Engine Horsepower, CAT® Engine Manufacturer, 428 cu-in Engine Displacement, Short Mast Configuration, 188000 ft-lb Rotary Nominal Torque, 160000 ft-lb Rotary Effective Torque, 9 to 27 rpm Working Speed, 45 to 110 rpm Discharge Speed, 54 ft Drilling Depth, 6 ft Drilling Diameter, 40000 lb Main Winch Capacity, 16900 lb Auxiliary Winch Capacity, Cylinder Crowd, 90000 lb Crowd Push/Pull Force, 8 ft 8 in Crowd Stroke, 96300 lb Operating Weight, 5/54 Standard Kelly Bar, Diesel Fuel, 125.2 gal Fuel Tank Capacity, Track Undercarriage, Remote Control, Add-On Options Available: Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, Extendable Undercarriage, FOPS Cab, Remote Control, Self-Erecting Counterweight, Universal Casing Joint, Walking Platform, 34 ft 9 in L x 9 ft 10 in W x 11 ft 6 in H
- Counterweight Lifting System - This HPM can be assembled by itself without the need of assistant cranes. This patented feature gives contractors the ability to quickly and easily reduce the overall weight of the rig during the transport phase, making it possible to utilise a standard-sized trailer and reduce then hauling costs and avoids oversize/overweight permits
