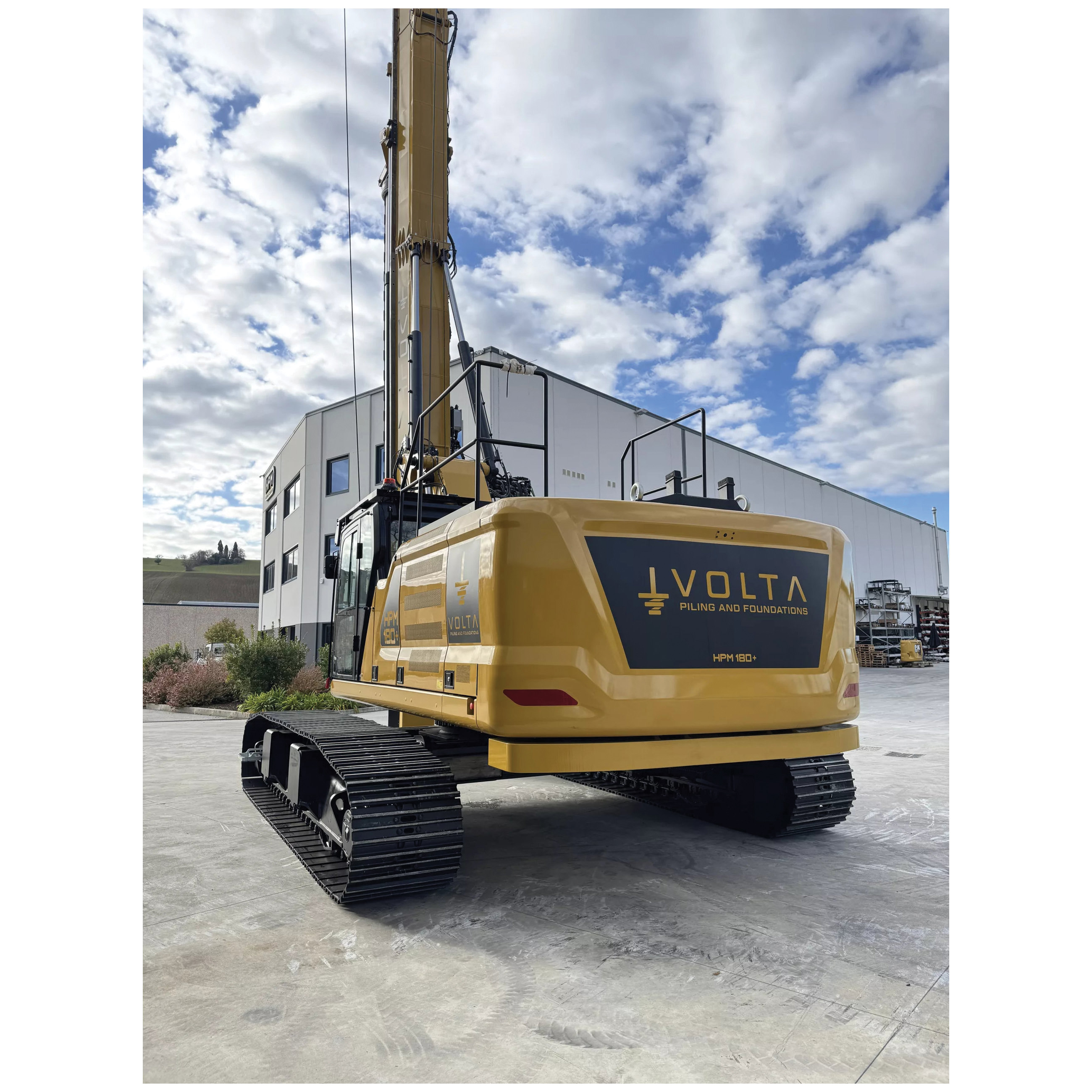

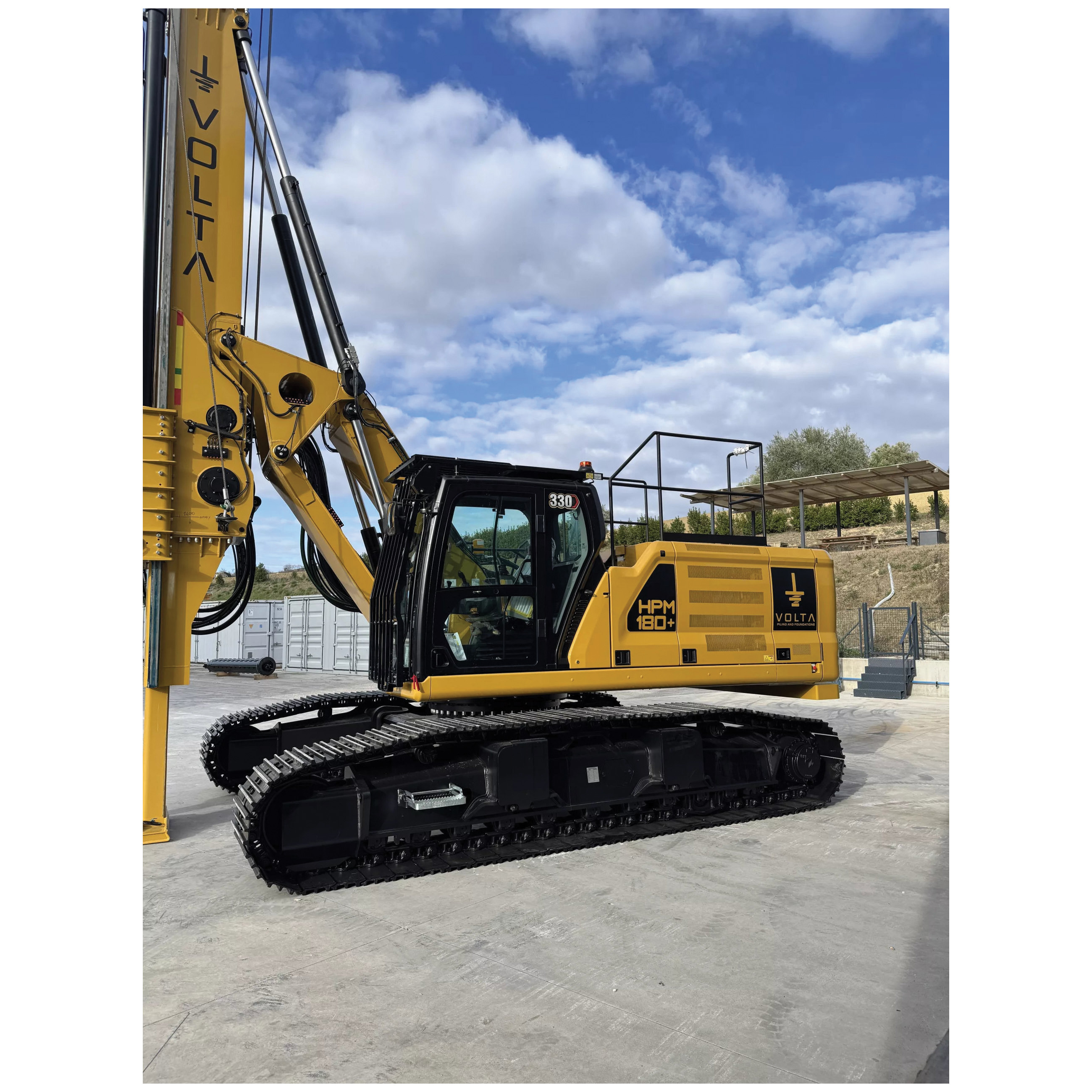

HPM HPM180+ Drill Rig, New Equipment, 275 hp, 150 ft D Drill, 6 ft Dia Drilling

Manufacturer: HPM ITALY
Brand: HPM
Item Number: 180+
MPN: HPM180+
CPN:
Model #: HPM180+
    • Add-On Options Available      :      Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, CFA Kit, Extendable Undercarriage, FOPS Cab, Remote Control, Self-Erecting Counterweight, Short Mast Kit, Universal Casing Joint, Walking Platform
    Auxiliary Winch Capacity      :      16900 lb
    Base Machine Model      :      330
    Condition      :      New
    Control Type      :      Remote
    Crowd Push/Pull Force      :      90000 lb
    Crowd Stroke      :      14 ft 2 in
    Crowd Type      :      Cylinder
    Dimensions      :      61 ft 4 in L x 9 ft 10 in W x 11 ft 6 in H
    Discharge Speed      :      45 to 110 rpm
    Divisions      :      BLAZE
    Drilling Depth      :      150 ft
    Drilling Diameter      :      6 ft
    Engine Displacement      :      428 cu-in
    Engine Horsepower      :      275 hp
    Engine Manufacturer      :      CAT®
    Fuel Tank Capacity      :      125.2 gal
    Fuel Type      :      Diesel
    Main Winch Capacity      :      40000 lb
    Mast Configuration      :      Standard
    Model      :      180+
    Operating Weight      :      118500 lb
    Rotary Effective Torque      :      160000 ft-lb
    Rotary Nominal Torque      :      188000 ft-lb
    Standard Kelly Bar      :      5/150
    Undercarriage Type      :      Track
    Working Speed      :      9 to 27 rpm

    It is always better to add than to remove. And so, to the classic HPM180 we added an expandable CAT undercarriage. What else? We've made it a quickly interchangeable machine from long mast to short mast in a matter of hours. We don't want to waste your time.

    HPM Drill Rig, Model: 180+, New Condition, Base Machine Model: 330, 275 hp Engine Horsepower, CAT® Engine Manufacturer, 428 cu-in Engine Displacement, Standard Mast Configuration, 188000 ft-lb Rotary Nominal Torque, 160000 ft-lb Rotary Effective Torque, 9 to 27 rpm Working Speed, 45 to 110 rpm Discharge Speed, 150 ft Drilling Depth, 6 ft Drilling Diameter, 40000 lb Main Winch Capacity, 16900 lb Auxiliary Winch Capacity, Cylinder Crowd, 90000 lb Crowd Push/Pull Force, 14 ft 2 in Crowd Stroke, 118500 lb Operating Weight, 5/150 Standard Kelly Bar, Diesel Fuel, 125.2 gal Fuel Tank Capacity, Track Undercarriage, Remote Control, Add-On Options Available: Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, CFA Kit, Extendable Undercarriage, FOPS Cab, Remote Control, Self-Erecting Counterweight, Short Mast Kit, Universal Casing Joint, Walking Platform, 61 ft 4 in L x 9 ft 10 in W x 11 ft 6 in H

      Counterweight Lifting System - This HPM can be assembled by itself without the need of assistant cranes. This patented feature gives contractors the ability to quickly and easily reduce the overall weight of the rig during the transport phase, making it possible to utilise a standard-sized trailer and reduce then hauling costs and avoids oversize/overweight permits
