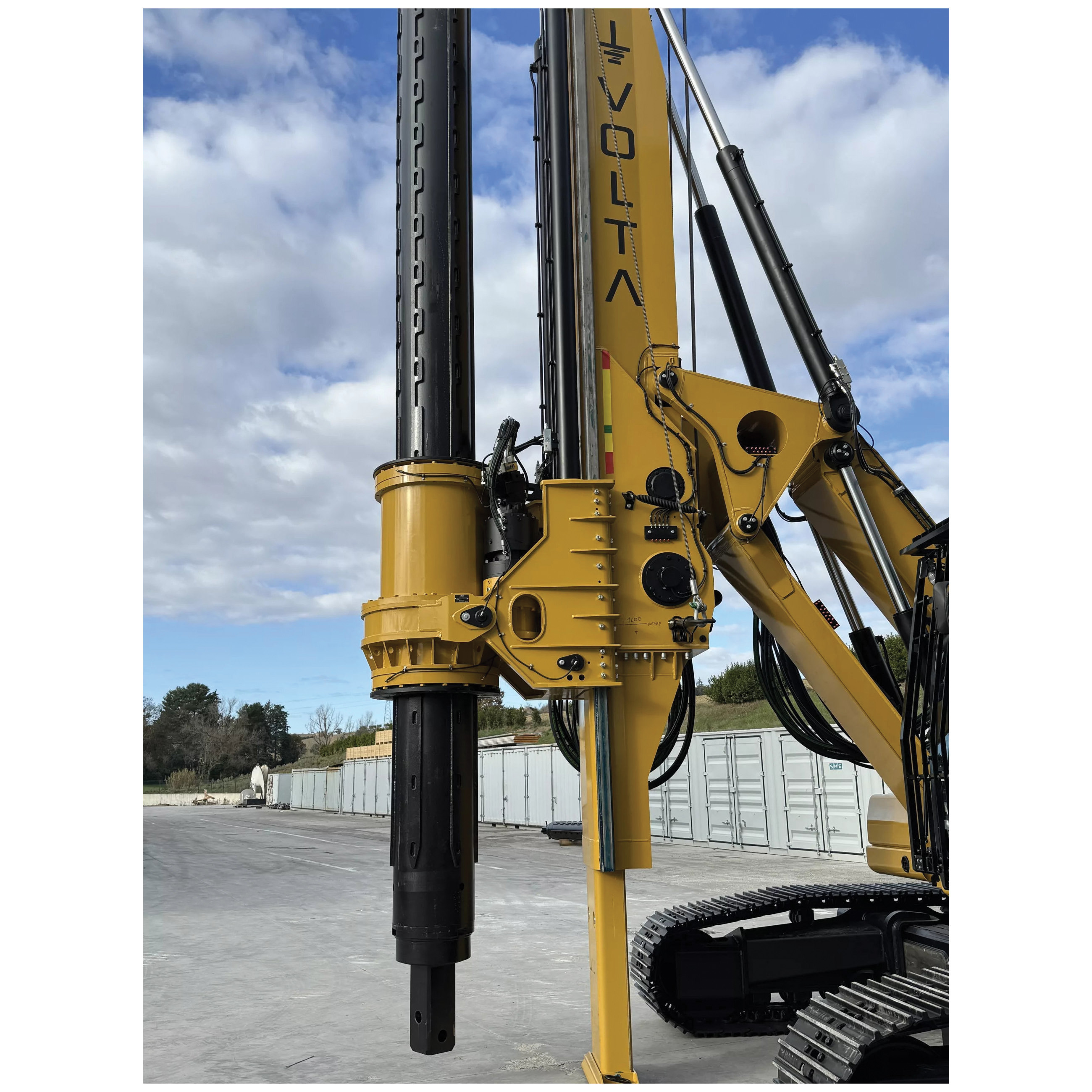

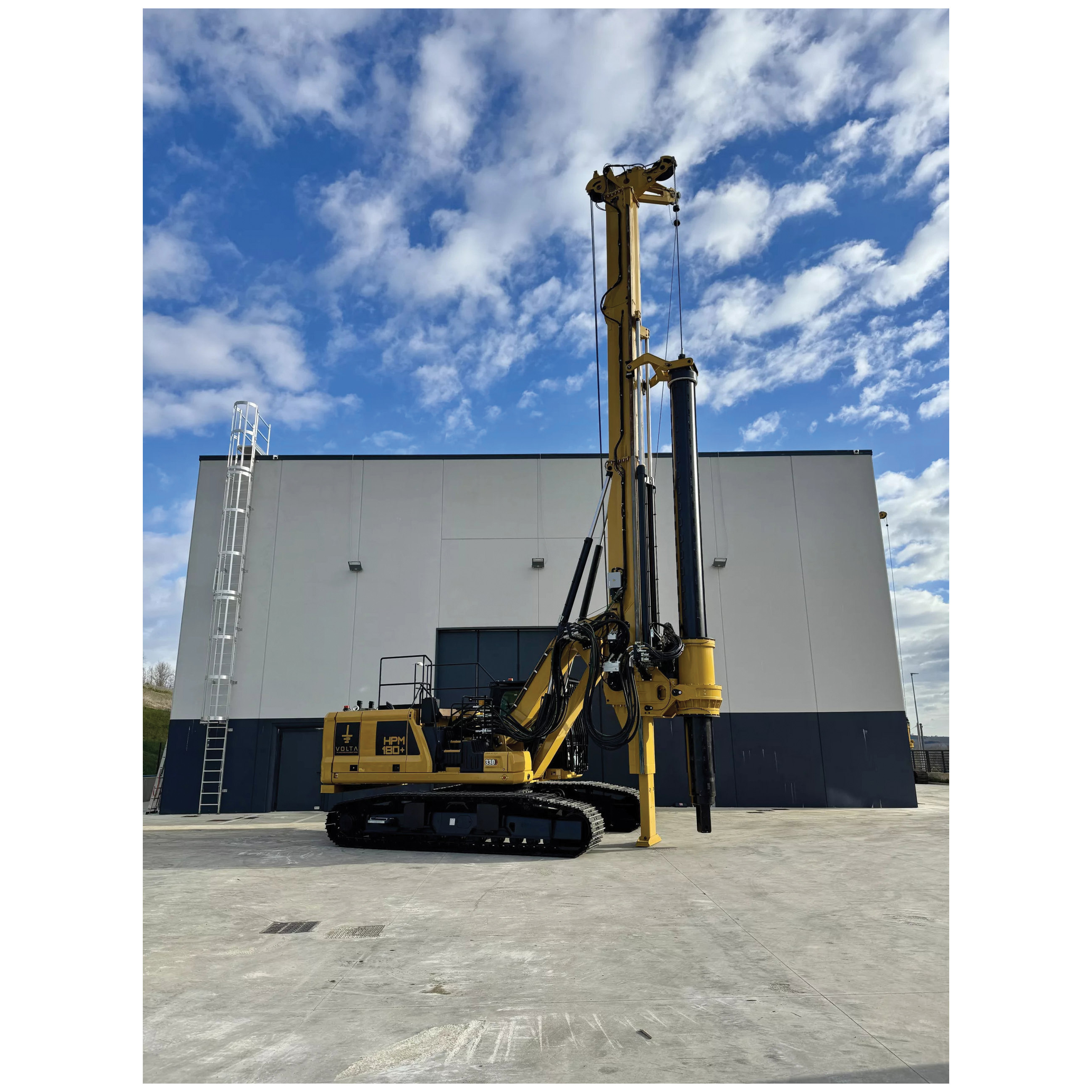

HPM 180+ HPM180+ Drill Rig, New Equipment, 275 hp, 150 ft D Drill, 6 ft Dia Drilling, 90000 lb Crowd Push/Pull Force

Manufacturer: HPM ITALY
Brand: HPM
Item Number: 180+
MPN: HPM180+
CPN:
Model #: HPM180+
  • Heavy This item has special delivery requirements Please contact Owen Companies to order
    • Rental AVAILABLE
    Add-On Options Available      :      Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, CFA Kit, Extendable Undercarriage, FOPS Cab, Remote Control, Self-Erecting Counterweight, Short Mast Kit, Universal Casing Joint, Walking Platform
    Auxiliary Winch Capacity      :      16900 lb
    Base Machine Model      :      330
    Condition      :      New
    Control Type      :      Remote
    Crowd Push/Pull Force      :      90000 lb
    Crowd Stroke      :      14 ft 2 in
    Crowd Type      :      Cylinder
    Dimensions      :      61 ft 4 in L x 9 ft 10 in W x 11 ft 6 in H
    Discharge Speed      :      45 to 110 rpm
    Drilling Depth      :      150 ft
    Drilling Diameter      :      6 ft
    Engine Displacement      :      428 cu-in
    Engine Horsepower      :      275 hp
    Engine Manufacturer      :      CAT®
    Fuel Tank Capacity      :      125.2 gal
    Fuel Type      :      Diesel
    Main Winch Capacity      :      40000 lb
    Mast Configuration      :      Standard
    Model      :      180+
    Operating Weight      :      118500 lb
    Rotary Effective Torque      :      160000 ft-lb
    Rotary Nominal Torque      :      188000 ft-lb
    Standard Kelly Bar      :      5/150
    Undercarriage Type      :      Track
    Working Speed      :      9 to 27 rpm

    It is always better to add than to remove. And so, to the classic HPM180 we added an expandable CAT undercarriage. What else? We've made it a quickly interchangeable machine from long mast to short mast in a matter of hours. We don't want to waste your time.

    HPM Drill Rig, Model: 180+, New Condition, 330 Base Machine Model, 275 hp Engine Horsepower, CAT® Engine Manufacturer, 428 cu-in Engine Displacement, Standard Mast Configuration, 188000 ft-lb Rotary Nominal Torque, 160000 ft-lb Rotary Effective Torque, 9 to 27 rpm Working Speed, 45 to 110 rpm Discharge Speed, 150 ft Drilling Depth, 6 ft Drilling Diameter, 40000 lb Main Winch Capacity, 16900 lb Auxiliary Winch Capacity, Cylinder Crowd Type, 90000 lb Crowd Push/Pull Force, 14 ft 2 in Crowd Stroke, 118500 lb Operating Weight, 5/150 Standard Kelly Bar, Diesel Fuel, 125.2 gal Fuel Tank Capacity, Track Undercarriage Type, Remote Control, Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, CFA Kit, Extendable Undercarriage, FOPS Cab, Remote Control, Self-Erecting Counterweight, Short Mast Kit, Universal Casing Joint, Walking Platform Add-On Options Available, 61 ft 4 in L x 9 ft 10 in W x 11 ft 6 in H

    • Counterweight Lifting System - This HPM can be assembled by itself without the need of assistant cranes. This patented feature gives contractors the ability to quickly and easily reduce the overall weight of the rig during the transport phase, making it possible to utilise a standard-sized trailer and reduce then hauling costs and avoids oversize/overweight permits
    • Low-headroom Configuration - This HPM can be quickly and safely converted in Short Mast configuration allowing it to work in limited heights job sites, such as under bridges or below power lines
    • Automatic Functions - Automatic functions allow the operator to reduce rig-up time and get the most in productivity. With a push of a button, the operator can make use of automatic functions, including: Verticality of the mast, Automatic Rig-up, Automatic return to drilling point and rotary auto drive
    • Drilling Cruise Control - The HPM software includes the enabling of the drilling cruise control. When the system is enabled, the operator can preselect the rotary gear so it's speed. With a push of a button the system can be activated and the operator can also lock the crowd pressure for a complete automatic drilling mode. Safety systems can disable the function immediately
    • Auxiliary House Lock - The operator can make the full use of the whole torque without having the machine swinging from side to side. This patented feature can be automatic or enabled through a button on the joystick. The enabling of the brake offers increased comfort for the operator as the vibrations when drilling on rock are reduced to almost zero
    • Comfort Cabin - The HPM cabin is equipped with a comfy and wide adjustable seat. The standard automatic air conditioning keeps the cabin at the ideal temperature throughout the day. All machine interfaces are ergonomically positioned and designed for optimum control and efficiency. The easy accessible keyboards allow the operator to quickly get the rig ready to drill
    • Expandable Tracks - The retractable undercarriage allows to reduce width of the machine for transport phases, reducing hauling related costs and avoiding transport permits. Once expanded, the undercarriage provides great stability at any working radius for a 360 deg drilling capability
    • Remote Control - Increase safety and flexibility when loading or unloading the equipment. The operator can make use of different viewing angles while moving the machine from outside the cabin. Having a complete view of the rig during these phases allows the operator to make sure that hoses, wirings and wire ropes are safely positioned. Drilling functions are enabled through the remote control for a safe service and maintenance of the rig
