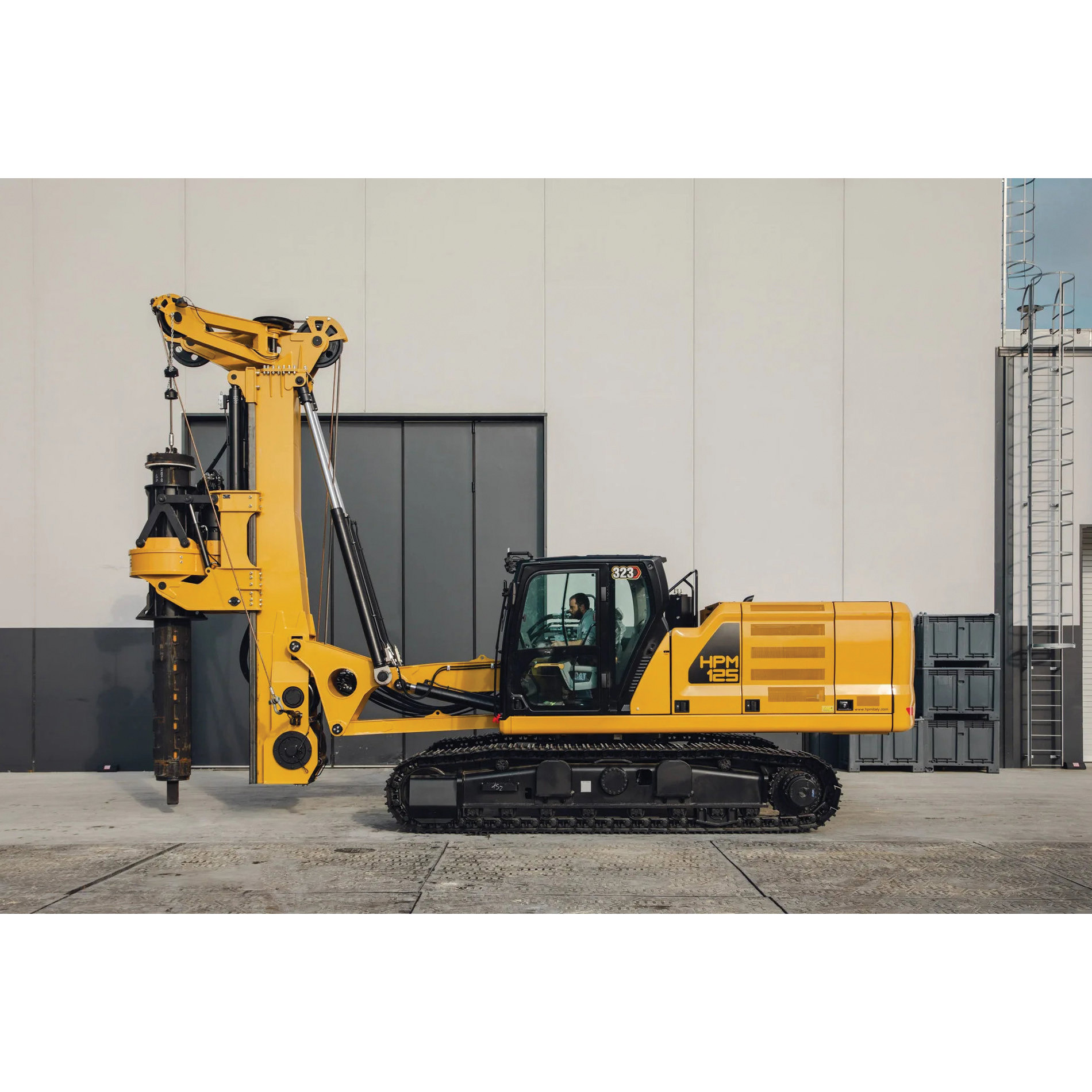

HPM HPM125 Short Mast Drill Rig, New Equipment, 173 hp, 46 ft D Drill, 6 ft Dia Drilling

More than what? More than the standard HPM125 itself. Yes, because in its short mast configuration the HPM125 retains the same strength and compactness, but in a lower format. The HPM125 short mast is the right machine to perform most of the mid-size civil foundation projects.

HPM Drill Rig, Model: 125 Short Mast, New Condition, Base Machine Model: 323, 173 hp Engine Horsepower, CAT® Engine Manufacturer, 428 cu-in Engine Displacement, Short Mast Configuration, 110600 ft-lb Rotary Nominal Torque, 94000 ft-lb Rotary Effective Torque, 7 to 28 rpm Working Speed, 40 to 120 rpm Discharge Speed, 46 ft Drilling Depth, 6 ft Drilling Diameter, 40000 lb Main Winch Capacity, 16900 lb Auxiliary Winch Capacity, Cylinder Crowd, 61000 lb Crowd Push/Pull Force, 6 ft 6 in Crowd Stroke, 71000 lb Operating Weight, 5/46 Standard Kelly Bar, Diesel Fuel, 86.6 gal Fuel Tank Capacity, Track Undercarriage, Remote Control, Add-On Options Available: Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, CFA Kit, FOPS Cab, Long Mast Kit, Remote Control, Self-Erecting Counterweight, Universal Casing Joint, Walking Platform, 29 ft 5 in L x 8 ft 4 in W x 11 ft 2 in H
