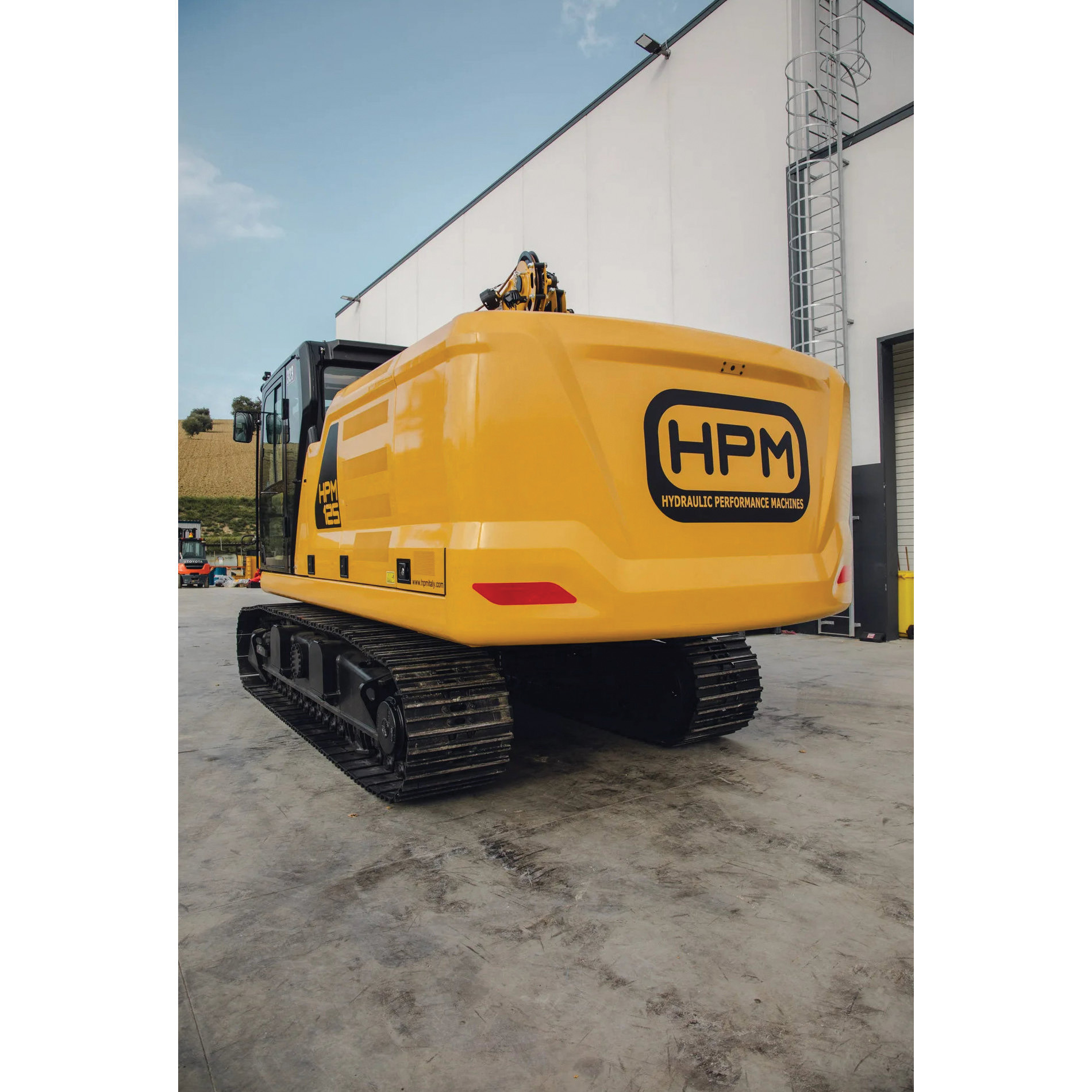

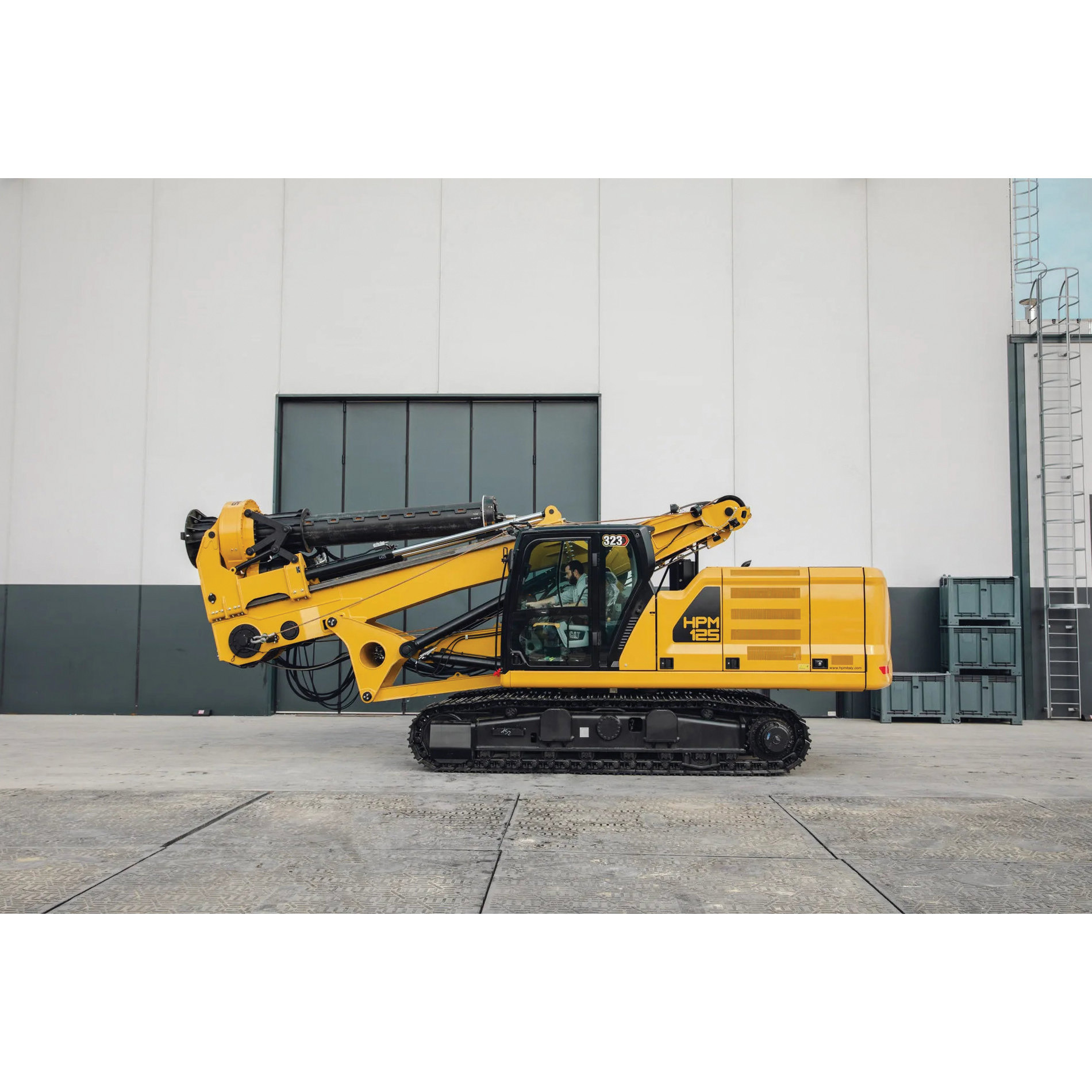

HPM HPM125 Short Mast Drill Rig, New Equipment, 173 hp, 46 ft D Drill, 6 ft Dia Drilling
This item has special delivery requirements
Please contact Owen Companies to order
| Add-On Options Available | : | Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, CFA Kit, FOPS Cab, Long Mast Kit, Remote Control, Self-Erecting Counterweight, Universal Casing Joint, Walking Platform |
| Auxiliary Winch Capacity | : | 16900 lb |
| Base Machine Model | : | 323 |
| Condition | : | New |
| Control Type | : | Remote |
| Crowd Push/Pull Force | : | 61000 lb |
| Crowd Stroke | : | 6 ft 6 in |
| Crowd Type | : | Cylinder |
| Dimensions | : | 29 ft 5 in L x 8 ft 4 in W x 11 ft 2 in H |
| Discharge Speed | : | 40 to 120 rpm |
| Drilling Depth | : | 46 ft |
| Drilling Diameter | : | 6 ft |
| Engine Displacement | : | 428 cu-in |
| Engine Horsepower | : | 173 hp |
| Engine Manufacturer | : | CAT® |
| Fuel Tank Capacity | : | 86.6 gal |
| Fuel Type | : | Diesel |
| Main Winch Capacity | : | 40000 lb |
| Mast Configuration | : | Short |
| Model | : | 125 Short Mast |
| Operating Weight | : | 71000 lb |
| Rotary Effective Torque | : | 94000 ft-lb |
| Rotary Nominal Torque | : | 110600 ft-lb |
| Standard Kelly Bar | : | 5/46 |
| Undercarriage Type | : | Track |
| Working Speed | : | 7 to 28 rpm |
More than what? More than the standard HPM125 itself. Yes, because in its short mast configuration the HPM125 retains the same strength and compactness, but in a lower format. The HPM125 short mast is the right machine to perform most of the mid-size civil foundation projects.
HPM Drill Rig, Model: 125 Short Mast, New Condition, Base Machine Model: 323, 173 hp Engine Horsepower, CAT® Engine Manufacturer, 428 cu-in Engine Displacement, Short Mast Configuration, 110600 ft-lb Rotary Nominal Torque, 94000 ft-lb Rotary Effective Torque, 7 to 28 rpm Working Speed, 40 to 120 rpm Discharge Speed, 46 ft Drilling Depth, 6 ft Drilling Diameter, 40000 lb Main Winch Capacity, 16900 lb Auxiliary Winch Capacity, Cylinder Crowd, 61000 lb Crowd Push/Pull Force, 6 ft 6 in Crowd Stroke, 71000 lb Operating Weight, 5/46 Standard Kelly Bar, Diesel Fuel, 86.6 gal Fuel Tank Capacity, Track Undercarriage, Remote Control, Add-On Options Available: Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, CFA Kit, FOPS Cab, Long Mast Kit, Remote Control, Self-Erecting Counterweight, Universal Casing Joint, Walking Platform, 29 ft 5 in L x 8 ft 4 in W x 11 ft 2 in H
- Counterweight Lifting System - This HPM can be assembled by itself without the need of assistant cranes. This patented feature gives contractors the ability to quickly and easily reduce the overall weight of the rig during the transport phase, making it possible to utilise a standard-sized trailer and reduce then hauling costs and avoids oversize/overweight permits
- Comfort Cabin - The HPM cabin is equipped with a comfy and wide adjustable seat. The standard automatic air conditioning keeps the cabin at the ideal temperature throughout the day. All machine interfaces are ergonomically positioned and designed for optimum control and efficiency. The easy accessible keyboards allow the operator to quickly get the rig ready to drill
- Expandable Tracks - The retractable undercarriage allows to reduce width of the machine for transport phases, reducing hauling related costs and avoiding transport permits. Once expanded, the undercarriage provides great stability at any working radius for a 360 deg drilling capability
- Remote Control - Increase safety and flexibility when loading or unloading the equipment. The operator can make use of different viewing angles while moving the machine from outside the cabin. Having a complete view of the rig during these phases allows the operator to make sure that hoses, wirings and wire ropes are safely positioned. Drilling functions are enabled through the remote control for a safe service and maintenance of the rig
- Auxiliary House Lock - The operator can make the full use of the whole torque without having the machine swinging from side to side. This patented feature can be automatic or enabled through a button on the joystick. The enabling of the brake offers increased comfort for the operator as the vibrations when drilling on rock are reduced to almost zero
- Automatic Functions - Automatic functions allow the operator to reduce rig-up time and get the most in productivity. With a push of a button, the operator can make use of automatic functions, including: Verticality of the mast, Automatic Rig-up, Automatic return to drilling point and rotary auto drive
- Drilling Cruise Control - The HPM software includes the enabling of the drilling cruise control. When the system is enabled, the operator can preselect the rotary gear so it's speed. With a push of a button the system can be activated and the operator can also lock the crowd pressure for a complete automatic drilling mode. Safety systems can disable the function immediately
- Long Mast Configuration - By adding mast extension and longer kelly bar, this machine can be quickly converted into a standard height machine, allowing it to perform greater depths and be used for different drilling applications, such as CFA, soil mixing, Displacement, etc
