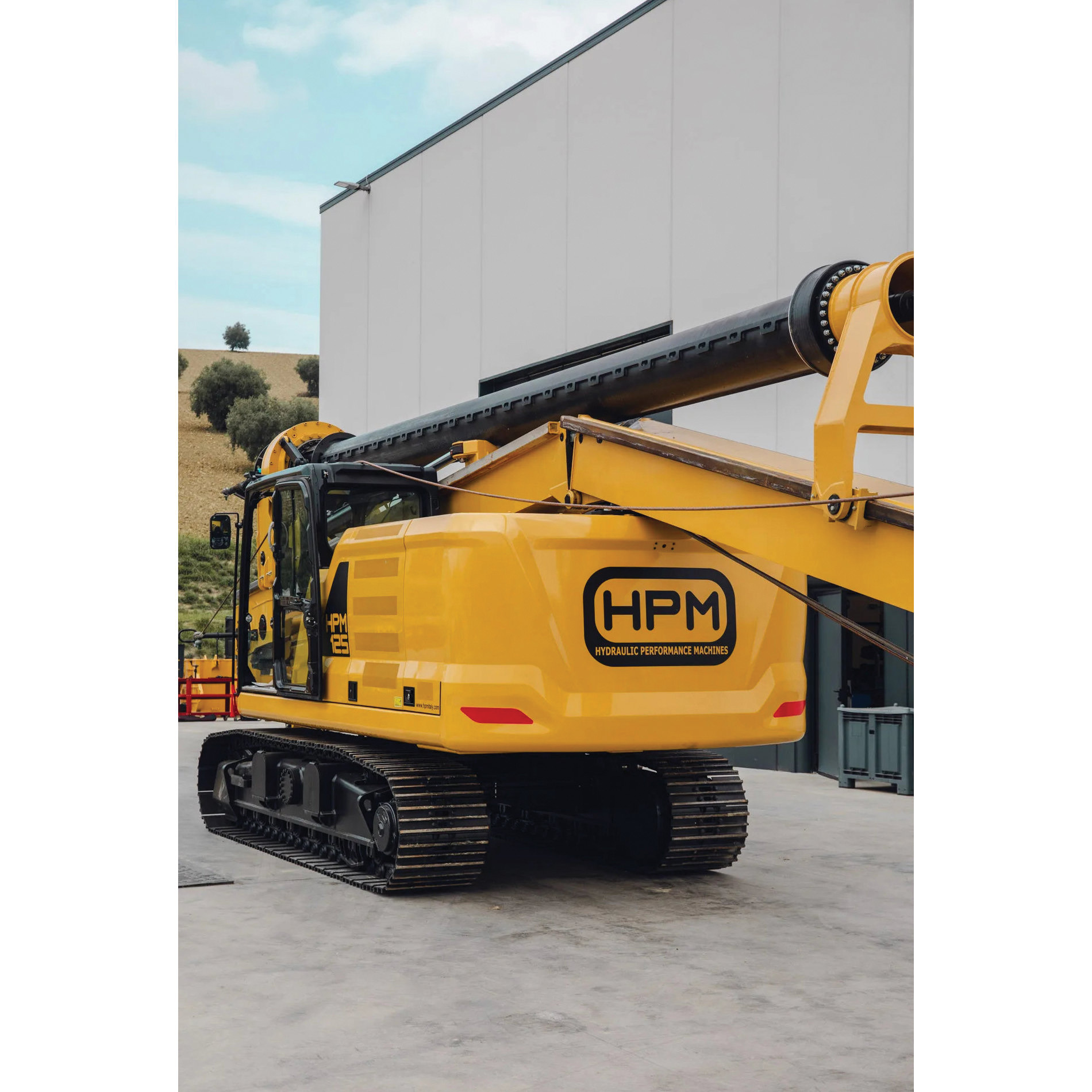

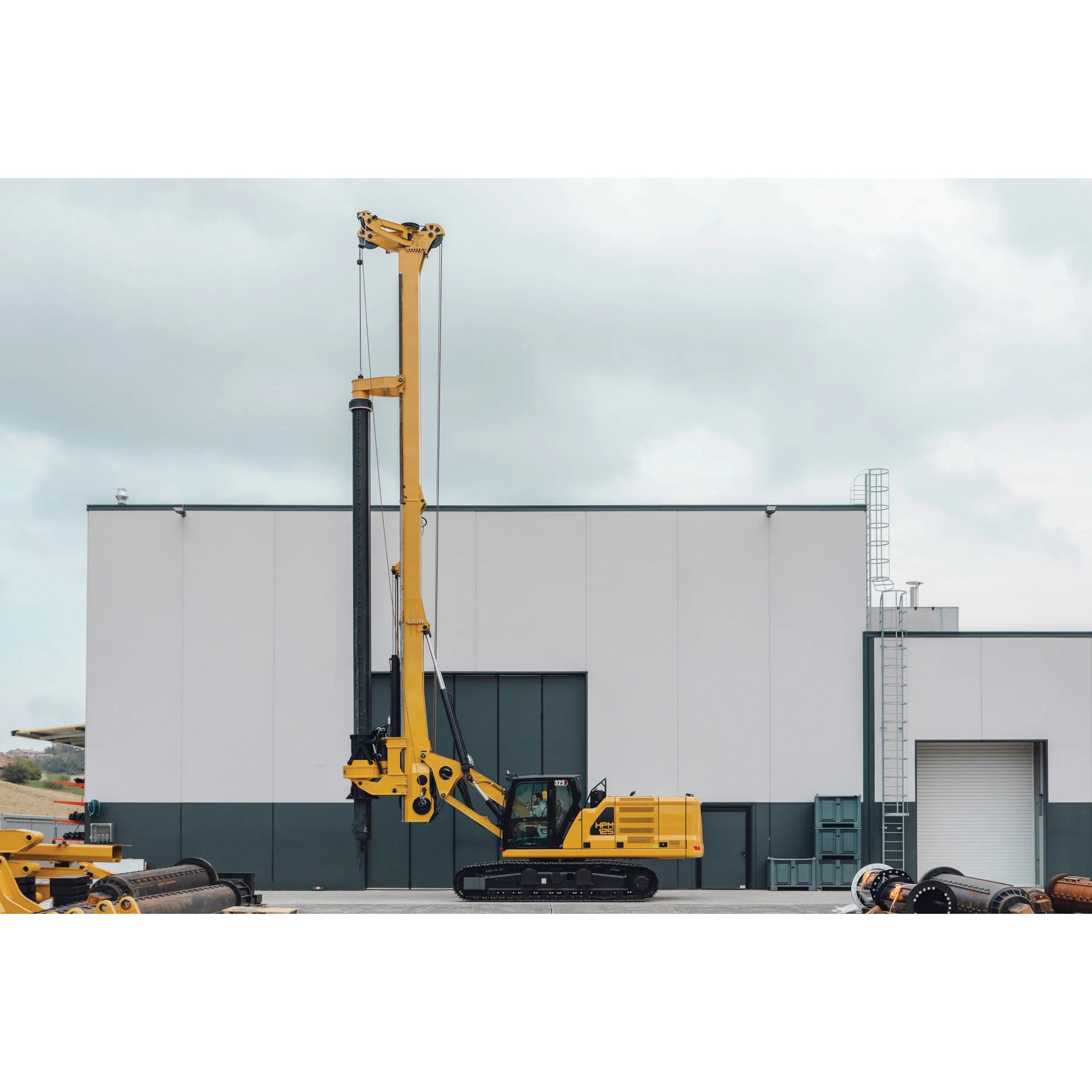

HPM HPM125 Drill Rig, New Equipment, 173 hp, 120 ft D Drill, 6 ft Dia Drilling

It is powerful but not bulky, it is agile but does not lack in stability. HPM125 Standard is one of the machines favoured by our customers due to the compact dimension, the performance and the ease of setup. The perfect machine for any kind of needs, especially for drilling foundations, ratholes and landfills.

HPM Drill Rig, Model: 125, New Condition, Base Machine Model: 323, 173 hp Engine Horsepower, CAT® Engine Manufacturer, 428 cu-in Engine Displacement, Standard Mast Configuration, 110600 ft-lb Rotary Nominal Torque, 94000 ft-lb Rotary Effective Torque, 7 to 28 rpm Working Speed, 40 to 120 rpm Discharge Speed, 120 ft Drilling Depth, 6 ft Drilling Diameter, 40000 lb Main Winch Capacity, 16900 lb Auxiliary Winch Capacity, Cylinder Crowd, 61000 lb Crowd Push/Pull Force, 8 ft 6 in Crowd Stroke, 79400 lb Operating Weight, 4/120 Standard Kelly Bar, Diesel Fuel, 86.6 gal Fuel Tank Capacity, Track Undercarriage, Remote Control, Add-On Options Available: Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, CFA Kit, FOPS Cab, Remote Control, Self-Erecting Counterweight, Short Mast Kit, Universal Casing Joint, Walking Platform, Winch Crowd System, 48 ft 2 in L x 8 ft 4 in W x 11 ft 8 in H
