| Add-On Options Available | : | Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, CFA Kit, FOPS Cab, Remote Control, Self-Erecting Counterweight, Short Mast Kit, Universal Casing Joint, Walking Platform, Winch Crowd System |
| Auxiliary Winch Capacity | : | 16900 lb |
| Base Machine Model | : | 323 |
| Condition | : | New |
| Control Type | : | Remote |
| Crowd Push/Pull Force | : | 61000 lb |
| Crowd Stroke | : | 8 ft 6 in |
| Crowd Type | : | Cylinder |
| Dimensions | : | 48 ft 2 in L x 8 ft 4 in W x 11 ft 8 in H |
| Discharge Speed | : | 40 to 120 rpm |
| Drilling Depth | : | 120 ft |
| Drilling Diameter | : | 6 ft |
| Engine Displacement | : | 428 cu-in |
| Engine Horsepower | : | 173 hp |
| Engine Manufacturer | : | CAT® |
| Fuel Tank Capacity | : | 86.6 gal |
| Fuel Type | : | Diesel |
| Main Winch Capacity | : | 40000 lb |
| Mast Configuration | : | Standard |
| Model | : | 125 |
| Operating Weight | : | 79400 lb |
| Rotary Effective Torque | : | 94000 ft-lb |
| Rotary Nominal Torque | : | 110600 ft-lb |
| Standard Kelly Bar | : | 4/120 |
| Undercarriage Type | : | Track |
| Working Speed | : | 7 to 28 rpm |

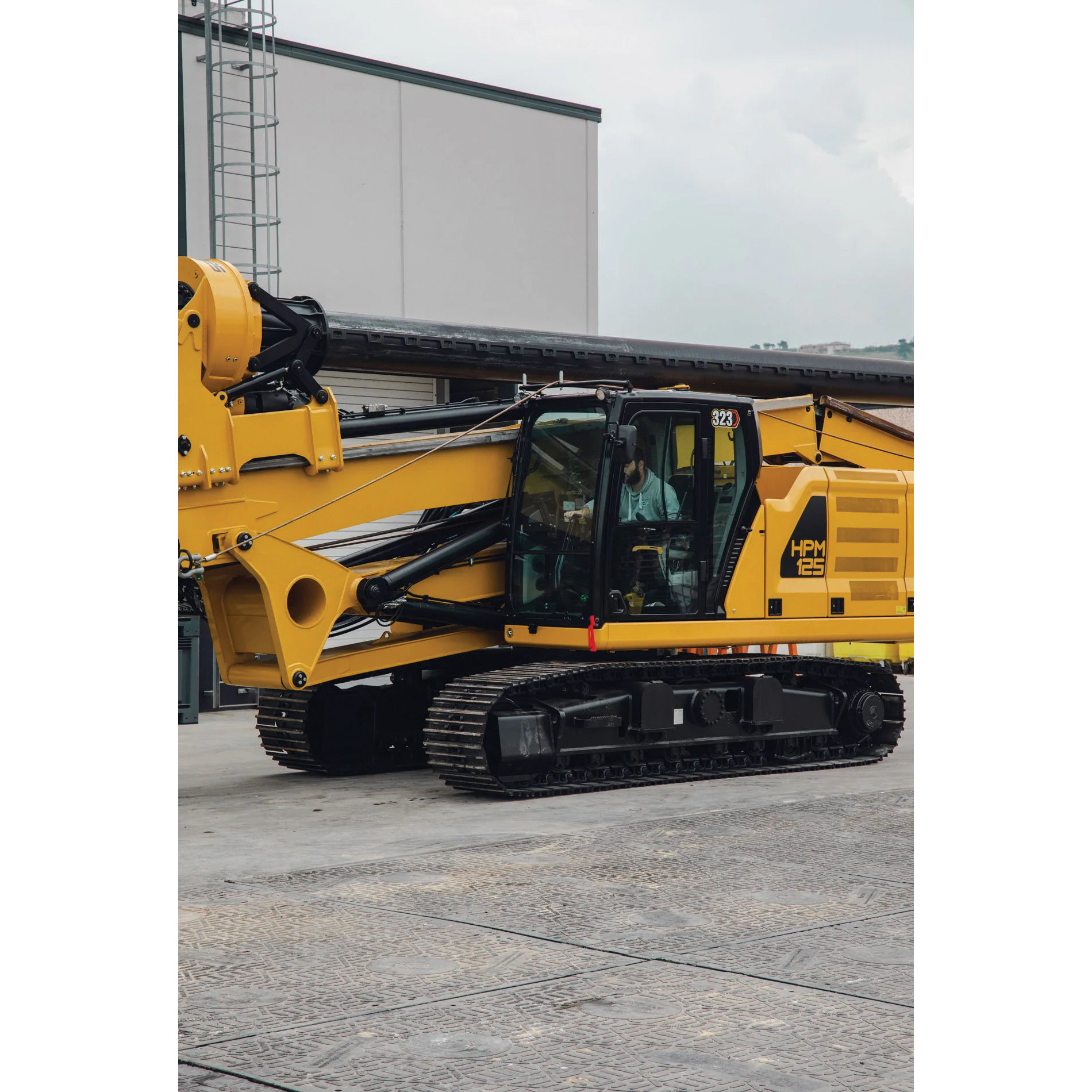

It is powerful but not bulky, it is agile but does not lack in stability. HPM125 Standard is one of the machines favoured by our customers due to the compact dimension, the performance and the ease of setup. The perfect machine for any kind of needs, especially for drilling foundations, ratholes and landfills.
HPM Drill Rig, Model: 125, New Condition, Base Machine Model: 323, 173 hp Engine Horsepower, CAT® Engine Manufacturer, 428 cu-in Engine Displacement, Standard Mast Configuration, 110600 ft-lb Rotary Nominal Torque, 94000 ft-lb Rotary Effective Torque, 7 to 28 rpm Working Speed, 40 to 120 rpm Discharge Speed, 120 ft Drilling Depth, 6 ft Drilling Diameter, 40000 lb Main Winch Capacity, 16900 lb Auxiliary Winch Capacity, Cylinder Crowd, 61000 lb Crowd Push/Pull Force, 8 ft 6 in Crowd Stroke, 79400 lb Operating Weight, 4/120 Standard Kelly Bar, Diesel Fuel, 86.6 gal Fuel Tank Capacity, Track Undercarriage, Remote Control, Add-On Options Available: Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, CFA Kit, FOPS Cab, Remote Control, Self-Erecting Counterweight, Short Mast Kit, Universal Casing Joint, Walking Platform, Winch Crowd System, 48 ft 2 in L x 8 ft 4 in W x 11 ft 8 in H
- Counterweight Lifting System - This HPM can be assembled by itself without the need of assistant cranes. This patented feature gives contractors the ability to quickly and easily reduce the overall weight of the rig during the transport phase, making it possible to utilise a standard-sized trailer and reduce then hauling costs and avoids oversize/overweight permits
- Low-headroom Configuration - This HPM can be quickly and safely converted in Short Mast configuration allowing it to work in limited heights job sites, such as under bridges or below power lines
- Automatic Functions - Automatic functions allow the operator to reduce rig-up time and get the most in productivity. With a push of a button, the operator can make use of automatic functions, including: Verticality of the mast, Automatic Rig-up, Automatic return to drilling point and rotary auto drive
- Drilling Cruise Control - The HPM software includes the enabling of the drilling cruise control. When the system is enabled, the operator can preselect the rotary gear so it's speed. With a push of a button the system can be activated and the operator can also lock the crowd pressure for a complete automatic drilling mode. Safety systems can disable the function immediately
- Auxiliary House Lock - The operator can make the full use of the whole torque without having the machine swinging from side to side. This patented feature can be automatic or enabled through a button on the joystick. The enabling of the brake offers increased comfort for the operator as the vibrations when drilling on rock are reduced to almost zero
- Comfort Cabin - The HPM cabin is equipped with a comfy and wide adjustable seat. The standard automatic air conditioning keeps the cabin at the ideal temperature throughout the day. All machine interfaces are ergonomically positioned and designed for optimum control and efficiency. The easy accessible keyboards allow the operator to quickly get the rig ready to drill
- Expandable Tracks - The retractable undercarriage allows to reduce width of the machine for transport phases, reducing hauling related costs and avoiding transport permits. Once expanded, the undercarriage provides great stability at any working radius for a 360 deg drilling capability
- Remote Control - Increase safety and flexibility when loading or unloading the equipment. The operator can make use of different viewing angles while moving the machine from outside the cabin. Having a complete view of the rig during these phases allows the operator to make sure that hoses, wirings and wire ropes are safely positioned. Drilling functions are enabled through the remote control for a safe service and maintenance of the rig
