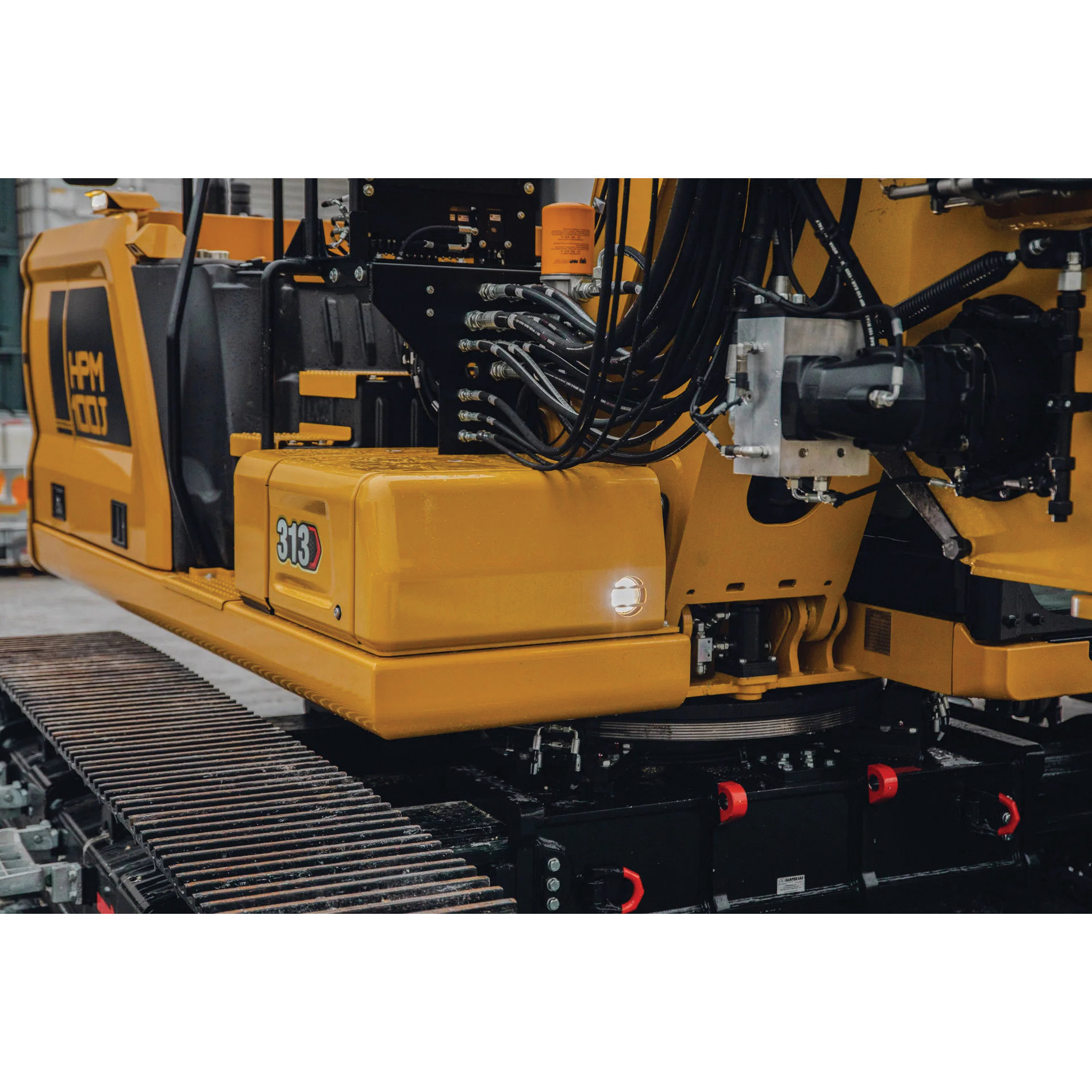

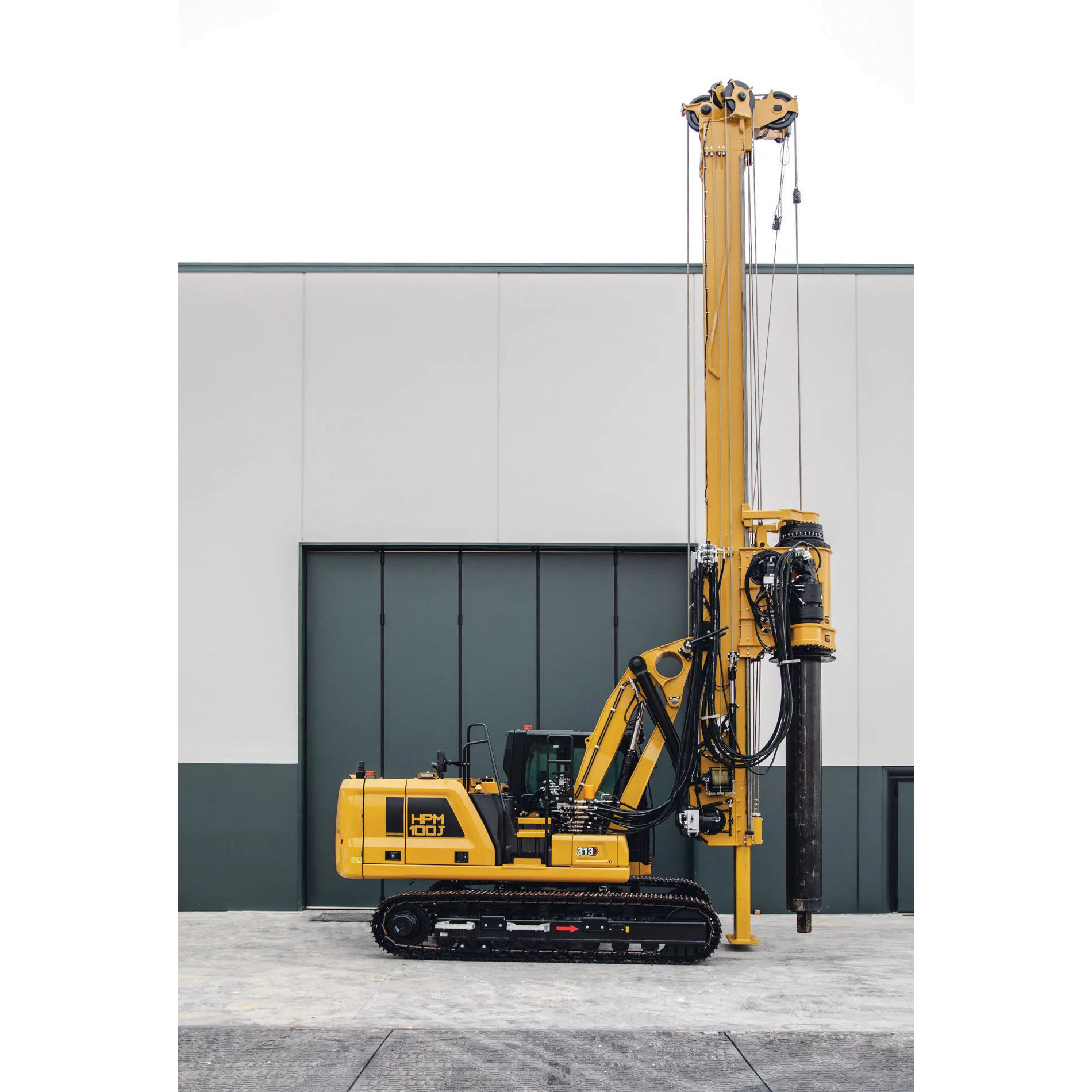

HPM HPM100J Drill Rig, New Equipment, 108 hp, 65 ft D Drill, 3 ft 3 in Dia Drilling

The smallest in the HPM's range. While maintaining a powerful and robust look, the HPM100J is a particularly agile machine. It moves quick and it's also easy to transport with its 53,000 lbs transport weight. Particularly used on utility works where space and overhead height are limited.

HPM Drill Rig, Model: 100J, New Condition, Base Machine Model: 313, 108 hp Engine Horsepower, CAT® Engine Manufacturer, 220 cu-in Engine Displacement, Standard Mast Configuration, 90700 ft-lb Rotary Nominal Torque, 77450 ft-lb Rotary Effective Torque, 8 to 28 rpm Working Speed, 50 to 125 rpm Discharge Speed, 65 ft Drilling Depth, 3 ft 3 in Drilling Diameter, 27000 lb Main Winch Capacity, 6750 lb Auxiliary Winch Capacity, Winch Crowd, 45200 lb Crowd Push/Pull Force, 17 ft Crowd Stroke, 58400 lb Operating Weight, 6/21 Standard Kelly Bar, Diesel Fuel, 68.2 gal Fuel Tank Capacity, Track Undercarriage, Remote Control, Add-On Options Available: Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, CFA Kit, Cylinder Crowd System, FOPS Cab, Remote Control, Self-Erecting Counterweight, Short Mast Kit, Universal Casing Joint, Walking Platform, 34 ft 6 in L x 8 ft 2 in W x 10 ft 2 in H
