| Add-On Options Available | : | Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, FOPS Cab, Remote Control, Self-Erecting Counterweight, Short Mast Kit, Universal Casing Joint |
| Auxiliary Winch Capacity | : | 6750 lb |
| Base Machine Model | : | 317 |
| Condition | : | New |
| Control Type | : | Remote |
| Crowd Push/Pull Force | : | 23150 lb |
| Crowd Stroke | : | 13 ft 6 in |
| Crowd Type | : | Winch |
| Dimensions | : | 38 ft 8 in L x 102 in W x 10 ft 2 in H |
| Discharge Speed | : | 60 to 100 rpm |
| Divisions | : | BLAZE |
| Drilling Depth | : | 61 ft |
| Drilling Diameter | : | 9 ft |
| Engine Displacement | : | 220 cu-in |
| Engine Horsepower | : | 130 hp |
| Engine Manufacturer | : | CAT® |
| Fuel Tank Capacity | : | 71.6 gal |
| Fuel Type | : | Diesel |
| Main Winch Capacity | : | 22000 lb |
| Mast Configuration | : | Standard |
| Model | : | B55 |
| Operating Weight | : | 56200 lb |
| Rotary Effective Torque | : | 56000 ft-lb |
| Rotary Nominal Torque | : | 63500 ft-lb |
| Standard Kelly Bar | : | 5/53 |

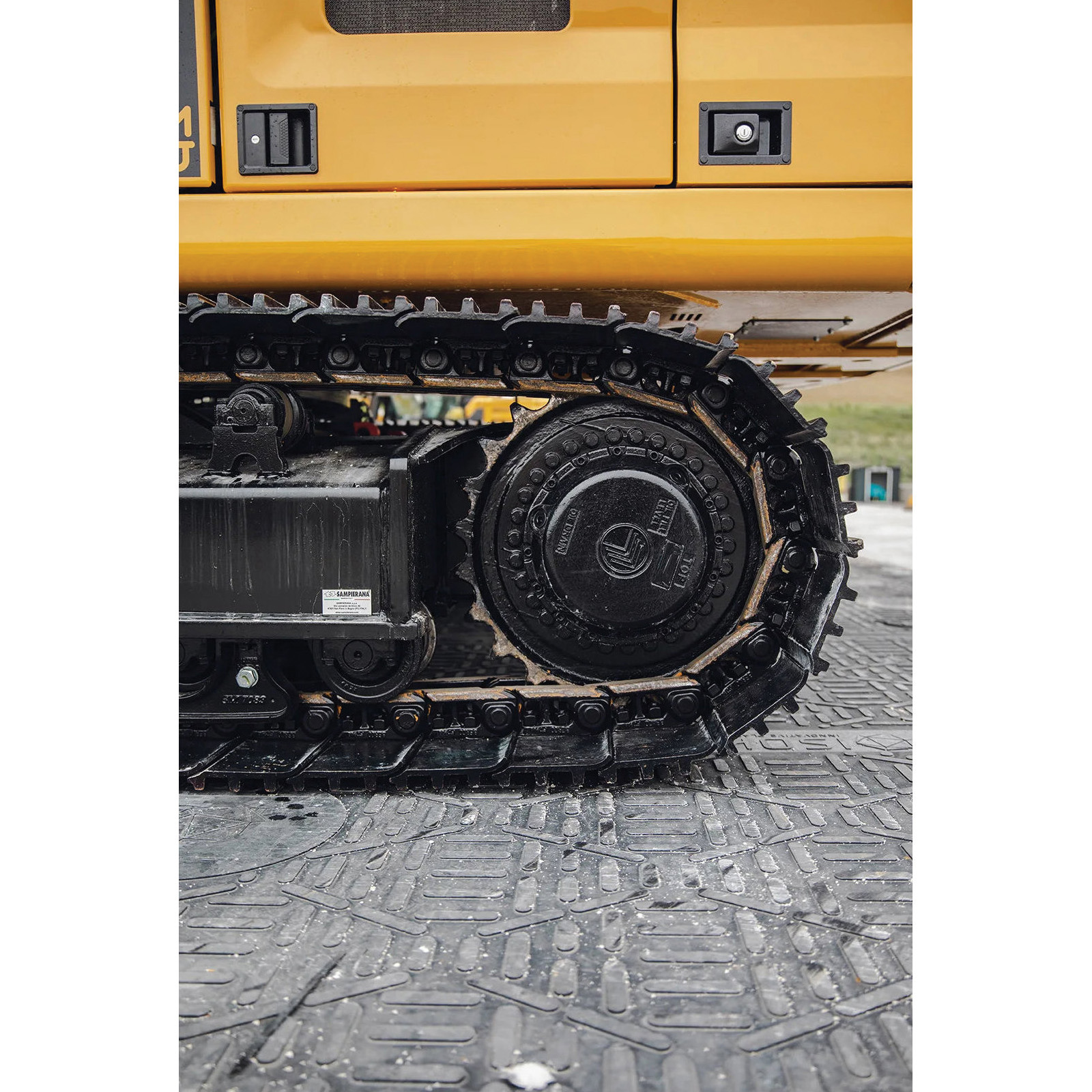

| Undercarriage Type | : | Track |
| Working Speed | : | 7 to 30 rpm |

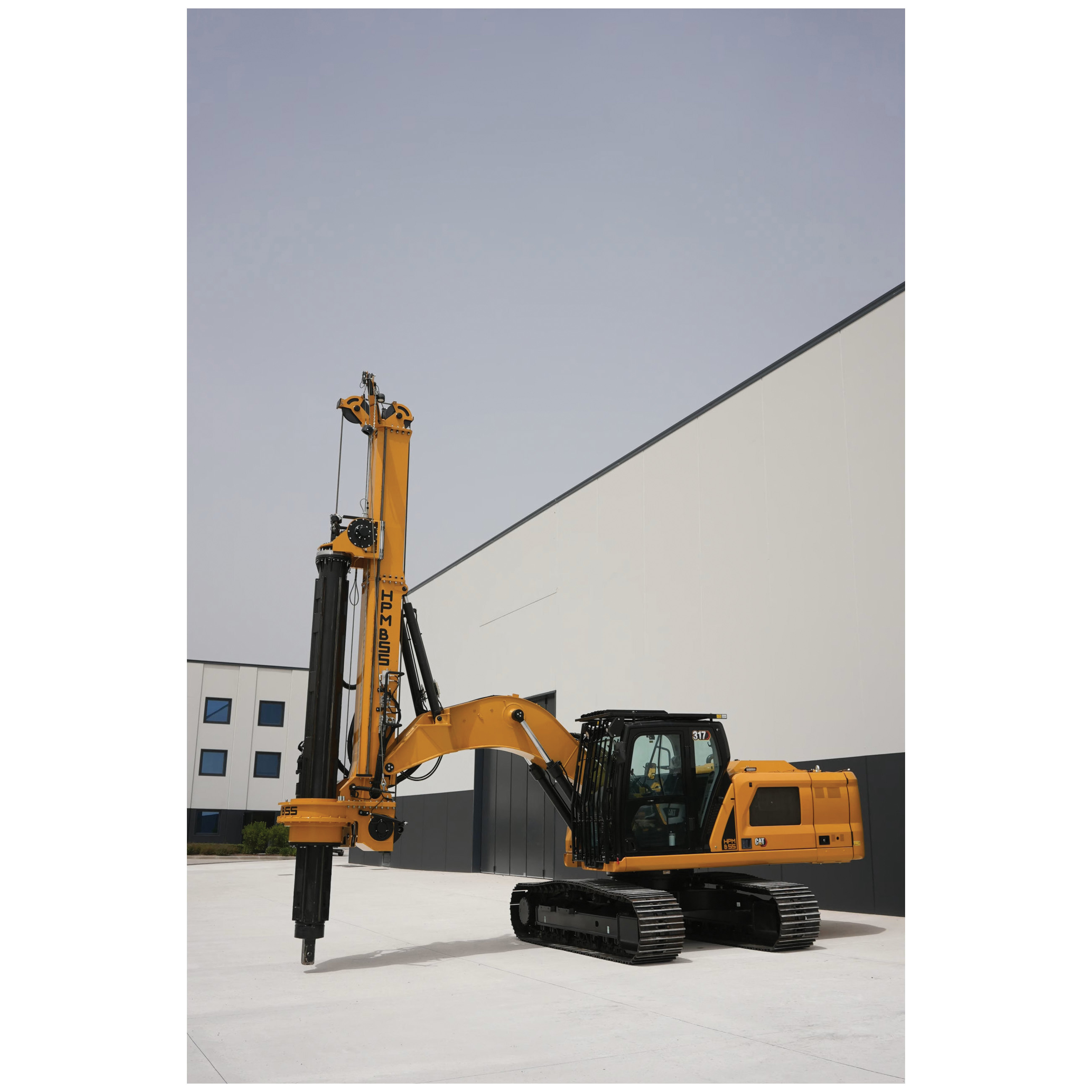

The newly designed articulation system allows the mast to reach difficult drilling points. Compared to the HPMs with standard kinematics system, these models have a great range of working radios making it ideal for applications such as utilities drilling, transmission lines and substation, drilling on a steep slopes and difficult ground.
HPM Drill Rig, Model: B55, New Condition, Base Machine Model: 317, 130 hp Engine Horsepower, CAT® Engine Manufacturer, 220 cu-in Engine Displacement, Standard Mast Configuration, 63500 ft-lb Rotary Nominal Torque, 56000 ft-lb Rotary Effective Torque, 7 to 30 rpm Working Speed, 60 to 100 rpm Discharge Speed, 61 ft Drilling Depth, 9 ft Drilling Diameter, 22000 lb Main Winch Capacity, 6750 lb Auxiliary Winch Capacity, Winch Crowd, 23150 lb Crowd Push/Pull Force, 13 ft 6 in Crowd Stroke, 56200 lb Operating Weight, 5/53 Standard Kelly Bar, Diesel Fuel, 71.6 gal Fuel Tank Capacity, Track Undercarriage, Remote Control, Add-On Options Available: Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, FOPS Cab, Remote Control, Self-Erecting Counterweight, Short Mast Kit, Universal Casing Joint, 38 ft 8 in L x 102 in W x 10 ft 2 in H
- Low-headroom Configuration - This HPM can be quickly and safely converted in Short Mast configuration allowing it to work in limited heights job sites, such as under bridges or below power lines
