| Add-On Options Available | : | Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, FOPS Cab, Remote Control, Self-Erecting Counterweight, Short Mast Kit, Universal Casing Joint |
| Auxiliary Winch Capacity | : | 6750 lb |
| Base Machine Model | : | 317 |
| Condition | : | New |
| Control Type | : | Remote |
| Crowd Push/Pull Force | : | 23150 lb |
| Crowd Stroke | : | 13 ft 6 in |
| Crowd Type | : | Winch |
| Dimensions | : | 38 ft 8 in L x 102 in W x 10 ft 2 in H |
| Discharge Speed | : | 60 to 100 rpm |
| Drilling Depth | : | 61 ft |
| Drilling Diameter | : | 9 ft |
| Engine Displacement | : | 220 cu-in |
| Engine Horsepower | : | 130 hp |
| Engine Manufacturer | : | CAT® |
| Fuel Tank Capacity | : | 71.6 gal |
| Fuel Type | : | Diesel |
| Main Winch Capacity | : | 22000 lb |
| Mast Configuration | : | Standard |
| Model | : | B55 |
| Operating Weight | : | 56200 lb |
| Rotary Effective Torque | : | 56000 ft-lb |
| Rotary Nominal Torque | : | 63500 ft-lb |
| Standard Kelly Bar | : | 5/53 |
| Undercarriage Type | : | Track |
| Working Speed | : | 7 to 30 rpm |

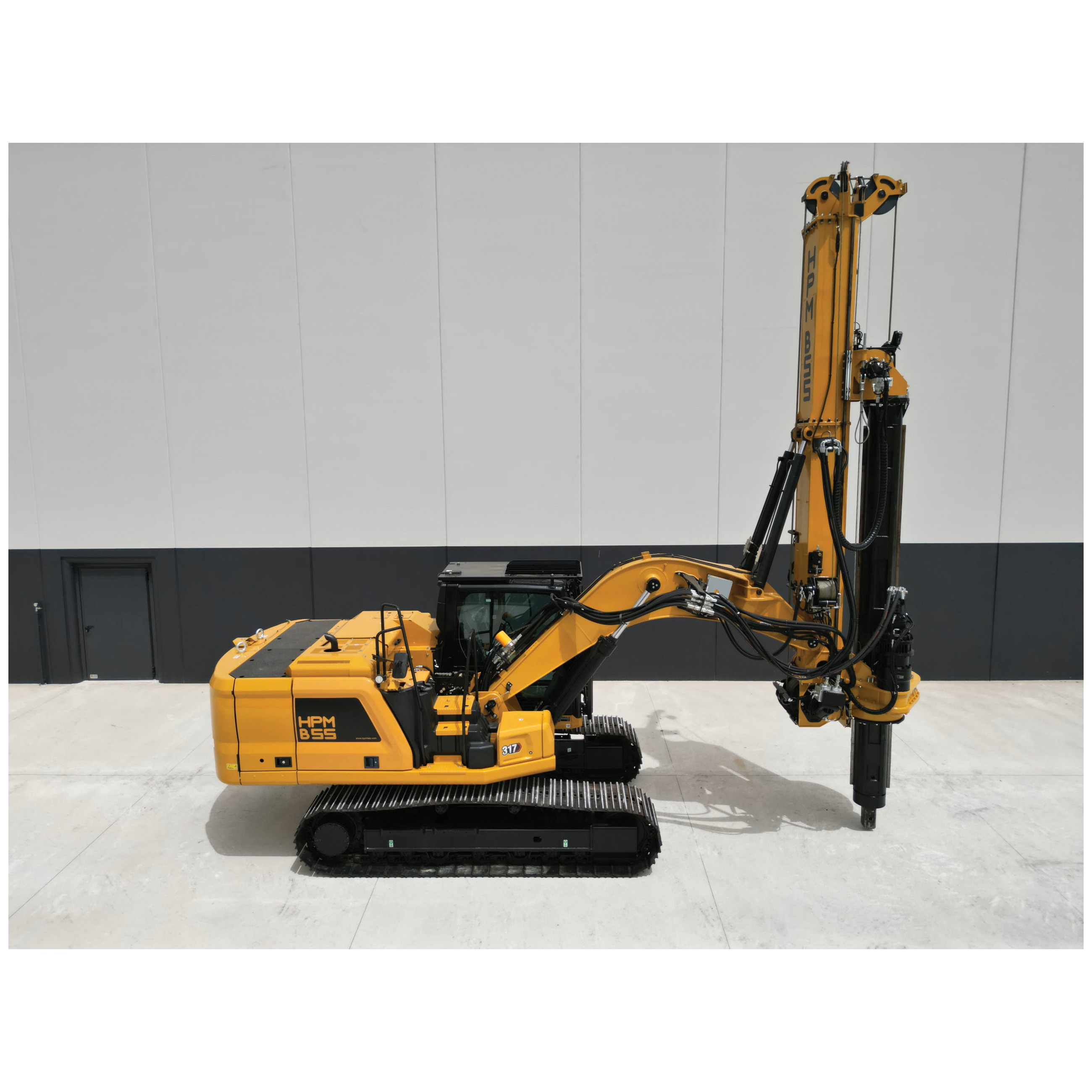

The newly designed articulation system allows the mast to reach difficult drilling points. Compared to the HPMs with standard kinematics system, these models have a great range of working radios making it ideal for applications such as utilities drilling, transmission lines and substation, drilling on a steep slopes and difficult ground.
HPM Drill Rig, Model: B55, New Condition, Base Machine Model: 317, 130 hp Engine Horsepower, CAT® Engine Manufacturer, 220 cu-in Engine Displacement, Standard Mast Configuration, 63500 ft-lb Rotary Nominal Torque, 56000 ft-lb Rotary Effective Torque, 7 to 30 rpm Working Speed, 60 to 100 rpm Discharge Speed, 61 ft Drilling Depth, 9 ft Drilling Diameter, 22000 lb Main Winch Capacity, 6750 lb Auxiliary Winch Capacity, Winch Crowd, 23150 lb Crowd Push/Pull Force, 13 ft 6 in Crowd Stroke, 56200 lb Operating Weight, 5/53 Standard Kelly Bar, Diesel Fuel, 71.6 gal Fuel Tank Capacity, Track Undercarriage, Remote Control, Add-On Options Available: Auxiliary Swing Brake, Biodegradable Hydraulic Oil, Pre-Disposition Casing Oscillator, Central Lubrication System, FOPS Cab, Remote Control, Self-Erecting Counterweight, Short Mast Kit, Universal Casing Joint, 38 ft 8 in L x 102 in W x 10 ft 2 in H
- Low-headroom Configuration - This HPM can be quickly and safely converted in Short Mast configuration allowing it to work in limited heights job sites, such as under bridges or below power lines
- Automatic Functions - Automatic functions allow the operator to reduce rig-up time and get the most in productivity. With a push of a button, the operator can make use of automatic functions, including: Verticality of the mast, Automatic Rig-up, Automatic return to drilling point and rotary auto drive
- Remote Control - Increase safety and flexibility when loading or unloading the equipment. The operator can make use of different viewing angles while moving the machine from outside the cabin. Having a complete view of the rig during these phases allows the operator to make sure that hoses, wirings and wire ropes are safely positioned. Drilling functions are enabled through the remote control for a safe service and maintenance of the rig
- Comfort Cabin - The HPM cabin is equipped with a comfy and wide adjustable seat. The standard automatic air conditioning keeps the cabin at the ideal temperature throughout the day. All machine interfaces are ergonomically positioned and designed for optimum control and efficiency. The easy accessible keyboards allow the operator to quickly get the rig ready to drill
- Drilling Cruise Control - The HPM software includes the enabling of the drilling cruise control. When the system is enabled, the operator can preselect the rotary gear so it's speed. With a push of a button the system can be activated and the operator can also lock the crowd pressure for a complete automatic drilling mode. Safety systems can disable the function immediately
- Dozer Blade - Integrating a heavy-duty dozer blade significantly elevates this drilling rig's versatility, providing the site-clearing agility of an excavator without compromising core foundation power. This hydraulic feature acts as a primary stabilizer, instantly leveling uneven terrain to prevent machine inclination and ensure a perfectly plumb mast
