| Additional Information | : | 4:1 Design Factor |
| Bend Radius | : | 2.8 in |
| Cover Material | : | Synthetic Rubber |
| Divisions | : | BLAZE |
| Divisions | : | JR |
| Divisions | : | OWEN |
| Divisions | : | RELIANCE |
| Hose Color | : | Black |
| Hose Type | : | Hydraulic |
| Inside Diameter | : | 1/2 in |
| Nominal Size | : | 1/2 in |
| Outside Diameter | : | 0.8 in |
| Pressure Rating | : | 22.5 MPa |
| Reinforcement | : | Steel Wire |
| Resistance Properties | : | Abrasion/Oil/Ozone/Weather |
| Temperature High | : | 100 deg C |
| Temperature Low | : | -40 deg C |
| Tube Material | : | Synthetic Rubber |
Recommended for high-pressure hydraulic oil line applications. Easy to route and to install in extremely tight areas. Exceeds ISO 18752 Grade B, SAE 100R17 and ISO11237 R17 working pressure, minimum bend radius requirements and performance requirements of EN 857 1SC. Recommended Couplings: GB Couplings (-4 to -16), MegaCrimp™ Couplings (-4 to -16), GlobalSpiral™ Couplings (-6 through -16), Power Crimp™ Couplings (-3), Stainless Steel B Couplings.

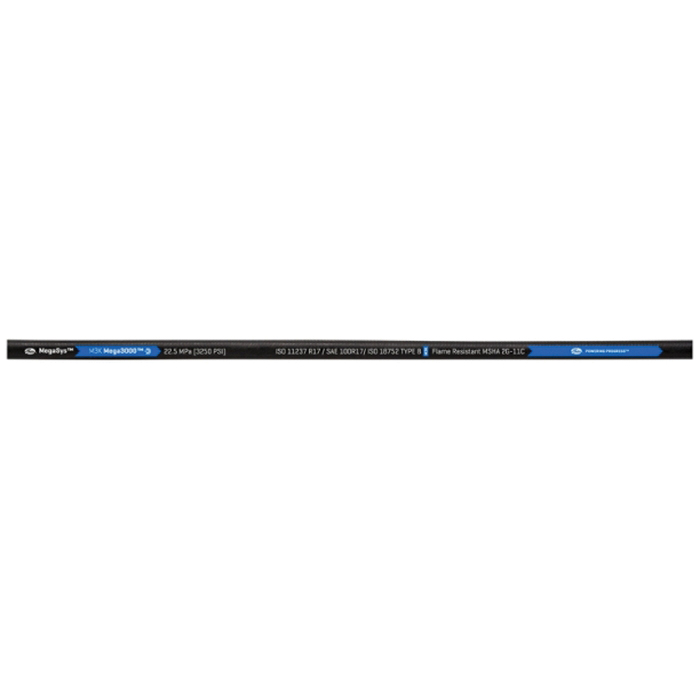

Gates® MEGA3000 Hose, Hydraulic Hose, 1/2 in Nominal, 1/2 in Inside Diameter, 0.8 in Outside Diameter, Synthetic Rubber Tube, Synthetic Rubber Cover, Steel Wire Reinforcement, Black Hose, 2.8 in Bend Radius, 22.5 MPa, Resistance Properties: Abrasion/Oil/Ozone/Weather, Temperature High: 100 deg C, Temperature Low: -40 deg C, Additional Information: 4:1 Design Factor
- M3K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
