| Bend Radius | : | 6 in |
| Cover Material | : | Polychloroprene |
| Dash Size | : | 16 |
| Hose Color | : | Black |
| Hose Type | : | Spiral Hose |
| Inside Diameter | : | 1 in |
| Nominal Size | : | 1 in |
| Outside Diameter | : | 1.53 in |
| Pressure Rating | : | 5000 psi |
| Reinforcement | : | Four Alternating Layers of Spiraled High Tensile Steel |
| Resistance Properties | : | Oil |
| Series | : | EFG5K Series |
| Temperature High | : | 250 deg F |
| Temperature Low | : | -40 deg F |
| Tube Material | : | Rubber |

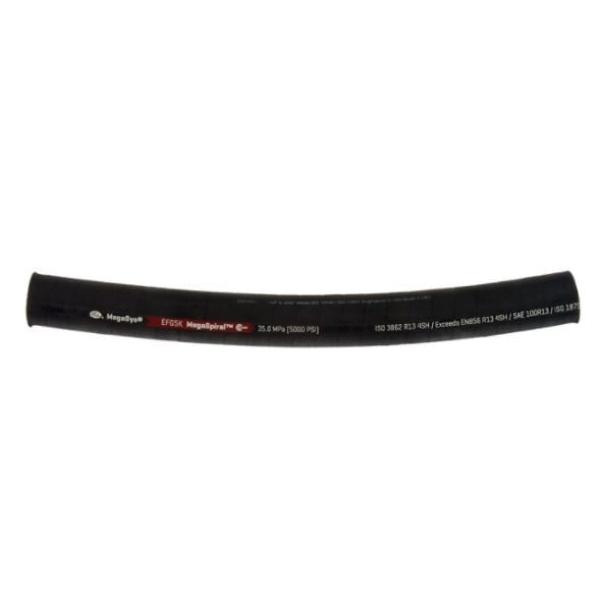

Gates® Hydraulic Spiral Hose, Series: EFG5K Series, Hose Type: Spiral Hose, 1 in Nominal, 16 Dash Size, 1 in Inside Dia, 1.53 in Outside Dia, Rubber Tube, Polychloroprene Cover, Four Alternating Layers of Spiraled High Tensile Steel Reinforcement, Black Hose Color, 6 in Bend Radius, 5000 psi, Oil Resistance Properties, 250 deg F Temperature High, -40 deg F Temperature Low
- EFG5K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
