| Bend Radius | : | 6 in |
| Cover Material | : | Polychloroprene |
| Dash Size | : | 16 |
| Hose Color | : | Black |
| Hose Type | : | Spiral Hose |
| Inside Diameter | : | 1 in |
| Nominal Size | : | 1 in |
| Outside Diameter | : | 1.53 in |
| Pressure Rating | : | 5000 psi |
| Reinforcement | : | Four Alternating Layers of Spiraled High Tensile Steel |
| Resistance Properties | : | Oil |
| Series | : | EFG5K Series |
| Temperature High | : | 250 deg F |
| Temperature Low | : | -40 deg F |
| Tube Material | : | Rubber |

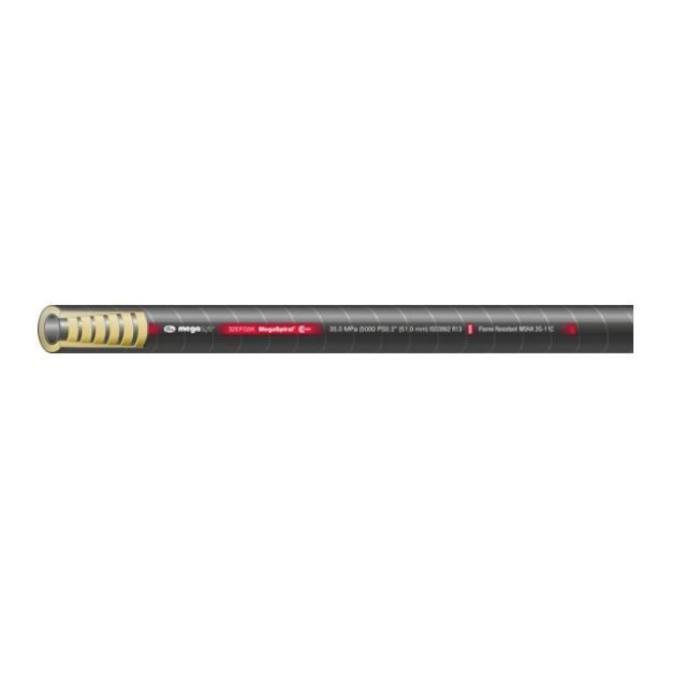

Gates® Hydraulic Spiral Hose, Series: EFG5K Series, Hose Type: Spiral Hose, 1 in Nominal, 16 Dash Size, 1 in Inside Dia, 1.53 in Outside Dia, Rubber Tube, Polychloroprene Cover, Four Alternating Layers of Spiraled High Tensile Steel Reinforcement, Black Hose Color, 6 in Bend Radius, 5000 psi, Oil Resistance Properties, 250 deg F Temperature High, -40 deg F Temperature Low
- EFG5K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
- Superior flex impulse performance tested to 1,000,000 impulse cycles at 50% of EN 856 R13 and SAE 100R13 bend radii
- Up to 40% of EN 856 4SP/4SH bend radius at rated working pressure
- EFG5K MegaSpiral™ is rated at 1/2 bend radius of SAE 100R13
- Meets flame-resistant acceptance designation MSHA 2G
- 5000 psi constant pressure for all ID's
- Black, oil-resistant, synthetic rubber (polychloroprene - Type A) with color-coded lay line cover
