FW Murphy® Swichgage® 20 Series Temperature Gauge, 130 to 250 deg F Temperature Rating, 4 ft L Capillary, 2-1/4 in L

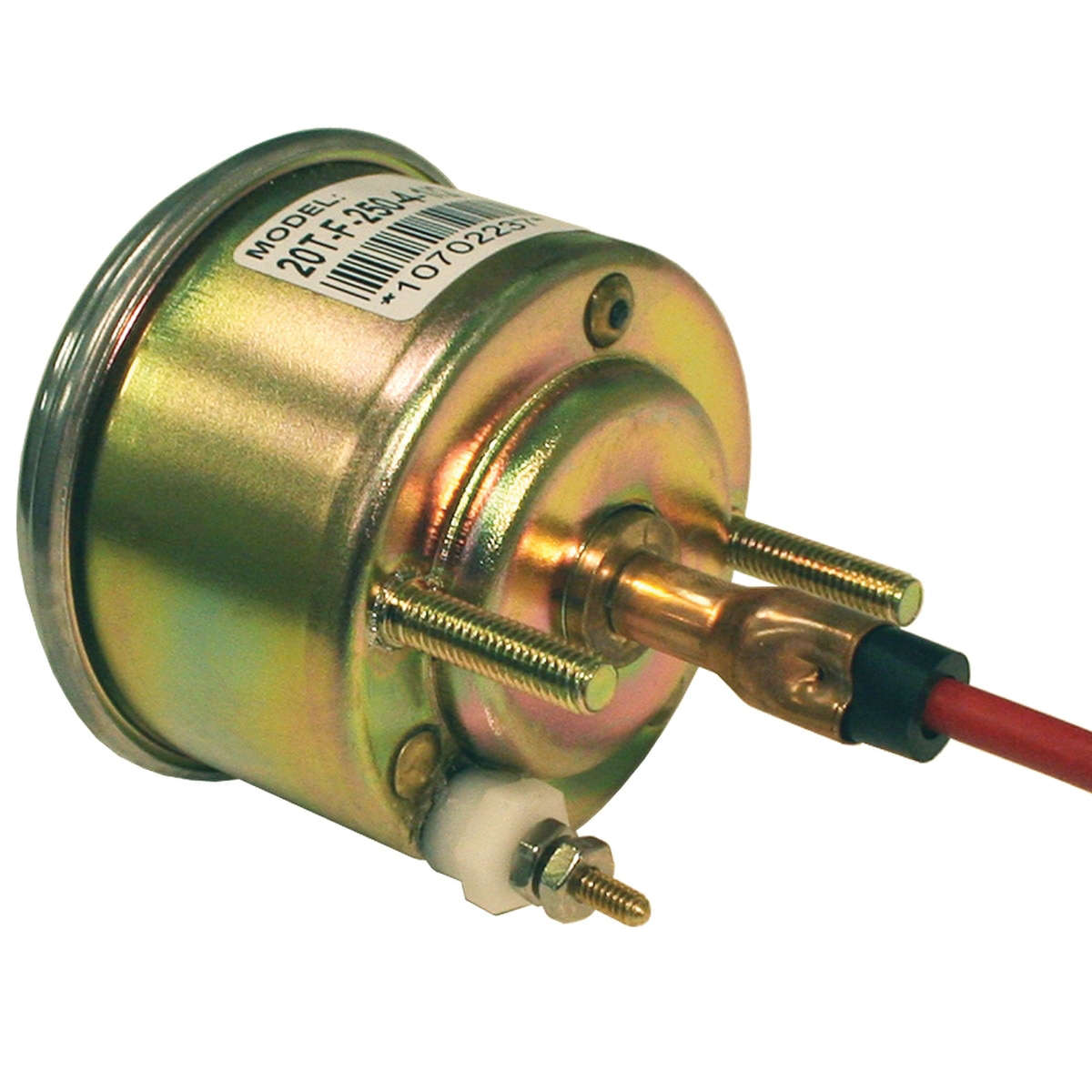

The 20T-F-250-4-1/2 is a 2" Temperature Swichgage®. This very popular design features a diaphragm-actuated, temperature-indicating gage, with a built-in electrical switch for tripping alarms and/or shutdown devices. This model has a 4-foot capillary length with a standard 1/2-14 NPT threading, and a temperature range from 130-250degF (54-121degC). This model also includes an "FS" stud for closed loop w/ 518 tattletale. The gage mechanism is enclosed in a steel case coated to resist corrosion. A polycarbonate, break-resistant lens and a polished, stainless steel bezel help protect this rugged, built-to-last instrument. This vapor actuated gage features a sealed capillary tube and a sensing bulb. When subjected to heat, the liquid in the sensing bulb changes to vapor creating pressure against the diaphragm mechanism. The diaphragm translates this vapor pressure into a mechanical gage reading. Inside the 20T-F-250-4-1/2, the gage pointer acts as a temperature indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact.

FW Murphy® Swichgage® Temperature Gauge, 20 Series, Specifications: 130 to 250 deg F Temperature Rating, 4 ft L Capillary, Polycarbonate/Stainless Steel, 2-1/4 in Diameter, 2-1/2 in Depth
