| Additional Information | : | 3650 lb Main Winch Capacity, 25999 lb Recommended GVWR |
| Condition | : | New |
| Dimensions | : | 11 ft 8 in H |
| Divisions | : | BLAZE |
| Divisions | : | JR |
| Divisions | : | OWEN |
| Divisions | : | RELIANCE |
| Lift Mechanism | : | Telescopic Boom |
| Maximum Horizontal Reach | : | 45 ft |
| Maximum Working Height | : | 45 ft |
| Model | : | I40F |
| Number of Occupants | : | 2 |
| Number of Sections | : | 3 |
| Outrigger Spread | : | 12 ft Front, 8 ft Rear |
| Outrigger Type | : | A Type Front, A Underslung Rear |
| Platform Height | : | 50 ft |
| Platform Load Capacity | : | 500 lb |
| Platform Size | : | 40 x 60 in |
| Platform Type | : | Insulated, Top-Mount |
| Weight | : | 16800 lb |

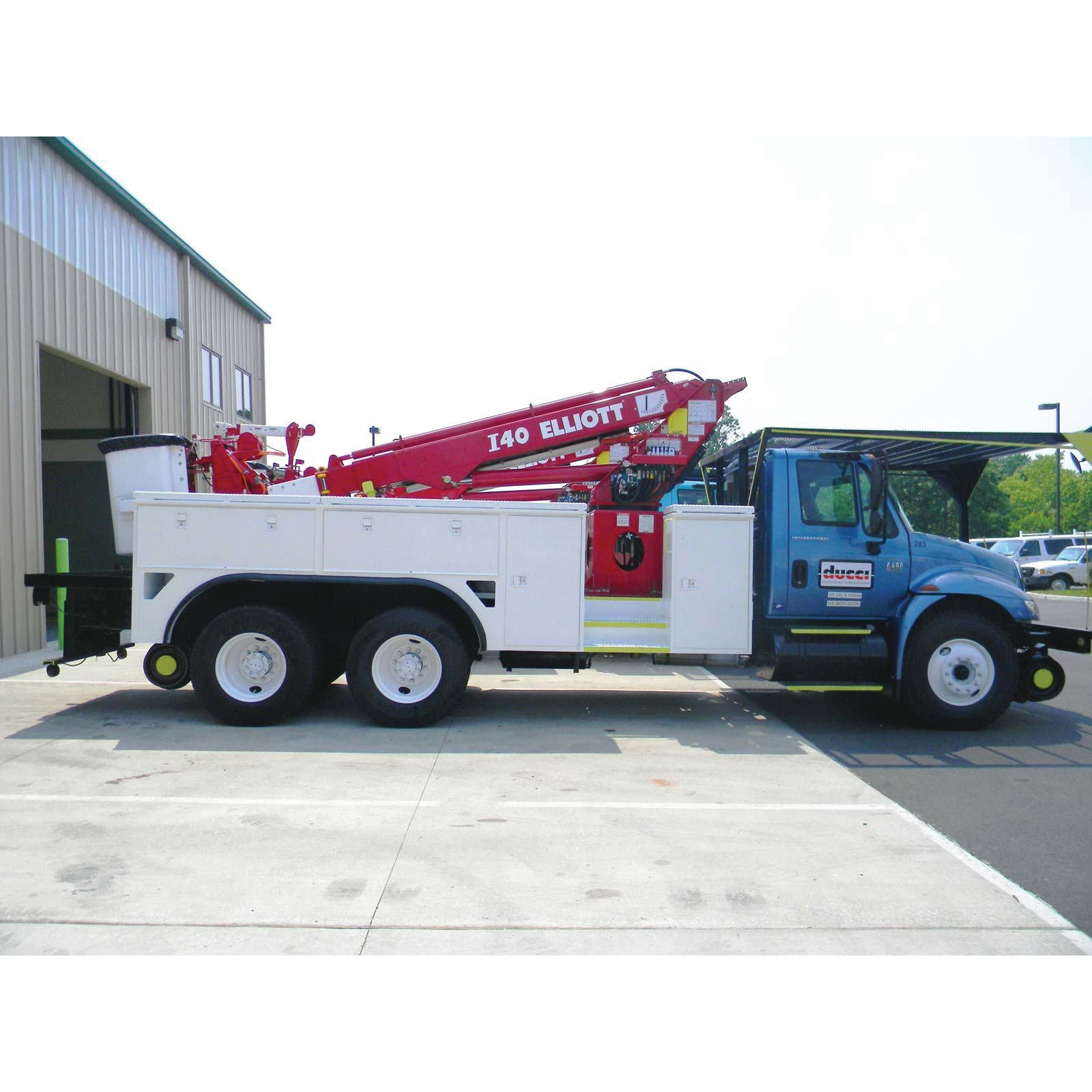

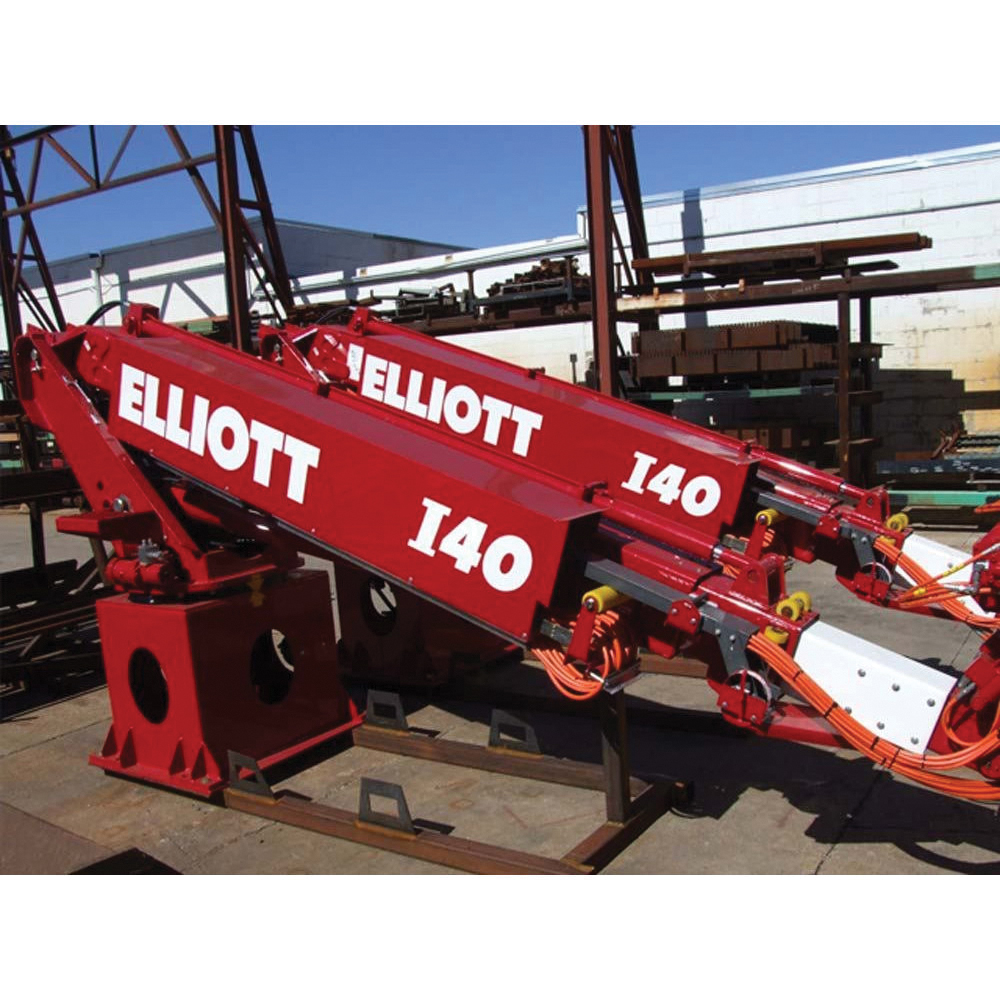

Elliott's I40F HiReach offers ANSI Category C (46kV) insulation along with a large two worker fiberglass platform and material handling. This additional space and multifunctionality improves efficiency and allows you do more with a single machine.
Elliott HiReach™ Aerial Work Platform, Model: I40F, New Condition, Insulated, Top-Mount Platform, 45 ft Maximum Working Height, 40 x 60 in Platform, 50 ft Platform Height, 45 ft Maximum Horizontal Reach, 500 lb Platform Load Capacity, 2 Occupants, Telescopic Boom Lift Mechanism, 3 Sections, A Type Front, A Underslung Rear Outrigger, 12 ft Front, 8 ft Rear Outrigger Spread, 11 ft 8 in H, 16800 lb Weight, Additional Information: 3650 lb Main Winch Capacity, 25999 lb Recommended GVWR
- COMPACT, CDL-FREE, AND READY FOR ANY JOB - Engineered for agility, the I40F navigates tight job sites with ease - thanks to one-sided outrigger deployment and full platform functionality, all without requiring a CDL
