Elliott HiReach™ I40F Aerial Work Platform, New Equipment, Insulated, Top-Mount Platform

Manufacturer: Elliott Equipment Company
Brand: Elliott
Item Number: I40F
MPN: I40F
CPN:
Model #: I40F
  • Heavy This item has special delivery requirements Please contact Owen Companies to order
    • Rental AVAILABLE
    Additional Information      :      3650 lb Main Winch Capacity, 25999 lb Recommended GVWR
    Condition      :      New
    Dimensions      :      11 ft 8 in H
    Lift Mechanism      :      Telescopic Boom
    Maximum Horizontal Reach      :      45 ft
    Maximum Working Height      :      45 ft
    Model      :      I40F
    Number of Occupants      :      2
    Number of Sections      :      3
    Outrigger Spread      :      12 ft Front, 8 ft Rear
    Outrigger Type      :      A Type Front, A Underslung Rear
    Platform Height      :      50 ft
    Platform Load Capacity      :      500 lb
    Platform Size      :      40 x 60 in
    Platform Type      :      Insulated, Top-Mount
    Weight      :      16800 lb

    Elliott's I40F HiReach offers ANSI Category C (46kV) insulation along with a large two worker fiberglass platform and material handling. This additional space and multifunctionality improves efficiency and allows you do more with a single machine.

    Elliott HiReach™ Aerial Work Platform, Model: I40F, New Condition, Insulated, Top-Mount Platform, 45 ft Maximum Working Height, 40 x 60 in Platform, 50 ft Platform Height, 45 ft Maximum Horizontal Reach, 500 lb Platform Load Capacity, 2 Occupants, Telescopic Boom Lift Mechanism, 3 Sections, A Type Front, A Underslung Rear Outrigger, 12 ft Front, 8 ft Rear Outrigger Spread, 11 ft 8 in H, 16800 lb Weight, Additional Information: 3650 lb Main Winch Capacity, 25999 lb Recommended GVWR

    • COMPACT, CDL-FREE, AND READY FOR ANY JOB - Engineered for agility, the I40F navigates tight job sites with ease - thanks to one-sided outrigger deployment and full platform functionality, all without requiring a CDL

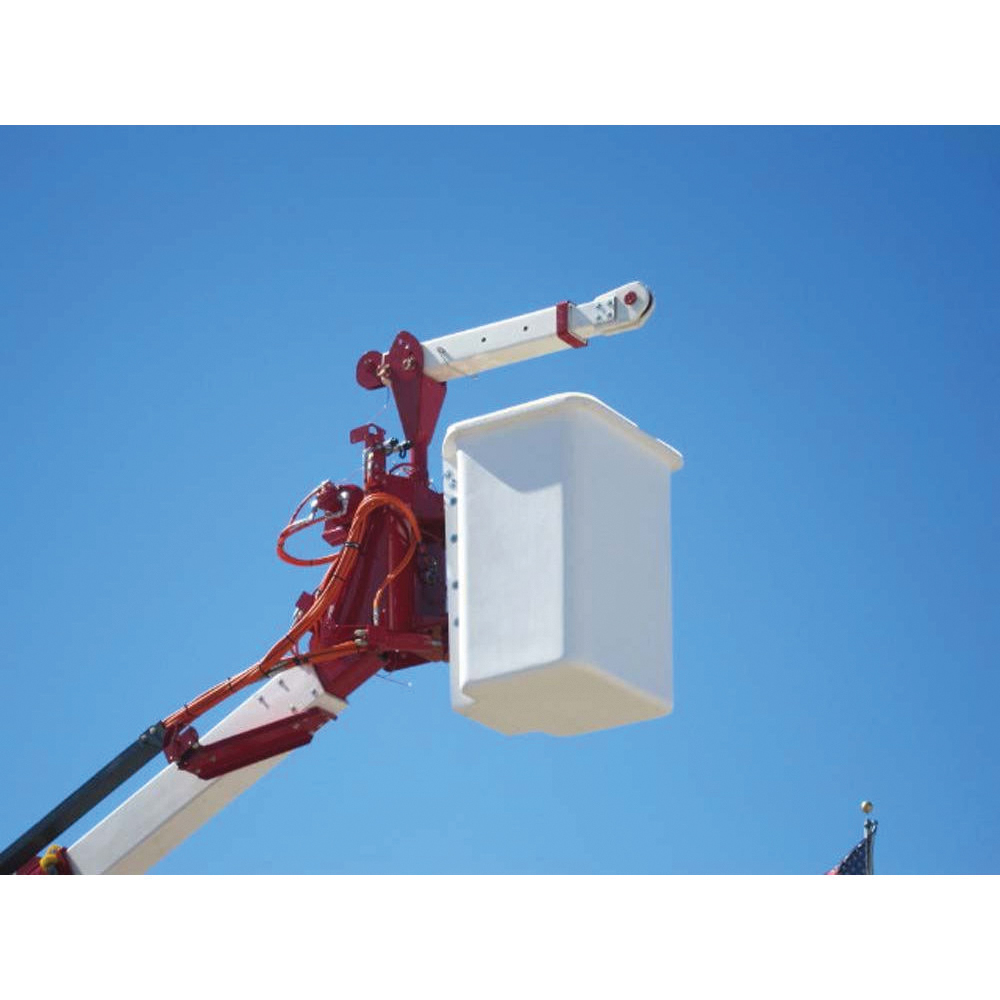

    • BUILT-IN MATERIAL HANDLING - No need for a second vehicle. The I40F includes a 500 lb platform jib and material handling capability at the platform, making it easy to lift tools and components directly where you need them
    • AMPLE STORAGE ON BOARD - Integrated toolboxes provide generous storage capacity, so you can bring everything you need to the job site without extra trips
    • YOUR WORKSHOP IN THE SKY - The I40F platform is designed for real productivity - featuring power outlets, welding leads, hydraulic tool ports, and more, right where the work happens
    • 160 deg PLATFORM ROTATION - Tackle challenging angles and hard-to-reach spots with ease. The rotating platform maximizes access and minimizes repositioning
