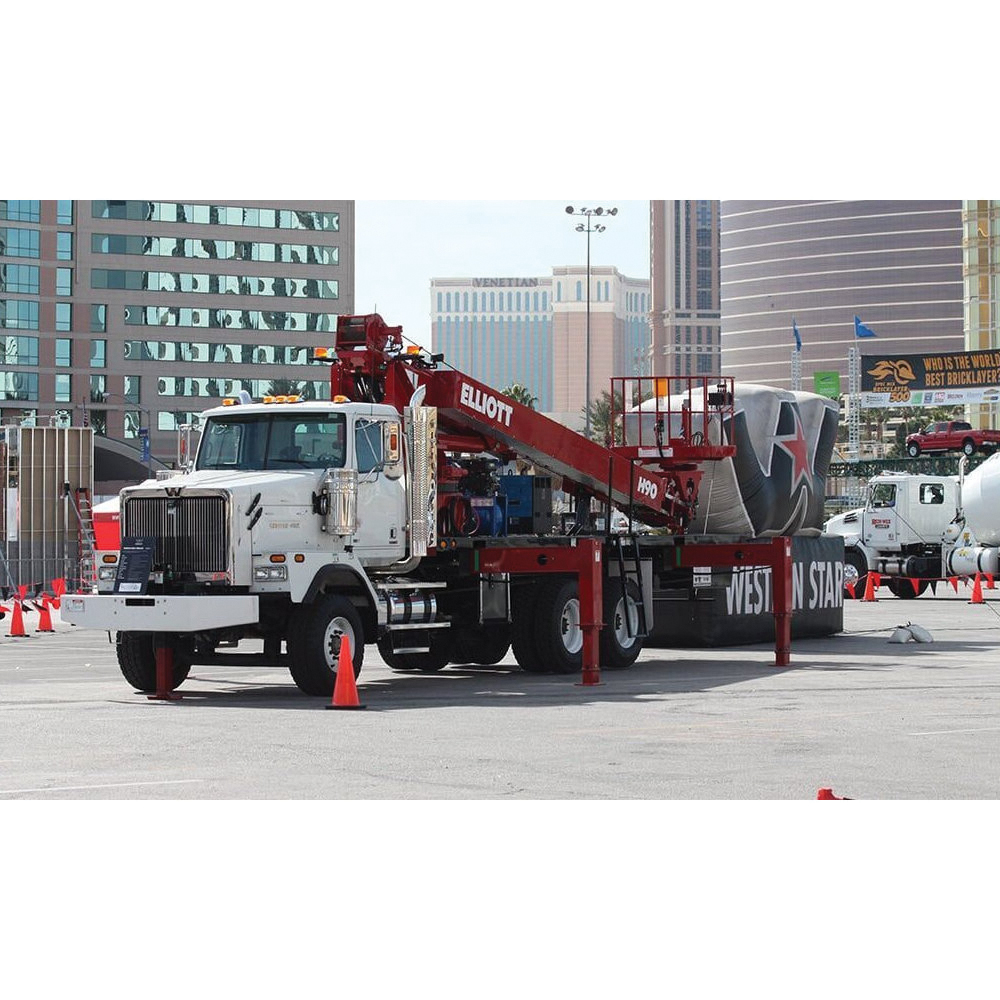

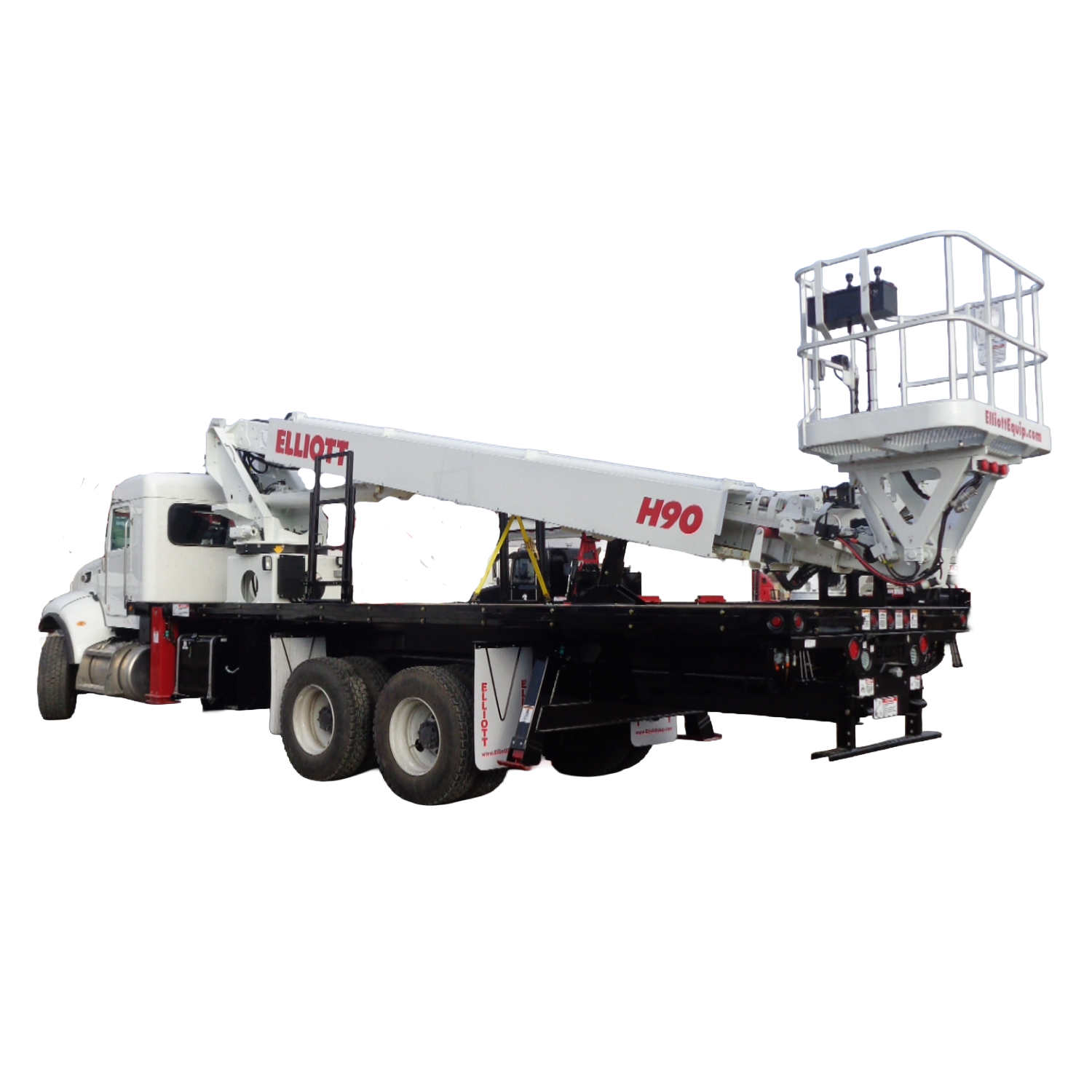

Elliott HiReach™ H90F Aerial Work Platform, New Equipment, Top-Mount Platform, 40 x 60 in Platform
This item has special delivery requirements
Please contact Owen Companies to order
| Add-On Options Available | : | Bed Accessory, Boom-Mounted Winch, Line Body, Material Handling Jib, Outrigger Extension, Outrigger Pad Holder, Platform Accessory, Radio Remote Control |
| Additional Information | : | 14000 lb Main Winch Capacity, 54000 lb Recommended GVWR |
| Condition | : | New |
| Dimensions | : | 32 ft 8 in L x 11 ft 10 in H |
| Divisions | : | BLAZE |
| Divisions | : | JR |
| Divisions | : | OWEN |
| Divisions | : | RELIANCE |
| Lift Mechanism | : | Telescopic Boom |
| Maximum Horizontal Reach | : | 61 ft |
| Maximum Working Height | : | 95 ft |
| Mobility Type | : | Wheeled |
| Model | : | H90F |
| Number of Occupants | : | 2 |
| Number of Sections | : | 4 |
| Outrigger Spread | : | 18 ft |
| Outrigger Type | : | Out-Down Front, A Underslung Rear |
| Platform Height | : | 85 ft |
| Platform Load Capacity | : | 500 lb |
| Platform Size | : | 40 x 60 in |
| Platform Type | : | Top-Mount |
| Weight | : | 21000 lb |
The Elliott H90F HiReach is built to thrive where others stop short. Designed for utility construction, electrical contracting, and mining applications, this powerhouse combines reach, strength, and multifunction capability to help you get more done with a single truck. With heavy-duty components, advanced controls, and customizable options, the H90F delivers reliable performance in even the harshest environments.
Elliott HiReach™ Aerial Work Platform, Model: H90F, New Condition, Top-Mount Platform, 95 ft Maximum Working Height, 40 x 60 in Platform, 85 ft Platform Height, 61 ft Maximum Horizontal Reach, 500 lb Platform Load Capacity, 2 Occupants, Telescopic Boom Lift Mechanism, 4 Sections, Out-Down Front, A Underslung Rear Outrigger, 18 ft Outrigger Spread, Wheeled Mobility, Add-On Options Available: Bed Accessory, Boom-Mounted Winch, Line Body, Material Handling Jib, Outrigger Extension, Outrigger Pad Holder, Platform Accessory, Radio Remote Control, 32 ft 8 in L x 11 ft 10 in H, 21000 lb Weight, Additional Information: 14000 lb Main Winch Capacity, 54000 lb Recommended GVWR
- WORK SMARTER. REACH FARTHER. - With a 95-foot working height and 61 feet of side reach, the H90F gives crews unmatched versatility for transmission, infrastructure, and maintenance work - all while maintaining zero tailswing for safe operation in confined or obstacle-heavy environments
