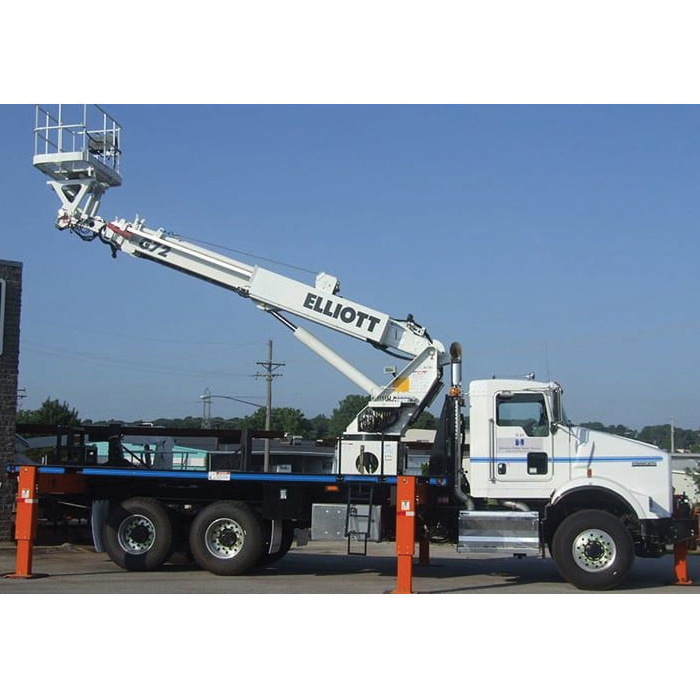

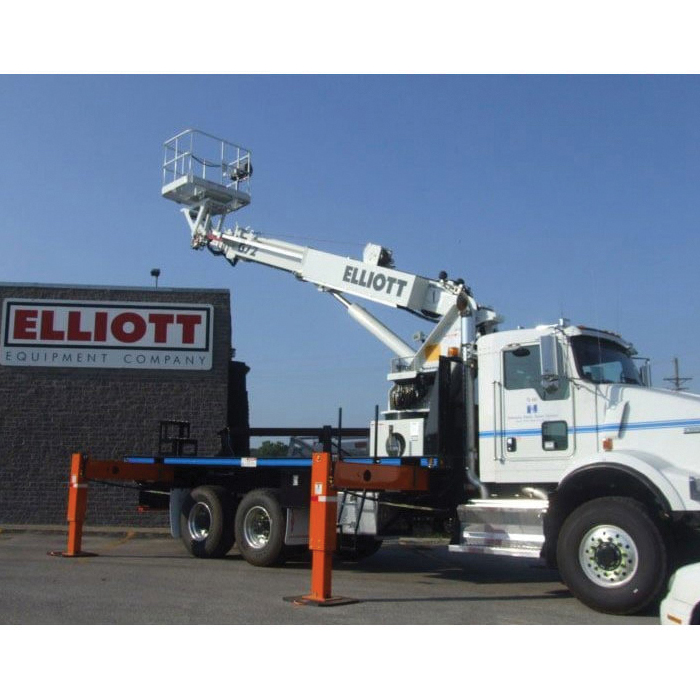

Elliott HiReach™ G72F Aerial Work Platform, New Equipment, Top-Mount Platform, 40 x 60 in Platform

Manufacturer: Elliott Equipment Company
Brand: Elliott
Item Number: G72F
MPN: G72F
CPN:
Model #: G72F
  • Heavy This item has special delivery requirements Please contact Owen Companies to order
    • Rental AVAILABLE
    Add-On Options Available      :      Bed Accessory, Boom-Mounted Winch, Line Body, Material Handling Jib, MH Outriggers with Short Jacking, Outrigger Extension, Outrigger Pad Holder, Platform Accessory
    Additional Information      :      5900 lb Main Winch Capacity, 33000 lb Recommended GVWR
    Condition      :      New
    Dimensions      :      34 ft 8 in L x 11 ft 10 in H
    Divisions      :      BLAZE
    Divisions      :      JR
    Divisions      :      OWEN
    Divisions      :      RELIANCE
    Lift Mechanism      :      Telescopic Boom
    Maximum Horizontal Reach      :      63 ft
    Maximum Working Height      :      77 ft
    Mobility Type      :      Wheeled
    Model      :      G72F
    Number of Occupants      :      2
    Number of Sections      :      4
    Outrigger Spread      :      18 ft Front, 8 ft Rear
    Outrigger Type      :      Out-Down Front, A Underslung Rear
    Platform Height      :      72 ft
    Platform Load Capacity      :      600 lb
    Platform Size      :      40 x 60 in
    Platform Type      :      Top-Mount
    Weight      :      17200 lb

    Elliott's G72F HiReach is designed to withstand the rigors of the most challenging applications. With an exceptionally long useful life and multifunction capability, the G72F is an investment you can count on.

    Elliott HiReach™ Aerial Work Platform, Model: G72F, New Condition, Top-Mount Platform, 77 ft Maximum Working Height, 40 x 60 in Platform, 72 ft Platform Height, 63 ft Maximum Horizontal Reach, 600 lb Platform Load Capacity, 2 Occupants, Telescopic Boom Lift Mechanism, 4 Sections, Out-Down Front, A Underslung Rear Outrigger, 18 ft Front, 8 ft Rear Outrigger Spread, Wheeled Mobility, Add-On Options Available: Bed Accessory, Boom-Mounted Winch, Line Body, Material Handling Jib, MH Outriggers with Short Jacking, Outrigger Extension, Outrigger Pad Holder, Platform Accessory, 34 ft 8 in L x 11 ft 10 in H, 17200 lb Weight, Additional Information: 5900 lb Main Winch Capacity, 33000 lb Recommended GVWR

      40"x60" work platform provides twice the work area of a two-worker bucket
