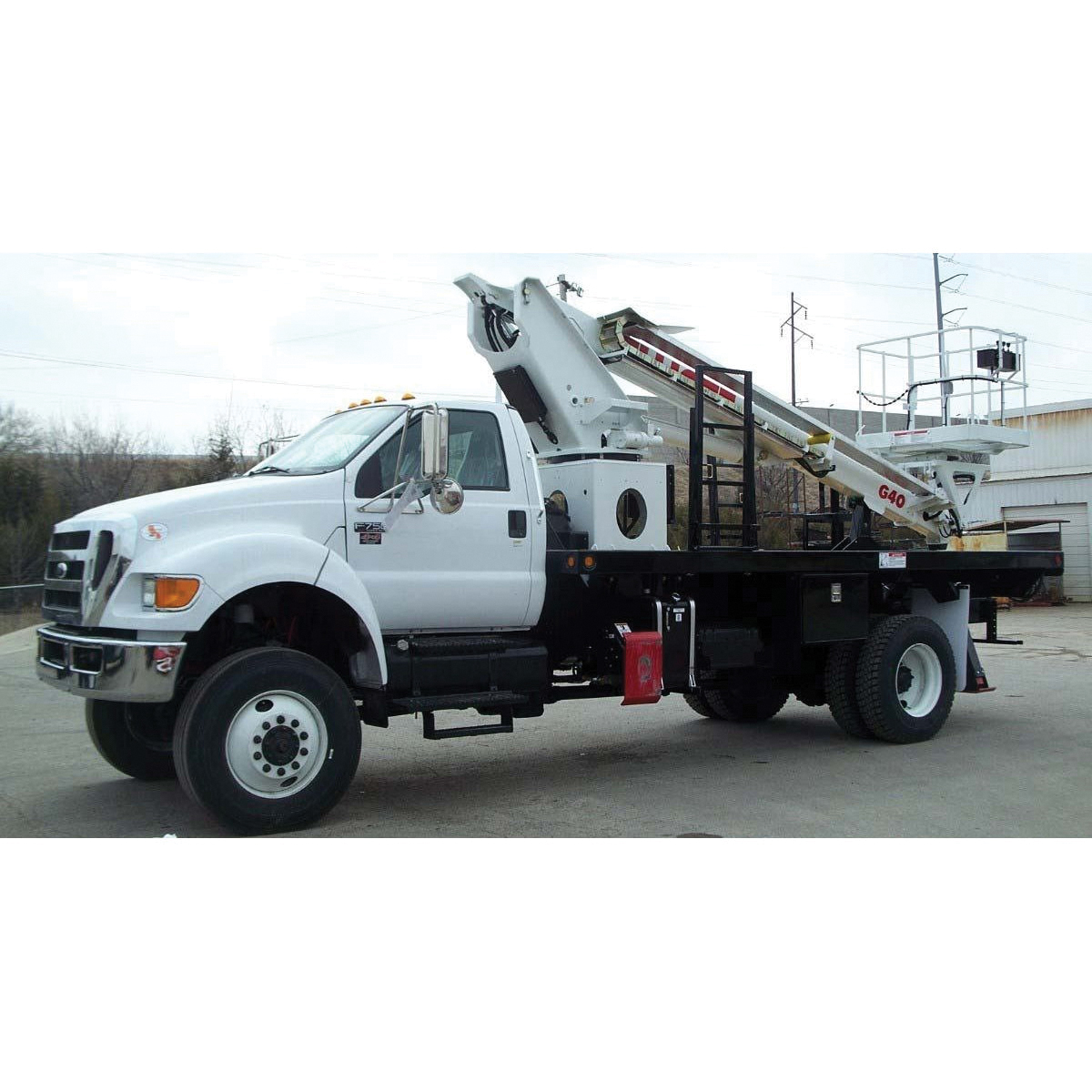

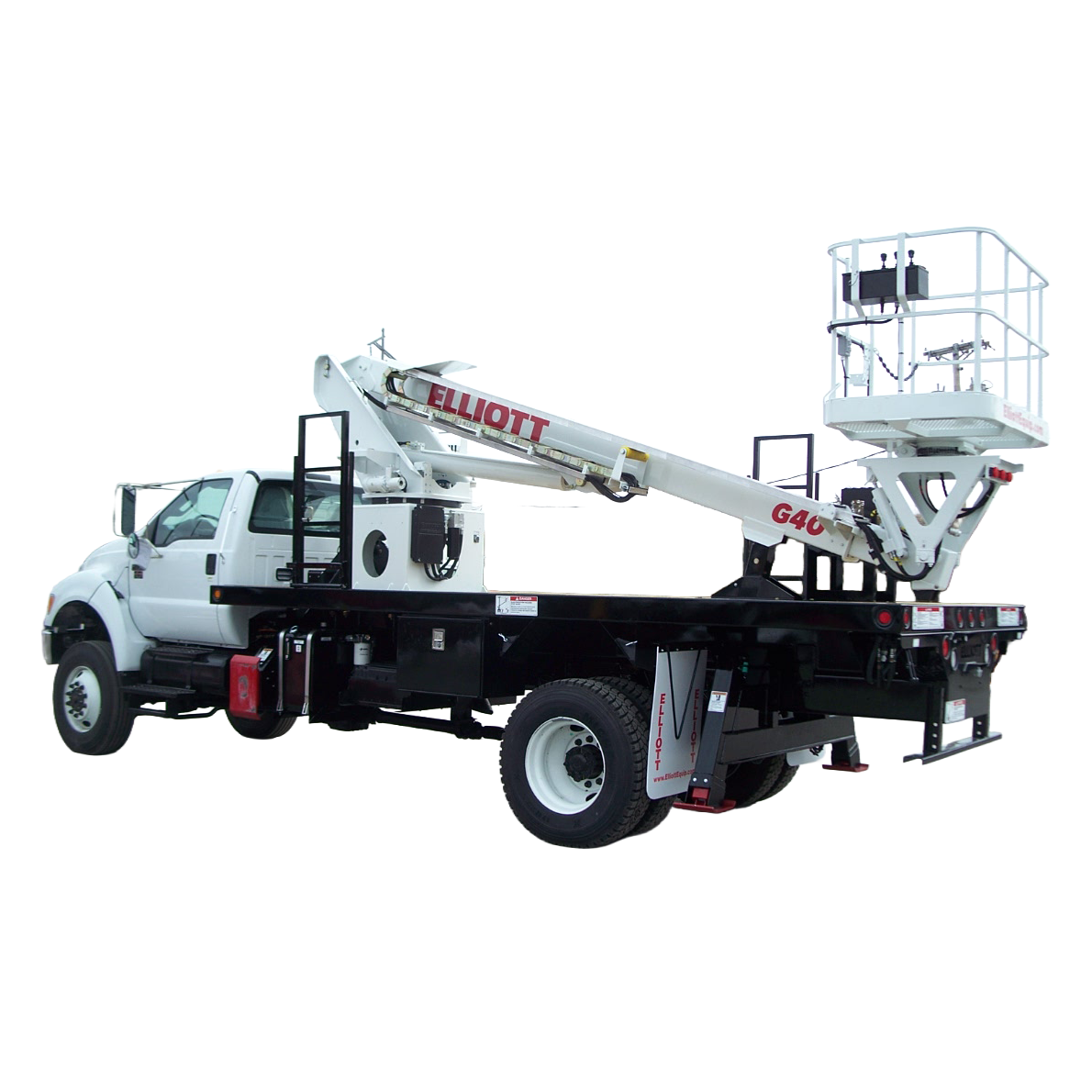

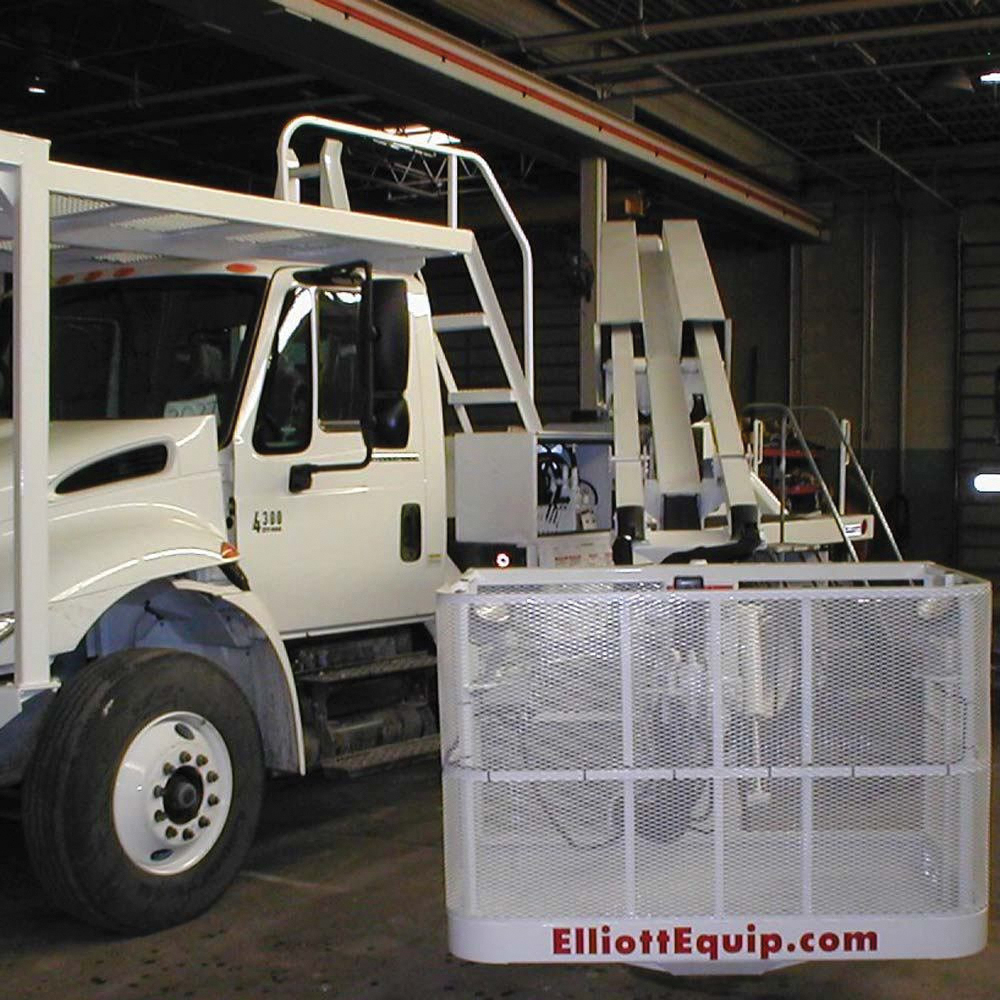

Elliott HiReach™ G40F Aerial Work Platform, New Equipment, Top-Mount Platform, 40 x 60 in Platform

Manufacturer: Elliott Equipment Company
Brand: Elliott
Item Number: G40F
MPN: G40F
CPN:
Model #: G40F
  • Heavy This item has special delivery requirements Please contact Owen Companies to order
    • Rental AVAILABLE
    Add-On Options Available      :      Bed Accessory, Boom-Mounted Winch, Line Body, Material Handling Jib, Outrigger Pad Holder, Platform Accessory, Radio Remote Control
    Additional Information      :      5900 lb Main Winch Capacity, 25999 lb Recommended GVWR
    Condition      :      New
    Control System      :      DynaSmooth
    Dimensions      :      28 ft 5 in L x 11 ft 3 in H
    Divisions      :      BLAZE
    Divisions      :      JR
    Divisions      :      OWEN
    Divisions      :      RELIANCE
    Lift Mechanism      :      Telescopic Boom
    Maximum Horizontal Reach      :      30 ft
    Maximum Working Height      :      45 ft
    Mobility Type      :      Wheeled
    Model      :      G40F
    Number of Occupants      :      2
    Number of Sections      :      3
    Outrigger Spread      :      12 ft 6 in Front, 8 ft Rear
    Outrigger Type      :      A Type Front, A Underslung Rear
    Platform Height      :      40 ft
    Platform Load Capacity      :      1000 lb
    Platform Size      :      40 x 60 in
    Platform Type      :      Top-Mount
    Weight      :      10000 lb

    The Elliott G40 is a rugged, no-tailswing material handling aerial work platform engineered for serious lifting and high-access performance in tight urban, rail and industrial environments. With a spacious platform, heavy-duty design, and full ANSI A92.2 compliance, the G40 delivers reliable reach, customizable configurations, and exceptional load-handling capability - without sacrificing maneuverability. Whether you need lifting power, platform space, or flexible mounting options, the G40 is built to do the job, your way.

    Elliott HiReach™ Aerial Work Platform, Model: G40F, New Condition, Top-Mount Platform, 45 ft Maximum Working Height, 40 x 60 in Platform, 40 ft Platform Height, 30 ft Maximum Horizontal Reach, 1000 lb Platform Load Capacity, 2 Occupants, Telescopic Boom Lift Mechanism, 3 Sections, A Type Front, A Underslung Rear Outrigger, 12 ft 6 in Front, 8 ft Rear Outrigger Spread, Wheeled Mobility, DynaSmooth Control System, Add-On Options Available: Bed Accessory, Boom-Mounted Winch, Line Body, Material Handling Jib, Outrigger Pad Holder, Platform Accessory, Radio Remote Control, 28 ft 5 in L x 11 ft 3 in H, 10000 lb Weight, Additional Information: 5900 lb Main Winch Capacity, 25999 lb Recommended GVWR

      HYDRAULIC STEEL BOOM FOR A SMOOTHER RIDE - The G40F's steel boom extends hydraulically - no cables or chains - for a smoother, quieter ride and less long-term maintenance, even in demanding environments
