| Add-On Options Available | : | 110 V Auxiliary Power, Automatic Rotation Lockout, Below Bed Tool Circuit, Hydraulic Tank Heater, Outrigger Pad Holder, Safety Lighting |
| Additional Information | : | 30000 lb Main Winch Capacity, 108000 lb Recommended GVWR |
| Condition | : | New |
| Dimensions | : | 12 ft 11 in H |
| Maximum Horizontal Reach | : | 90 ft |
| Maximum Working Height | : | 190 ft Main Boom, 238 ft Jib |
| Model | : | E190 |
| Number of Sections | : | 5 |
| Outrigger Spread | : | 26 ft 2 in |
| Outrigger Type | : | EZ Crib®, Out-Down |
| Platform Load Capacity | : | 1200 lb |

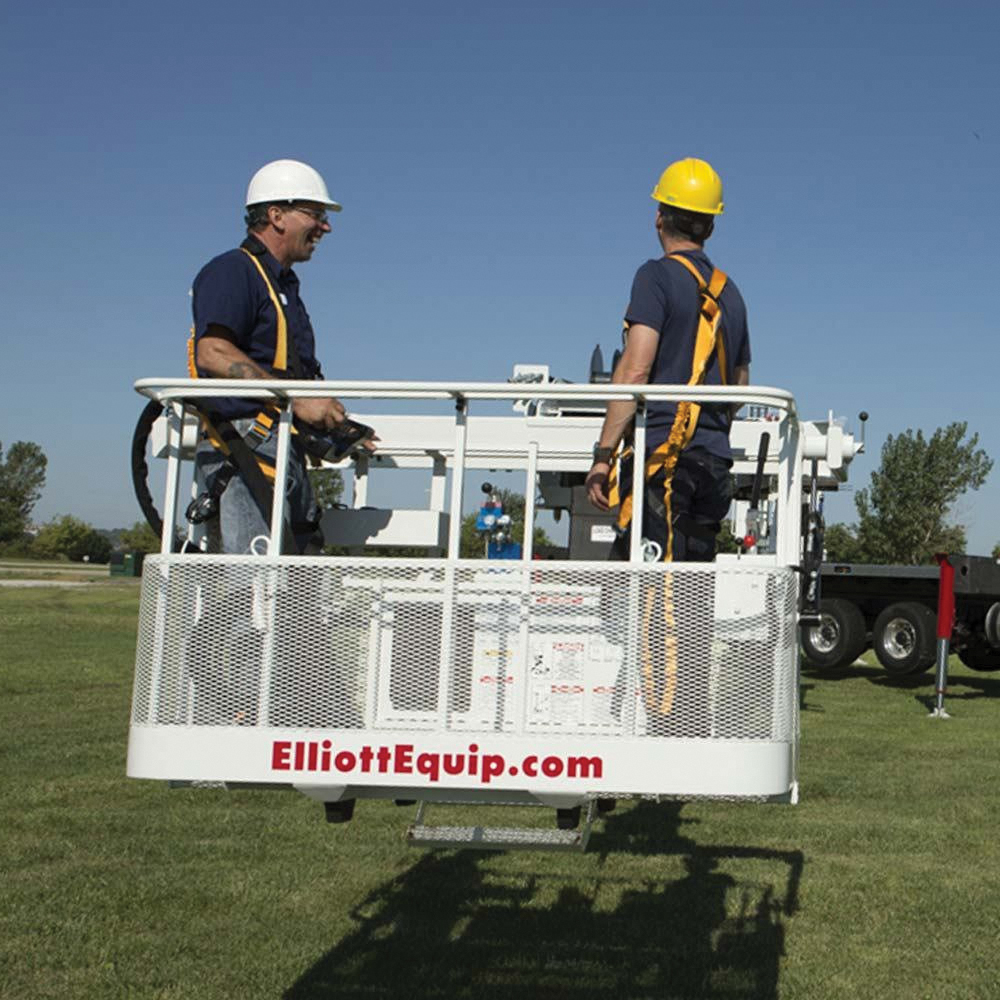

| Platform Size | : | 36 x 72 in |
| Platform Type | : | Detachable, Yoke-Mount |

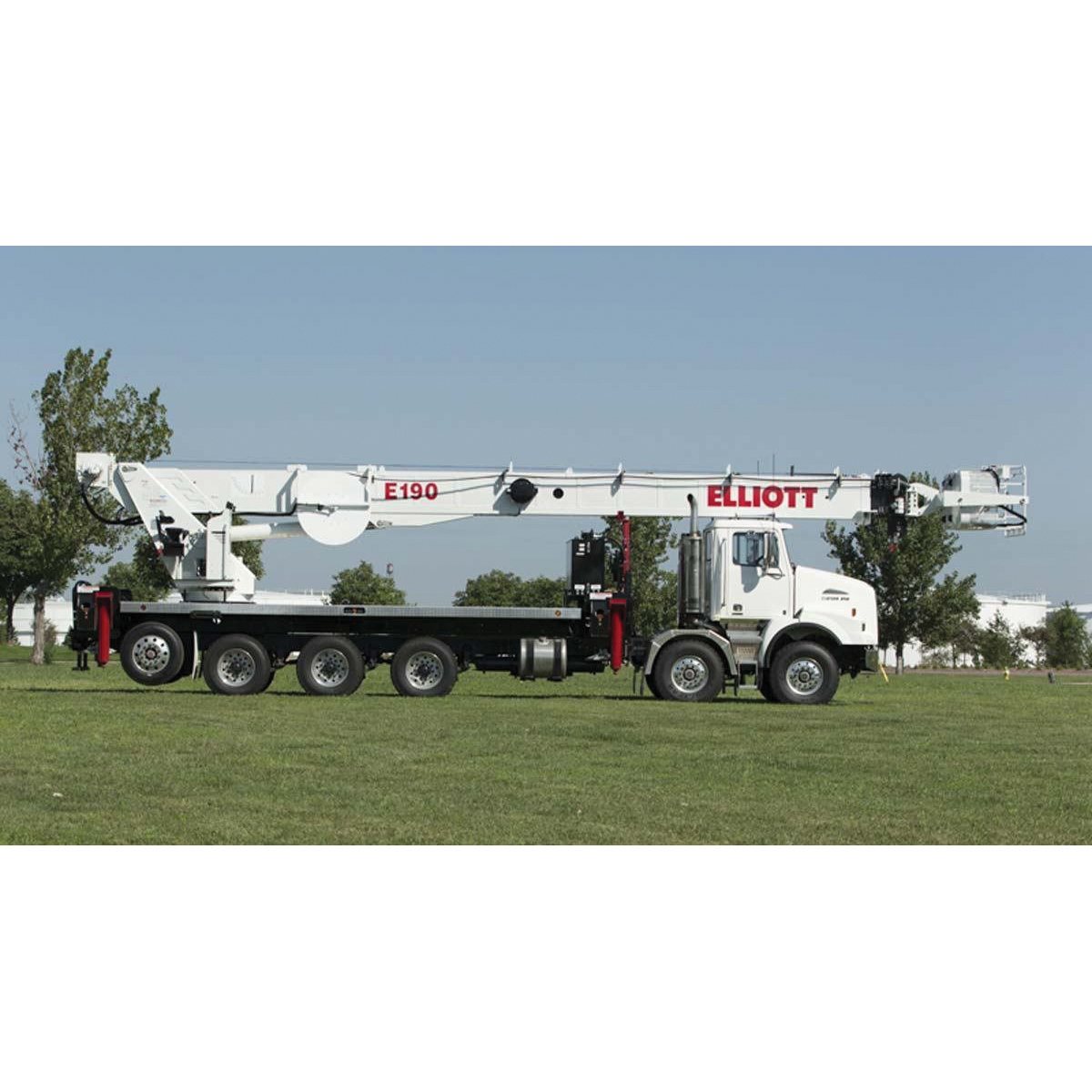

Purpose-Built for Transmission's Tallest Challenges The Elliott E190 is the tallest purpose-built material handling aerial work platform on the market - engineered specifically for transmission line construction equipment needs. With 190 feet of fully powered vertical reach and a total working height of up to 240 feet, this machine eliminates the need for cranes or retrofitted lifts in many applications - delivering safe, stable access to even the highest work zones. As a true ANSI A92.2 compliant lift, the E190 meets rigorous standards for structural integrity, hydraulic burst protection, and stability. With a 30 mph wind rating, built-in anemometer, EZ Crib® outriggers, and industry-leading operator control performance, the E190 is built to take on the toughest jobs in the utility transmission field - safely, efficiently, and reliably.
Elliott E-Line™ Aerial Work Platform, Model: E190, New Condition, Detachable, Yoke-Mount Platform, 190 ft Main Boom, 238 ft Jib Maximum Working Height, 36 x 72 in Platform, 90 ft Maximum Horizontal Reach, 1200 lb Platform Load Capacity, 5 Sections, EZ Crib®, Out-Down Outrigger, 26 ft 2 in Outrigger Spread, Add-On Options Available: 110 V Auxiliary Power, Automatic Rotation Lockout, Below Bed Tool Circuit, Hydraulic Tank Heater, Outrigger Pad Holder, Safety Lighting, 12 ft 11 in H, Additional Information: 30000 lb Main Winch Capacity, 108000 lb Recommended GVWR
- Maximum Reach with Confidence - The E190 offers 190 feet of powered reach and a total working height of 240 feet, making it the tallest 240-foot aerial lift specifically designed for power line and substation work. It's a single-machine solution for high-reach, high-stakes jobs
- Purpose-Built Transmission Performance - This isn't a modified bucket or adapted crane. The E190 is engineered from the ground up for utility transmission line construction, with direct input from linemen, fleet leaders, and safety teams
- A92.2-Compliant Material Handling - All material handling features - including winch, platform lift, and hydraulic systems - are fully certified to ANSI A92.2 compliant lift standards for structural strength, burst protection, and stability. You get the reach without compromising safety
- EZ Crib® High-Penetration Outriggers - Elliott's exclusive EZ Crib outriggers reduce cribbing requirements, simplifying setup and easing physical strain on the crew. More time in the air, less time on the ground
- Built to Perform in Real-World Conditions - The E190 is rated for 30 mph wind loads on the main boom and includes a standard anemometer, giving you confidence to work productively in conditions that ground other machines

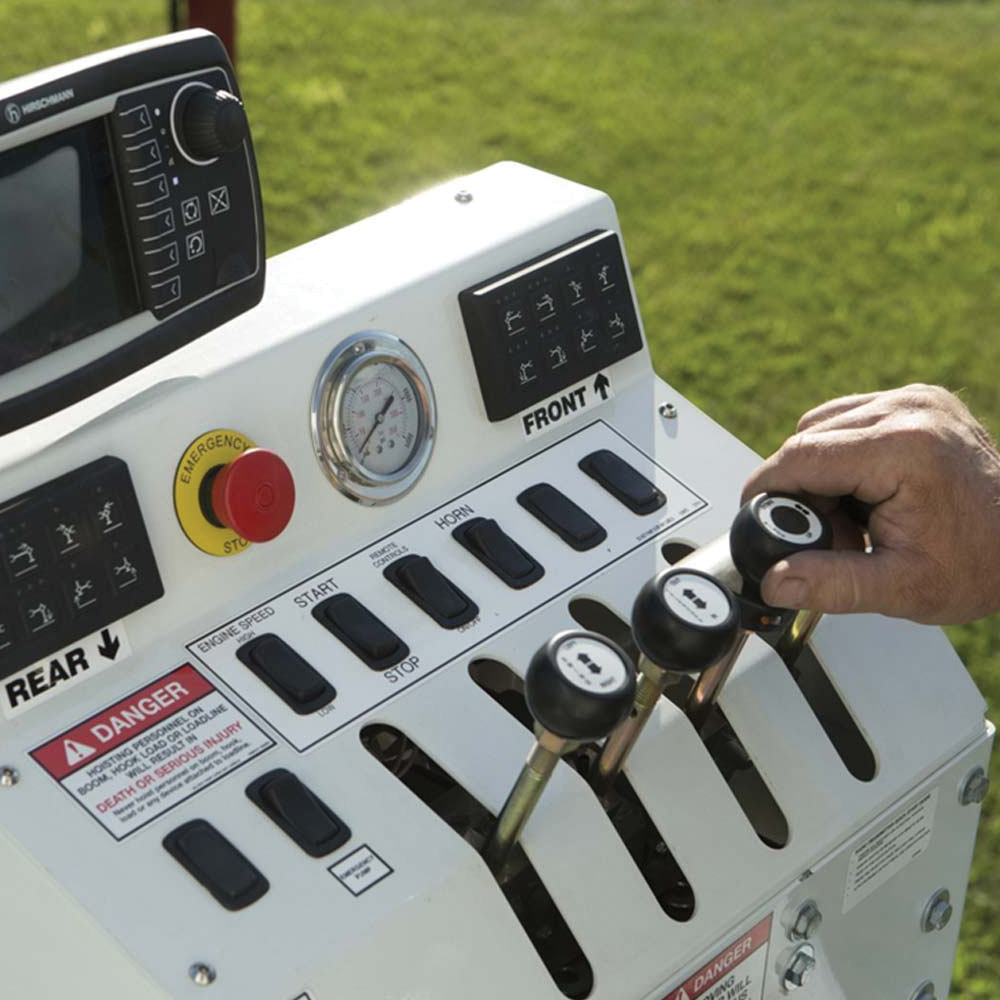

- Operator-Centric Control Performance - Smooth, intuitive controls mean operators can work with precision and stability at full extension - reducing rework and increasing productivity with every shift
- Long-Term ROI, Built-In - By replacing cranes and other specialty gear, the E190 helps fleet managers cut job time, reduce equipment moves, and lower total cost per project. Durable components, intuitive operation, and reduced setup all add up to faster return on investment
- Built For You - Every Elliott aerial is designed for real-world jobsite performance, and the E190 leads the way. From its exceptional height and power to its operator-friendly controls and durable build, this is transmission line construction equipment that delivers - day after day, job after job
