| Add-On Options Available | : | Bed-Mounted Accessory and Custom Tool Storage Solution, Enclosed Steel Control Cab, Isolating Platform Yoke, Multiple Platform Configuration and Rapid Mode Changeover, Outrigger Pad Holder, Safety Lighting, Work Area Definition System |
| Additional Information | : | 62500 lb Recommended GVWR |
| Condition | : | New |
| Dimensions | : | 12 ft 6 in H |
| Maximum Horizontal Reach | : | 70 ft |
| Maximum Working Height | : | 150 ft |
| Model | : | E150i |
| Number of Sections | : | 5 |
| Outrigger Spread | : | 21 ft 2 in |
| Outrigger Type | : | EZ Crib® |
| Platform Height | : | 130 ft |
| Platform Load Capacity | : | 1000 lb |
| Platform Size | : | 24 x 60 in Articulating, 40 x 72 in Telescopic |
| Platform Type | : | Rotating |
The E150i is engineered to solve real transmission challenges - combining lifting, positioning, and insulating capabilities in one rugged, configurable platform. Designed in partnership with utility professionals, the E150i features Elliott's patented interchangeable boom system, giving you the flexibility to perform a wide range of tasks with a single machine. Whether you're working around energized lines or deep inside a substation, the E150i delivers performance, safety, and return on investment like no other.
Elliott E-Line™ Aerial Work Platform, Model: E150i, New Condition, Rotating Platform, 150 ft Maximum Working Height, 24 x 60 in Articulating, 40 x 72 in Telescopic Platform, 130 ft Platform Height, 70 ft Maximum Horizontal Reach, 1000 lb Platform Load Capacity, 5 Sections, EZ Crib® Outrigger, 21 ft 2 in Outrigger Spread, Add-On Options Available: Bed-Mounted Accessory and Custom Tool Storage Solution, Enclosed Steel Control Cab, Isolating Platform Yoke, Multiple Platform Configuration and Rapid Mode Changeover, Outrigger Pad Holder, Safety Lighting, Work Area Definition System, 12 ft 6 in H, Additional Information: 62500 lb Recommended GVWR
- Do More with One Machine - Interchangeable boom system performs the work of five units, cutting fleet size and maintenance costs
- Maximize Utilization - Easily switch between configurations to match each job, boosting ROI across your fleet
- Go Where Others Can't - 60 deg over center articulation allows up-and-under access between phases and in tight substation environments
- 500kV Insulating Boom Option - Fiberglass articulating boom includes corona ring, VON leakage monitor, and desiccant filter for live-line work
- Steel Boom Storage - Switch to a steel articulating boom to protect and store your fiberglass boom when insulation isn't needed
- Heavy-Duty Lifting - 30,000 lb main boom capacity plus a 1,000 lb platform material handling mode
- Faster, Safer Setup - EZ Crib outriggers offer 30″ of extra vertical reach, reducing the need for heavy cribbing

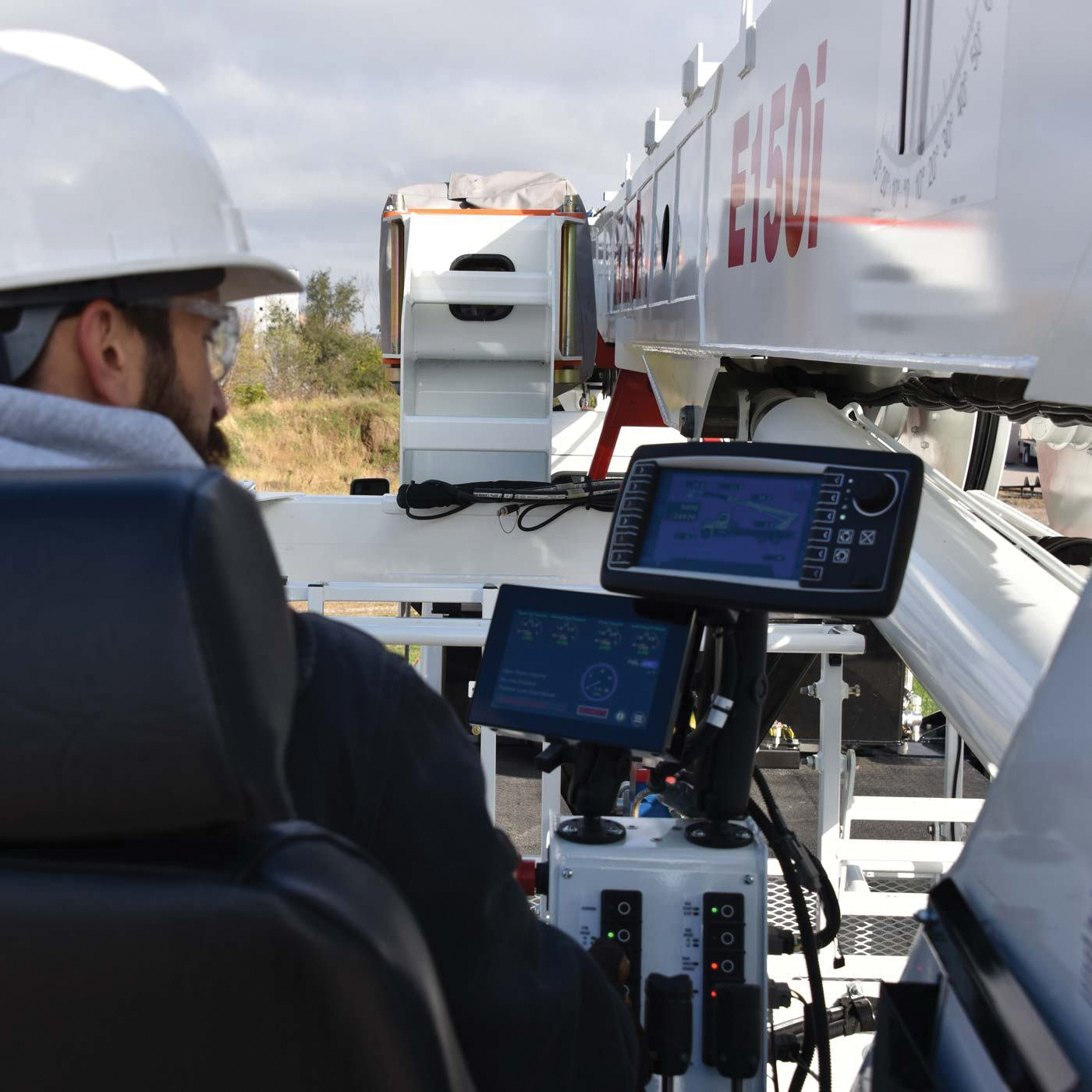

- Smarter Controls - Smooth operation with tailored envelopes delivers precise, reliable performance at any height
- Built to Last - Reinforced structural components ensure durability, ride stability, and extended service life
- Compliant and Covered - Meets ANSI A92.2 standards in all modes and backed by Elliott's lifetime structural warranty
