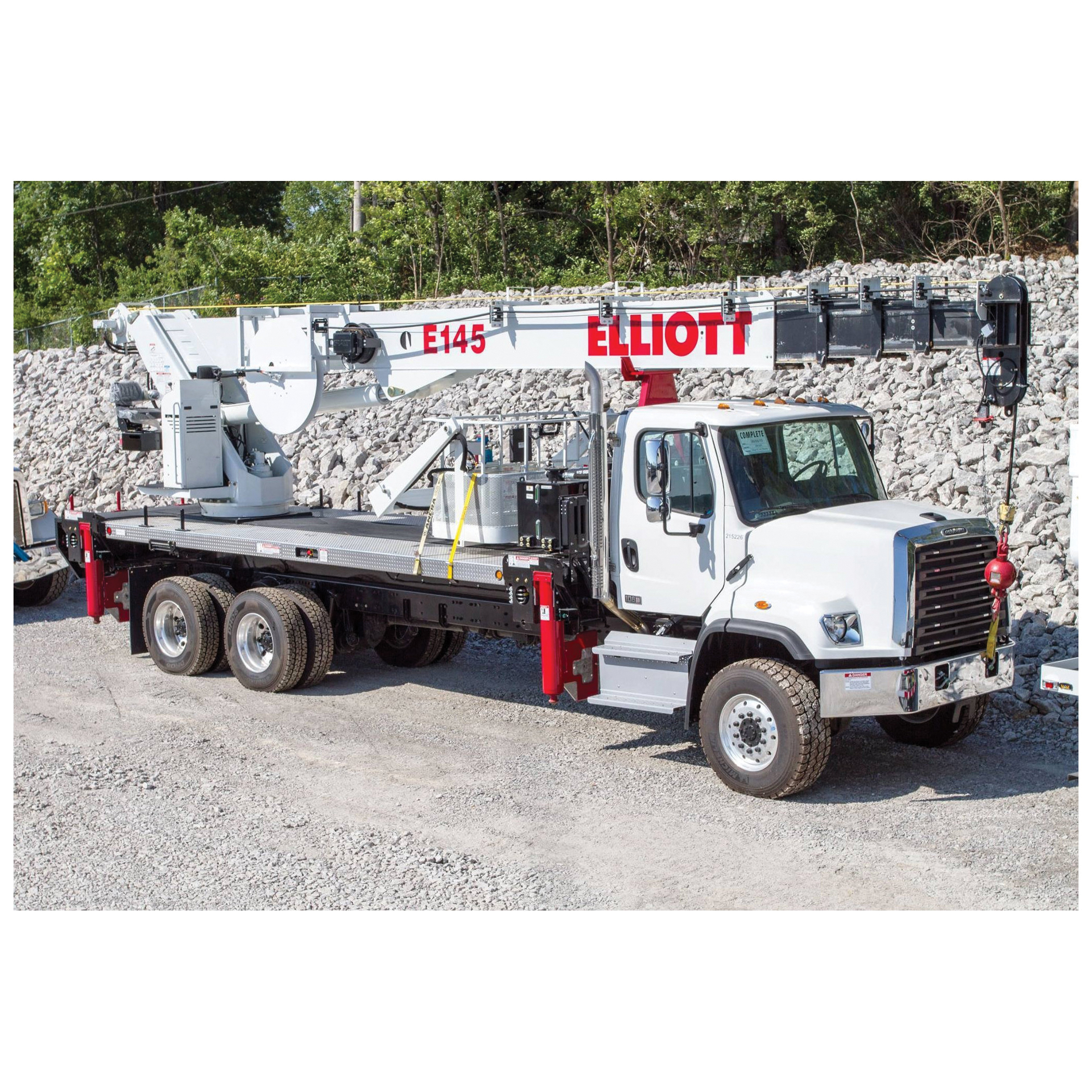

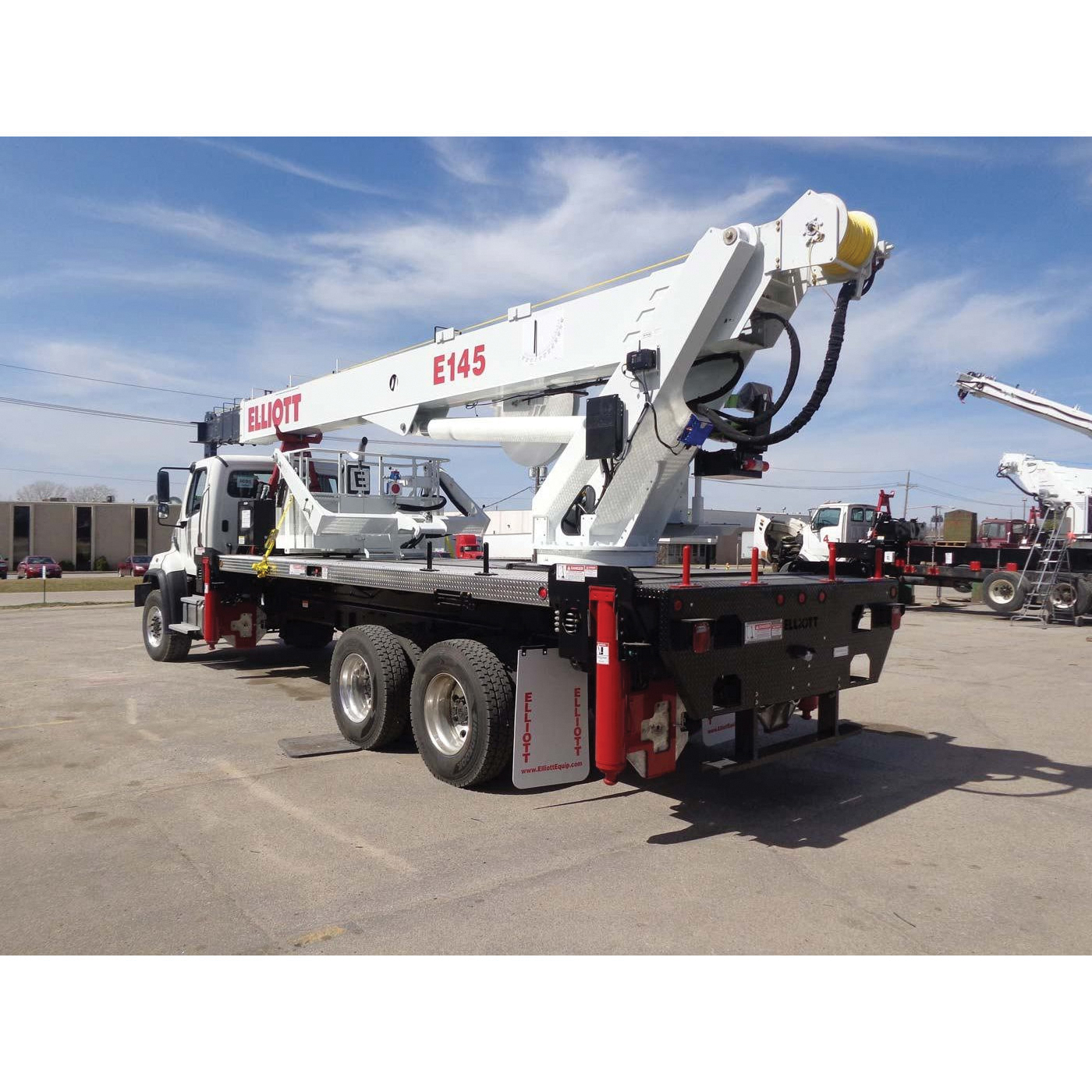

Elliott E-Line™ E145 Aerial Work Platform, Yoke-Mount Platform, 145 ft Max Working Height, Wheeled
This item has special delivery requirements
Please contact Owen Companies to order
| Add-On Options Available | : | Bed-Mounted Accessory, Custom Tool Box, Enclosed Steel Control Cab, Fiberglass Platform Yoke, Outrigger Pad Holder, Safety Lighting, Track Vehicle Mounting Solution, Work Area Definition System |
| Additional Information | : | 18000 lb Main Winch Capacity, 58000 lb Recommended GVWR |
| Condition | : | New |
| Dimensions | : | 497 in L x 12 ft 6 in H |
| Maximum Horizontal Reach | : | 80 ft |
| Maximum Working Height | : | 145 ft |
| Mobility Type | : | Wheeled |
| Model | : | E145 |
| Number of Sections | : | 5 |
| Outrigger Spread | : | 21 ft 2 in |
| Outrigger Type | : | Out-Down |
| Platform Height | : | 145 ft |
| Platform Load Capacity | : | 1200 lb |
| Platform Size | : | 36 x 72 in |
| Platform Type | : | Yoke-Mount |
The Elliott E145 is a purpose-built material handling aerial work platform designed to handle the real-world demands of transmission line construction equipment with strength, precision, and efficiency. Featuring 145 feet of fully powered working height, ANSI A92.2 compliance, and Elliott's signature smooth control system, the E145 delivers dependable high-reach performance on even the most demanding job sites. Equipped with EZ Crib® high-penetration outriggers, a 30 mph wind rating, built-in anemometer, and optional material handling capabilities, the E145 provides the power and stability transmission contractors and utilities need - with the safety and reliability they expect.
Elliott E-Line™ Aerial Work Platform, Model: E145, New Condition, Yoke-Mount Platform, 145 ft Maximum Working Height, 36 x 72 in Platform, 145 ft Platform Height, 80 ft Maximum Horizontal Reach, 1200 lb Platform Load Capacity, 5 Sections, Out-Down Outrigger, 21 ft 2 in Outrigger Spread, Wheeled Mobility, Add-On Options Available: Bed-Mounted Accessory, Custom Tool Box, Enclosed Steel Control Cab, Fiberglass Platform Yoke, Outrigger Pad Holder, Safety Lighting, Track Vehicle Mounting Solution, Work Area Definition System, 497 in L x 12 ft 6 in H, Additional Information: 18000 lb Main Winch Capacity, 58000 lb Recommended GVWR
- Purpose-Built for Transmission Line Work - Unlike modified aerials or retrofitted cranes, the E145 is engineered from the ground up for utility transmission and substation projects. Its long reach, smooth controls, and optional material handling features make it ideal for energized and greenfield construction
- E-Line Platform: More Capability. Fewer Trucks - The E-Line Platform brings added efficiency and versatility to the E145 model. Designed for high-reach transmission and distribution work, it combines self-leveling, hydraulic rotation, and material-handling capability to let crews lift, position, and work - all from a single truck. By integrating aerial access and lifting functions into one unit, the E-Line helps reduce the number of trucks needed on-site, streamline setup, and improve crew coordination
- Fully ANSI A92.2 Compliant - All structural, stability, and hydraulic systems meet stringent ANSI A92.2 compliant lift standards. Whether lifting personnel or materials, the E145 delivers safe, stable, and certified performance
- EZ Crib® Outriggers for Faster Setup - Elliott's exclusive EZ Crib outriggers reduce the need for extra cribbing - speeding up setup, minimizing strain on the crew, and improving daily productivity
- Built for Real-World Wind Conditions - With a 30 mph wind rating on the main boom and a standard integrated anemometer, the E145 helps crews stay on schedule - even when the weather turns

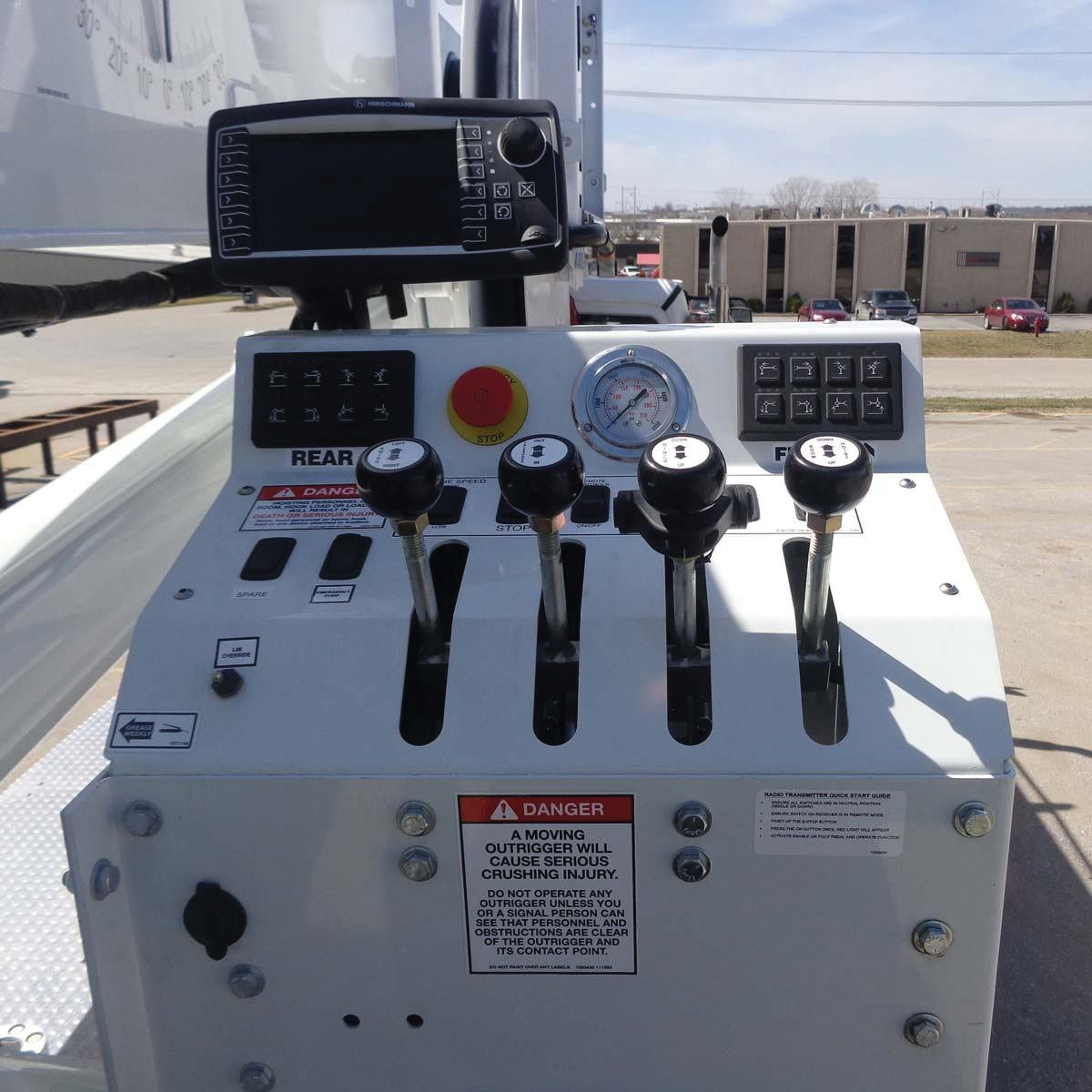

- Precision Controls for Safer Operation - Operators benefit from Elliott's finely tuned hydraulic system, delivering responsive, stable movement even at full extension. That means fewer corrections, faster task completion, and safer job sites
- Smart ROI for Your Fleet - The E145 reduces the need for multiple machines, shortens setup time, and improves crew productivity - helping drive down cost per job. With a proven, low-maintenance design, it's a long-term asset that delivers return every time it rolls out
- Built For You - The E145 reflects Elliott's core belief: the best machines are built in partnership with the people who use them. From high-voltage contractors to investor-owned utilities, those who rely on Elliott know they're getting more than a machine - they're getting a tool they can count on, every day. The E145 is transmission line construction equipment that's truly Built For You
