| Add-On Options Available | : | 36 in, 48 in 2-Man Gravity Leveled Work Platform, 24 in Auger Flighting, Automatic Rotation Lockout, Body-Mounted Hose Reel and Circuit, Detachable Hydraulic Pole Claw, EZ-Crib Two-Stage Outrigger, Hook Block, Hydraulic Oil Tank Heater, Radio Remote Control System, Toolbox |
| Additional Information | : | 85 ft Maximum Horizontal Reach, 360 deg Boom Rotation |
| Auger Speed | : | 80 rpm |
| Auger Torque Rating | : | 20000 ft-lb |
| Condition | : | New |
| Control Type | : | Hydraulic |
| Fuel Tank Capacity | : | 119 gal |
| GVWR (Gross Vehicle Weight Rating) | : | 46000 lb |
| Main Winch Pull | : | 12000 lb |
| Maximum Digging Radius | : | 44 ft |
| Maximum Lifting Capacity | : | 50000 lb |
| Maximum Sheave Height | : | 117 ft |
| Model | : | D115 |
| Outrigger Spread | : | 20 ft |
| Outrigger Type | : | Out-Down |
| Retracted Sheave Height | : | 43 ft |

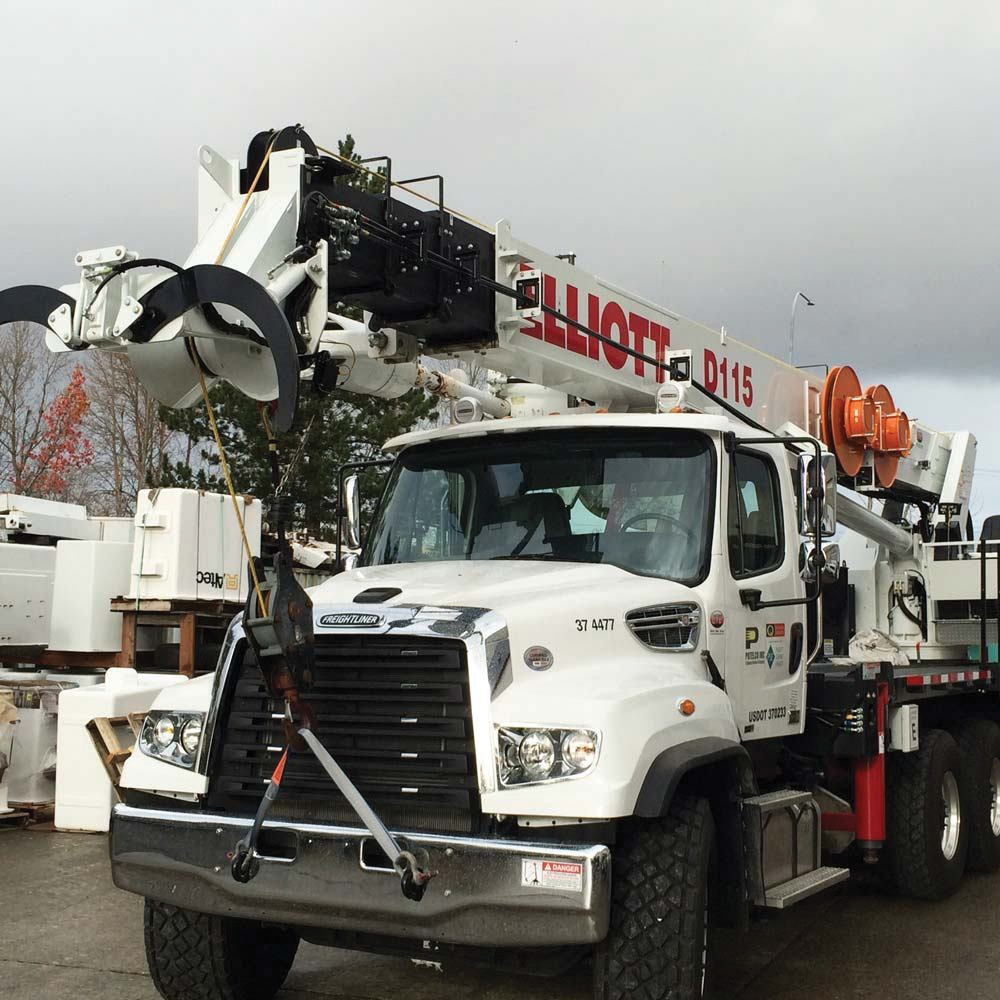

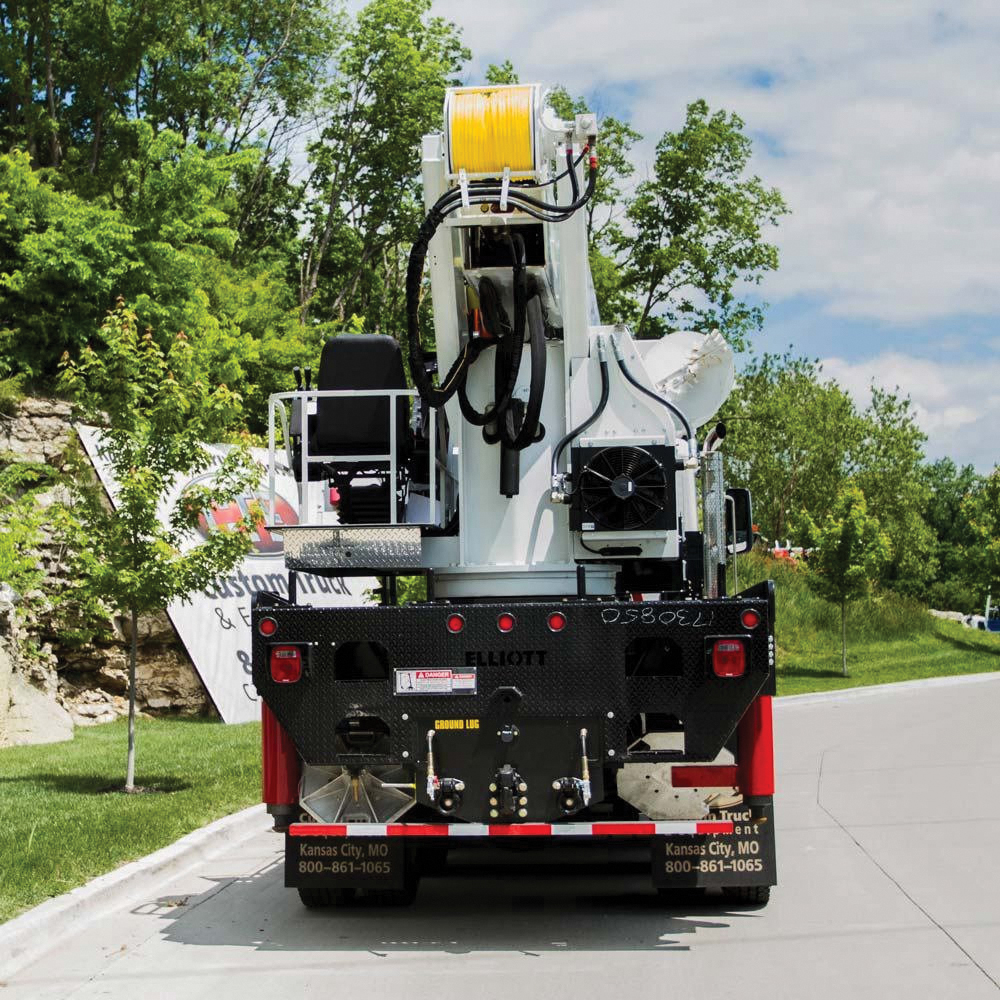

Designed for utility transmission line and construction work, Elliott digger derricks offer best-in-class performance across the board. Whether you are digging a hole, handling a pole or even using our remote-controlled work platform, the D115 Digger Derrick is built to withstand the rigors of your job. Elliott Equipment Company specializes in manufacturing long-lasting and reliable digging, material handling and personnel lifting equipment. Every Elliott product can be equipped with a range of accessories to provide a versatile solution for your application. All Elliott products are manufactured in the USA and are available with a wide range of factory customization options. Elliott - Built for You.
Elliott Digger Derrick, Model: D115, New Condition, 119 gal Fuel Tank Capacity, 50000 lb Maximum Lifting Capacity, 117 ft Maximum Sheave Height, 43 ft Retracted Sheave Height, 20000 ft-lb Auger Torque Rating, 80 rpm Auger Speed, 44 ft Maximum Digging Radius, 46000 lb GVWR, Out-Down Outrigger, 20 ft Outrigger Spread, 12000 lb Main Winch Pull, Hydraulic Control, Add-On Options Available: 36 in, 48 in 2-Man Gravity Leveled Work Platform, 24 in Auger Flighting, Automatic Rotation Lockout, Body-Mounted Hose Reel and Circuit, Detachable Hydraulic Pole Claw, EZ-Crib Two-Stage Outrigger, Hook Block, Hydraulic Oil Tank Heater, Radio Remote Control System, Toolbox, Additional Information: 85 ft Maximum Horizontal Reach, 360 deg Boom Rotation
- Best‑in‑class lifting capacity at median digging radius - Delivers exceptional hoisting strength - up to 29,000 lb at a 10‑ft radius - with peak capacity of 50,000 lb, ensuring powerful lift performance where it's needed most
- Hydraulic controls for smooth operation and excellent operator feedback - Equipped with precision, variable-displacement hydraulic systems that offer responsive, smooth movements and clear tactile control for digging, lifting, and rotating
- Mounts on tandem axle chassis for go‑anywhere performance - Built on a robust tandem-axle chassis without tag or pusher axles, the unit confidently handles both highway travel and rough job-site terrain
- Widest digging radius in the industry lets you do more work with each setup - Boasts a maximum digging radius of 44′ (13.4 m), reducing the need for frequent repositioning on the job
- High pinpoint boom geometry for outstanding lifting power 'out of the hole' below 0 deg elevation - Engineered boom geometry offers maximum torque and lifting efficiency even when hoisting from below-grade positions
- Ergonomic operator station for operator comfort - Features a front-entry seated pedestal control console with optimized visibility and operator comfort for extended work hours
