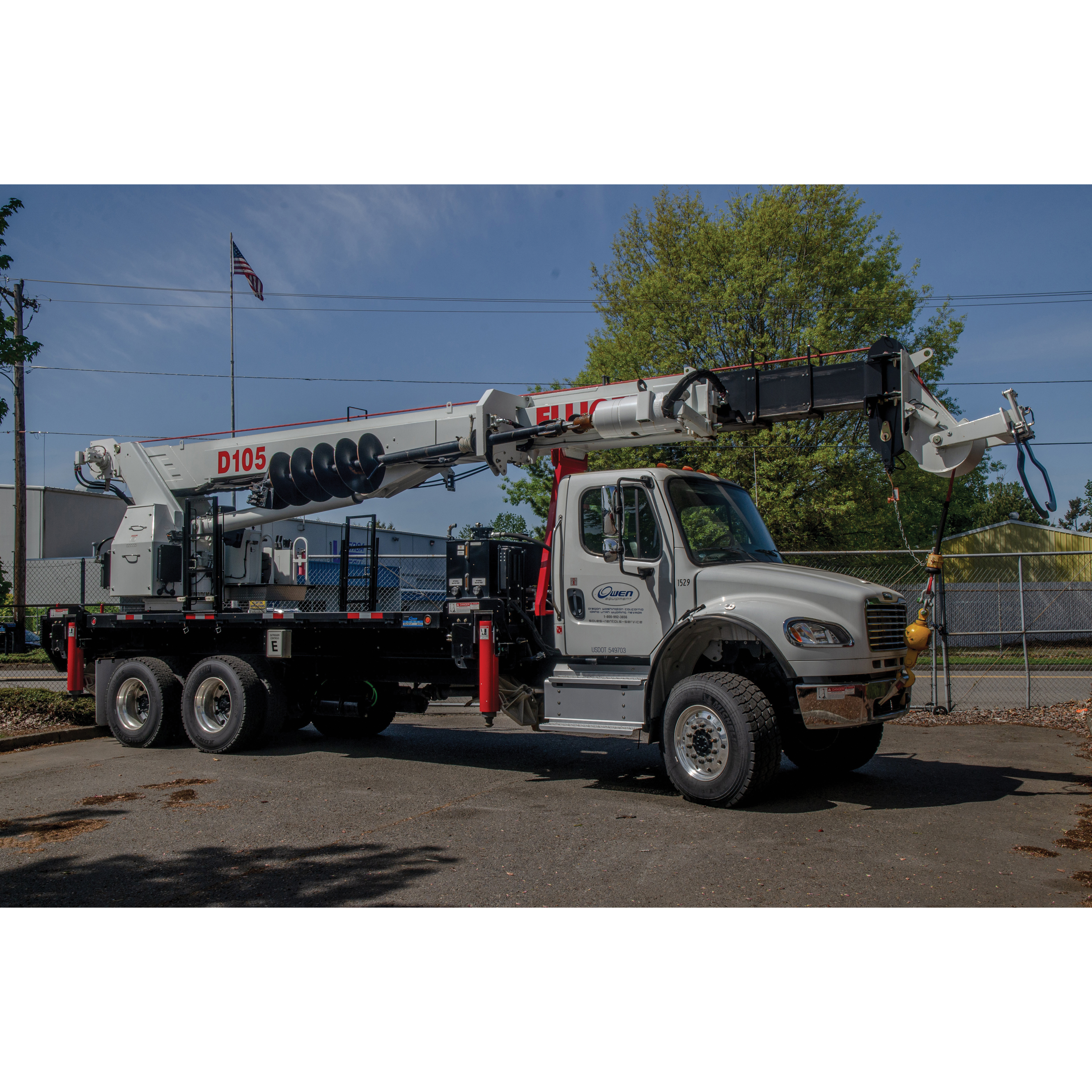

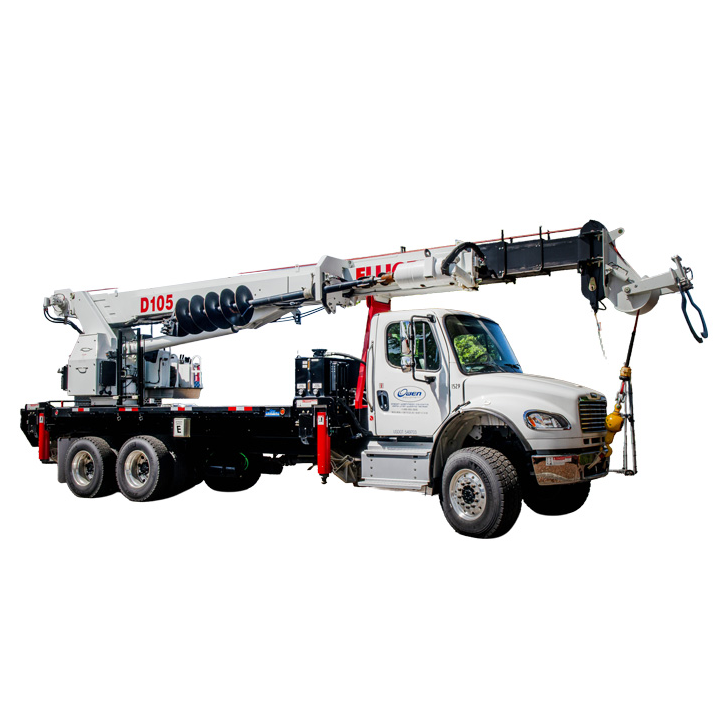

Elliott D105 Digger Derrick, New Equipment, 50000 lb Maximum Lifting, 20000 ft-lb Auger Torque

Manufacturer: Elliott Equipment Company
Brand: Elliott
Item Number: D105
MPN: D105
CPN:
Model #: D105
  • Heavy This item has special delivery requirements Please contact Owen Companies to order
    • Rental AVAILABLE
    Add-On Options Available      :      2, 3 or 4-Part Hook Block, 36 in, 48 in 600 lb Gravity Leveled Personnel Platform, 24 in Auger Flighting , Automatic Rotation Lockout, Custom Line Body and Flat Bed, EZ-Crib Two-Stage Outrigger, Hose Reel/Hydraulic Circuit to Flat Bed, Hydraulic Tank Heater
    Additional Information      :      92 ft Maximum Horizontal Reach, 360 deg Boom Rotation
    Auger Speed      :      80 rpm
    Auger Torque Rating      :      20000 ft-lb
    Condition      :      New
    Control Type      :      Hydraulic
    Divisions      :      BLAZE
    Divisions      :      JR
    Divisions      :      OWEN
    Divisions      :      RELIANCE
    GVWR (Gross Vehicle Weight Rating)      :      46000 lb
    Main Winch Pull      :      12000 lb
    Maximum Digging Radius      :      41 ft
    Maximum Lifting Capacity      :      50000 lb
    Maximum Sheave Height      :      105 ft
    Model      :      D105
    Outrigger Spread      :      20 ft
    Outrigger Type      :      Out-Down
    Retracted Sheave Height      :      40 ft

    Designed for utility transmission line and construction work, Elliott digger derricks offer best-in-class performance across the board. Whether you are digging a hole, handling a pole or even using our remote-controlled work platform, the D105 Digger Derrick is built to withstand the rigors of your job.

    Elliott Digger Derrick, Model: D105, New Condition, 50000 lb Maximum Lifting Capacity, 105 ft Maximum Sheave Height, 40 ft Retracted Sheave Height, 20000 ft-lb Auger Torque Rating, 80 rpm Auger Speed, 41 ft Maximum Digging Radius, 46000 lb GVWR, Out-Down Outrigger, 20 ft Outrigger Spread, 12000 lb Main Winch Pull, Hydraulic Control, Add-On Options Available: 2, 3 or 4-Part Hook Block, 36 in, 48 in 600 lb Gravity Leveled Personnel Platform, 24 in Auger Flighting , Automatic Rotation Lockout, Custom Line Body and Flat Bed, EZ-Crib Two-Stage Outrigger, Hose Reel/Hydraulic Circuit to Flat Bed, Hydraulic Tank Heater, Additional Information: 92 ft Maximum Horizontal Reach, 360 deg Boom Rotation

      Best in class lifting capacity at median digging radius, where you need it the most - Delivers exceptional hoisting power precisely where it's most needed during mid-range operations - maximizing performance on the job
