| Add-On Options Available | : | 2, 3 or 4-Part Hook Block, 36 in, 48 in 600 lb Gravity Leveled Personnel Platform, 24 in Auger Flighting , Automatic Rotation Lockout, Custom Line Body and Flat Bed, EZ-Crib Two-Stage Outrigger, Hose Reel/Hydraulic Circuit to Flat Bed, Hydraulic Tank Heater |
| Additional Information | : | 92 ft Maximum Horizontal Reach, 360 deg Boom Rotation |
| Auger Speed | : | 80 rpm |
| Auger Torque Rating | : | 20000 ft-lb |
| Condition | : | New |
| Control Type | : | Hydraulic |
| GVWR (Gross Vehicle Weight Rating) | : | 46000 lb |
| Main Winch Pull | : | 12000 lb |
| Maximum Digging Radius | : | 41 ft |
| Maximum Lifting Capacity | : | 50000 lb |
| Maximum Sheave Height | : | 105 ft |
| Model | : | D105 |
| Outrigger Spread | : | 20 ft |
| Outrigger Type | : | Out-Down |
| Retracted Sheave Height | : | 40 ft |

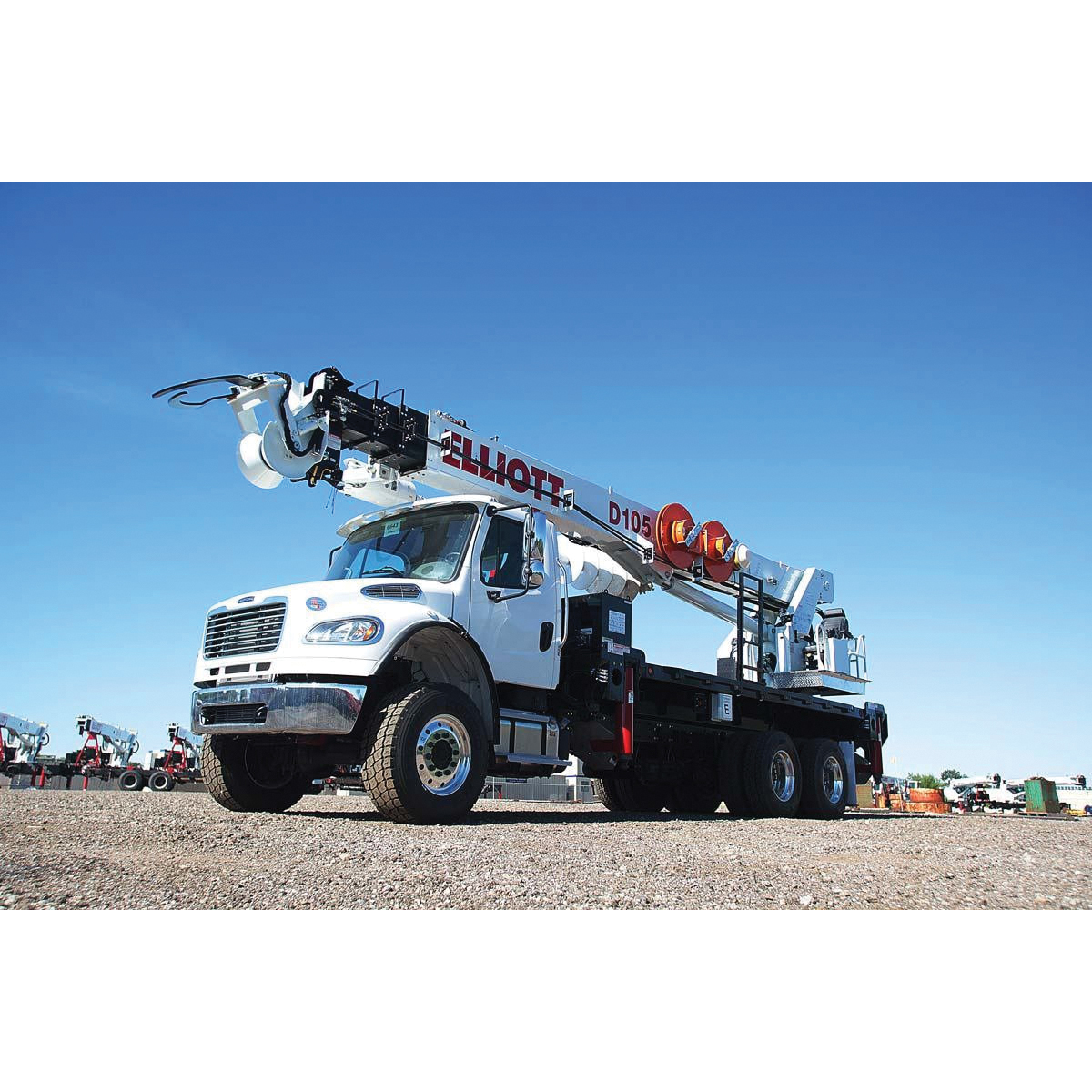

Designed for utility transmission line and construction work, Elliott digger derricks offer best-in-class performance across the board. Whether you are digging a hole, handling a pole or even using our remote-controlled work platform, the D105 Digger Derrick is built to withstand the rigors of your job.
Elliott Digger Derrick, Model: D105, New Condition, 50000 lb Maximum Lifting Capacity, 105 ft Maximum Sheave Height, 40 ft Retracted Sheave Height, 20000 ft-lb Auger Torque Rating, 80 rpm Auger Speed, 41 ft Maximum Digging Radius, 46000 lb GVWR, Out-Down Outrigger, 20 ft Outrigger Spread, 12000 lb Main Winch Pull, Hydraulic Control, Add-On Options Available: 2, 3 or 4-Part Hook Block, 36 in, 48 in 600 lb Gravity Leveled Personnel Platform, 24 in Auger Flighting , Automatic Rotation Lockout, Custom Line Body and Flat Bed, EZ-Crib Two-Stage Outrigger, Hose Reel/Hydraulic Circuit to Flat Bed, Hydraulic Tank Heater, Additional Information: 92 ft Maximum Horizontal Reach, 360 deg Boom Rotation
- Best in class lifting capacity at median digging radius, where you need it the most - Delivers exceptional hoisting power precisely where it's most needed during mid-range operations - maximizing performance on the job
- Hydraulic controls for smooth operation and excellent operator feedback - Features responsive, precision hydraulic systems that provide refined maneuverability and enhance control with every movement
- Mounts on tandem axle chassis for go-anywhere performance - Built on a durable tandem axle chassis to confidently handle both road travel and rugged, off-road utility-site conditions
- Exceptional digging radius lets you do more work with each setup - Boasts an industry-leading reach - up to 41 feet - enabling broader coverage and reducing the need for repositioning
- High pinpoint boom geometry for outstanding lifting power 'out of the hole' below 0 degrees elevation - Optimized boom design maximizes torque and lifting performance even when hoisting loads from below-grade level
- Ergonomic operator station for operator comfort - Includes a thoughtfully designed control station with seating and layout tailored for minimal fatigue and improved visibility
