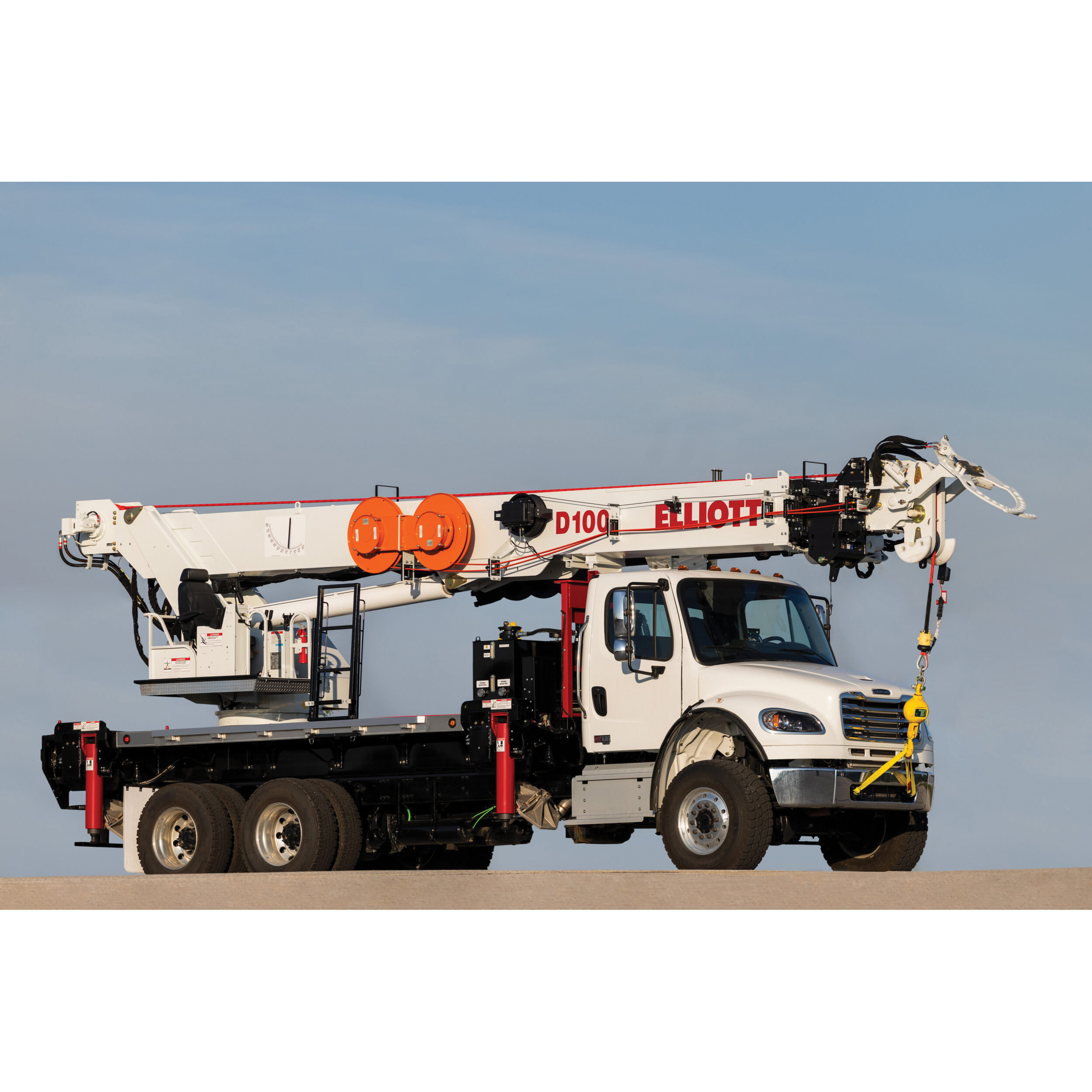

Elliott D100i Digger Derrick, New Equipment, 36000 lb Maximum Lifting, 20000 ft-lb Auger Torque

Manufacturer: Elliott Equipment Company
Brand: Elliott
Item Number: D100i
MPN: D100i
CPN:
Model #: D100i
  • Heavy This item has special delivery requirements Please contact Owen Companies to order
    • Add-On Options Available      :      24 in, 36 in, 48 in Auger Flighting Option, Automatic Safety Rotation Lockout, Custom Line Body and Flat Bed, EZ-Crib Two-Stage Outrigger, Hose Reel or Hydraulic Circuit, Radio Remote Control System
    Additional Information      :      70 ft Maximum Horizontal Reach, 360 deg Boom Rotation
    Auger Speed      :      80 rpm
    Auger Torque Rating      :      20000 ft-lb
    Condition      :      New
    Control Type      :      Hydraulic
    Divisions      :      BLAZE
    Divisions      :      JR
    Divisions      :      OWEN
    Divisions      :      RELIANCE
    GVWR (Gross Vehicle Weight Rating)      :      58000 lb
    Main Winch Pull      :      9500 lb
    Maximum Digging Radius      :      40 ft
    Maximum Lifting Capacity      :      36000 lb
    Maximum Sheave Height      :      100 ft
    Model      :      D100i
    Outrigger Spread      :      21 ft 2 in
    Outrigger Type      :      Out-Down
    Retracted Sheave Height      :      40 ft

    Designed for utility transmission line and construction work, Elliott digger derricks offer best-in-class performance across the board. Whether you are digging a hole, handling a pole or even using our remote-controlled work platform, the D100i Digger Derrick is built to withstand the rigors of your job.

    Elliott Digger Derrick, Model: D100i, New Condition, 36000 lb Maximum Lifting Capacity, 100 ft Maximum Sheave Height, 40 ft Retracted Sheave Height, 20000 ft-lb Auger Torque Rating, 80 rpm Auger Speed, 40 ft Maximum Digging Radius, 58000 lb GVWR, Out-Down Outrigger, 21 ft 2 in Outrigger Spread, 9500 lb Main Winch Pull, Hydraulic Control, Add-On Options Available: 24 in, 36 in, 48 in Auger Flighting Option, Automatic Safety Rotation Lockout, Custom Line Body and Flat Bed, EZ-Crib Two-Stage Outrigger, Hose Reel or Hydraulic Circuit, Radio Remote Control System, Additional Information: 70 ft Maximum Horizontal Reach, 360 deg Boom Rotation

      Best‑in‑class lifting capacity at median digging radius - Provides top-tier hoisting strength - up to 10,800 lb at a 30-foot radius - right where it counts most during digging tasks
