Elliott D100i Digger Derrick, New Equipment, 36000 lb Maximum Lifting, 20000 ft-lb Auger Torque
This item has special delivery requirements
Please contact Owen Companies to order

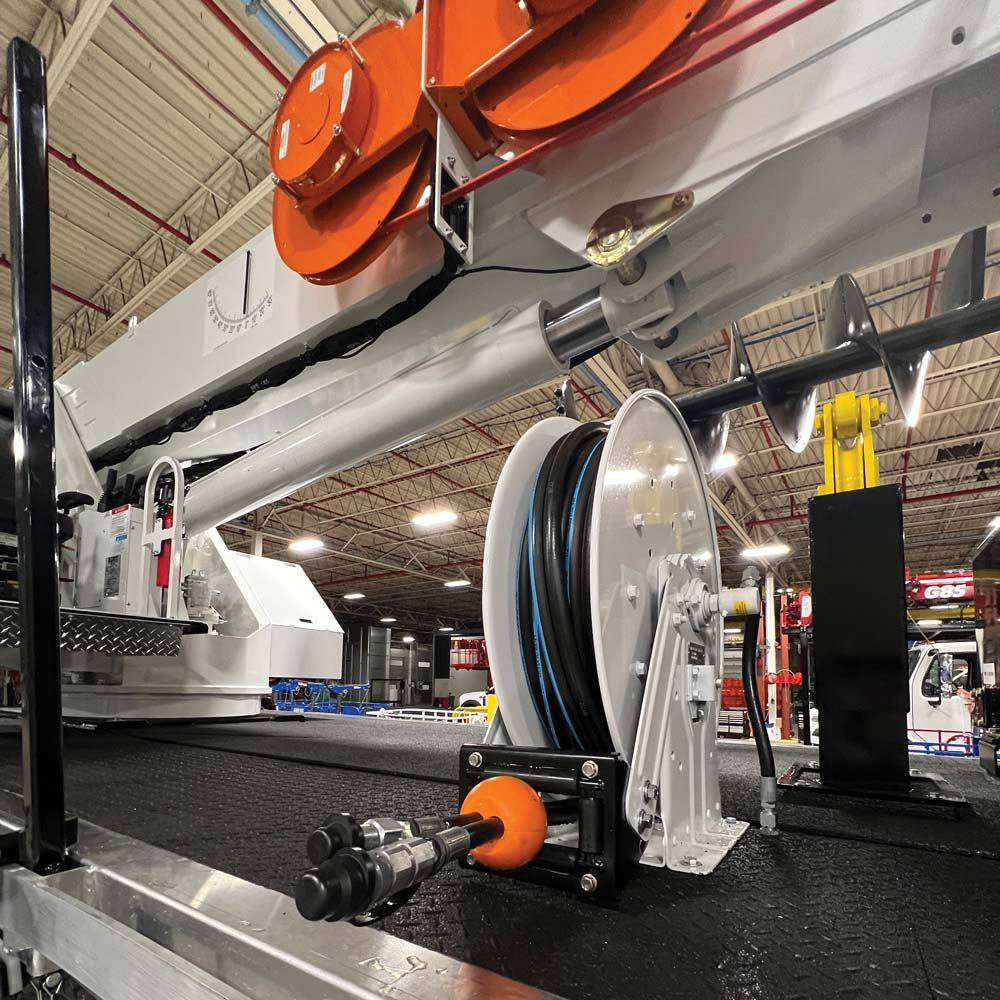

| Add-On Options Available | : | 24 in, 36 in, 48 in Auger Flighting Option, Automatic Safety Rotation Lockout, Custom Line Body and Flat Bed, EZ-Crib Two-Stage Outrigger, Hose Reel or Hydraulic Circuit, Radio Remote Control System |
| Additional Information | : | 70 ft Maximum Horizontal Reach, 360 deg Boom Rotation |
| Auger Speed | : | 80 rpm |
| Auger Torque Rating | : | 20000 ft-lb |
| Condition | : | New |
| Control Type | : | Hydraulic |
| GVWR (Gross Vehicle Weight Rating) | : | 58000 lb |
| Main Winch Pull | : | 9500 lb |
| Maximum Digging Radius | : | 40 ft |
| Maximum Lifting Capacity | : | 36000 lb |
| Maximum Sheave Height | : | 100 ft |
| Model | : | D100i |
| Outrigger Spread | : | 21 ft 2 in |
| Outrigger Type | : | Out-Down |
| Retracted Sheave Height | : | 40 ft |
Designed for utility transmission line and construction work, Elliott digger derricks offer best-in-class performance across the board. Whether you are digging a hole, handling a pole or even using our remote-controlled work platform, the D100i Digger Derrick is built to withstand the rigors of your job.
Elliott Digger Derrick, Model: D100i, New Condition, 36000 lb Maximum Lifting Capacity, 100 ft Maximum Sheave Height, 40 ft Retracted Sheave Height, 20000 ft-lb Auger Torque Rating, 80 rpm Auger Speed, 40 ft Maximum Digging Radius, 58000 lb GVWR, Out-Down Outrigger, 21 ft 2 in Outrigger Spread, 9500 lb Main Winch Pull, Hydraulic Control, Add-On Options Available: 24 in, 36 in, 48 in Auger Flighting Option, Automatic Safety Rotation Lockout, Custom Line Body and Flat Bed, EZ-Crib Two-Stage Outrigger, Hose Reel or Hydraulic Circuit, Radio Remote Control System, Additional Information: 70 ft Maximum Horizontal Reach, 360 deg Boom Rotation
- Best‑in‑class lifting capacity at median digging radius - Provides top-tier hoisting strength - up to 10,800 lb at a 30-foot radius - right where it counts most during digging tasks
- Hydraulic controls for smooth operation and excellent operator feedback - Equipped with precision hydraulic systems that deliver responsive control and enhanced tactile feedback for seamless digging and lifting
- Mounts on tandem axle chassis for go‑anywhere performance - Built on a truck with the shortest wheelbase for this size of machine, enabling it to traverse both roads and tight job site conditions with ease
- Exceptional digging radius lets you do more work with each setup - Offers an impressive maximum digging reach of around 41 feet, minimizing repositioning and boosting job-site productivity
- High pinpoint boom geometry for outstanding lifting power 'out of the hole' below 0 deg elevation - Features boom geometry optimized for lifting heavy loads efficiently even when the boom is below horizontal - ideal for lifting from deep trenches

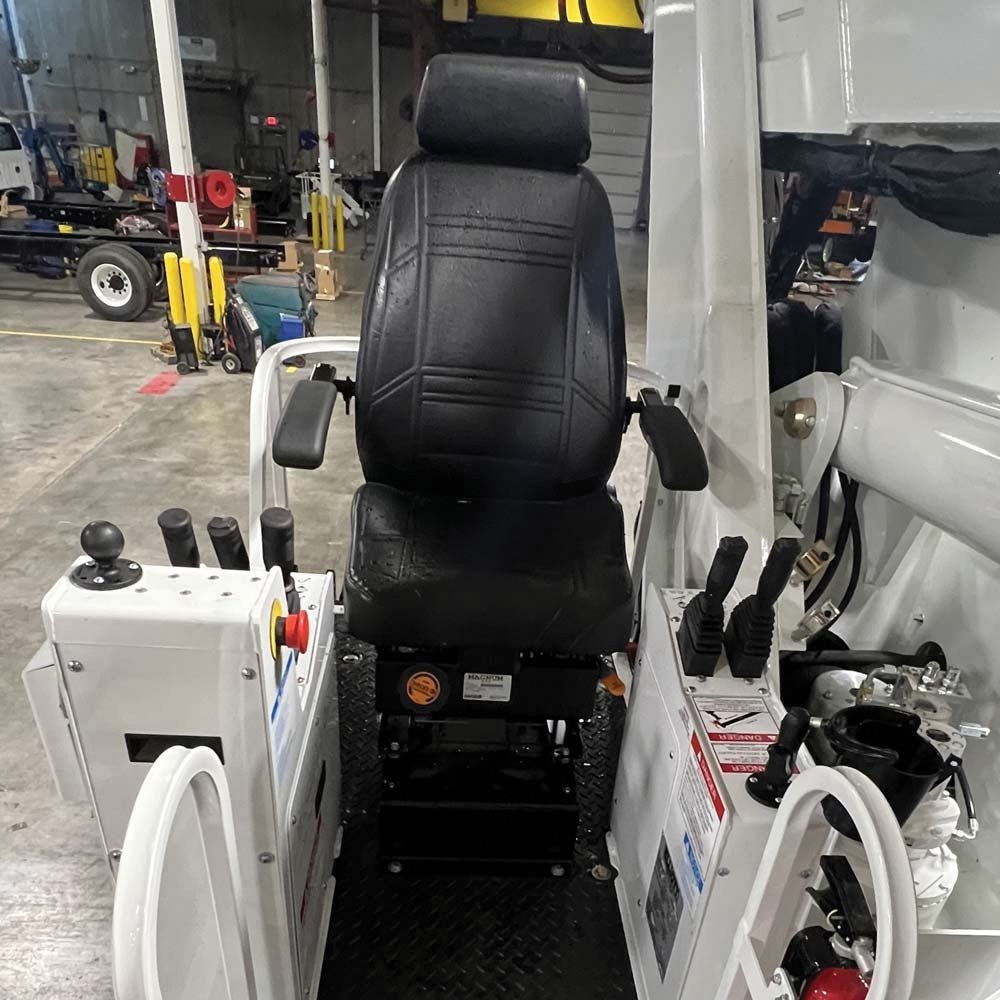

- Ergonomic operator station for operator comfort - Incorporates a well-designed control console and seating arrangement to reduce fatigue and improve visibility during extended operations
- Massive torque with powerful auger capability - Offers a 20,000 ft‑lb auger drive capable of spinning 48″ flightings across diverse soil types, ensuring fast and effective hole drilling
