ELGIN® Road Wizard Mechanical Sweeper, New Equipment, 74 hp, Diesel Fuel, 34 in Dia Main Broom
This item has special delivery requirements
Please contact Owen Companies to order
| Add-On Options Available | : | Arrow Stick, Automatic Lubrication System, Broom Camera System (Rear Standard), Cleated Belt Conveyor, Fire Extinguisher, Front Spray Bar, Hydrant Wrench, In-Cab Side Broom Speed Control, LED Strobe, Lighting Bundles, Main and Side Broom Down Pressure Control, Outside Cab |
| Broom Material | : | Polypropylene |
| Chassis Type | : | Commercial Class 7 |
| Condition | : | New |
| Control Type | : | Hydraulic |
| Conveyor Type | : | Squeegee with Rubber Edging |
| Dimensions | : | 293 in L x 120 in H |
| Divisions | : | BLAZE |
| Divisions | : | CAL_LINE |
| Divisions | : | JR |
| Divisions | : | OWEN |
| Divisions | : | RELIANCE |
| Drive System | : | Hydraulic Motor |
| Dump Angle | : | 50 deg |
| Dump Control Type | : | Hydraulic |
| Dump Height | : | 11 ft 2 in |
| Dump Type | : | Side |
| Engine Horsepower | : | 74 hp |
| Engine Manufacturer | : | Cummins® |
| Engine Type | : | Turbocharged |
| Fuel Type | : | Diesel |
| Hopper Capacity | : | 5.45 cu-yd |
| Hydraulic Tank Capacity | : | 35 gal |
| Lifting Capacity | : | 10000 lb |
| Main Broom Diameter | : | 34 in |
| Main Broom Length | : | 60 in |
| Mobility Type | : | Mechanical |
| Model | : | Road Wizard |
| Paint Color | : | White |
| Paint Type | : | High-Gloss, Powder-Coated |
| Side Broom Diameter | : | 46 in |
| Side Broom Type | : | 5 or 6 Segment Plastic Disposable |
| Sweeping Path Width - One Side | : | 90 in |
| Sweeping Path Width - Two Side | : | 120 in |
| Undercarriage Type | : | Wheeled |
| Water Tank Capacity | : | 360 gal |
| Water Tank Material | : | Polyethylene |

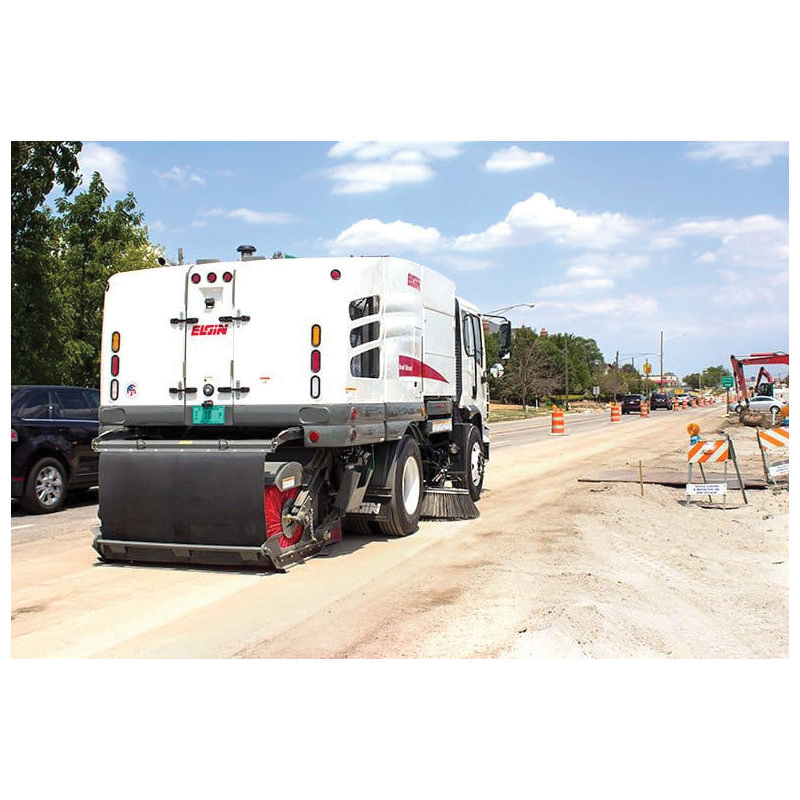

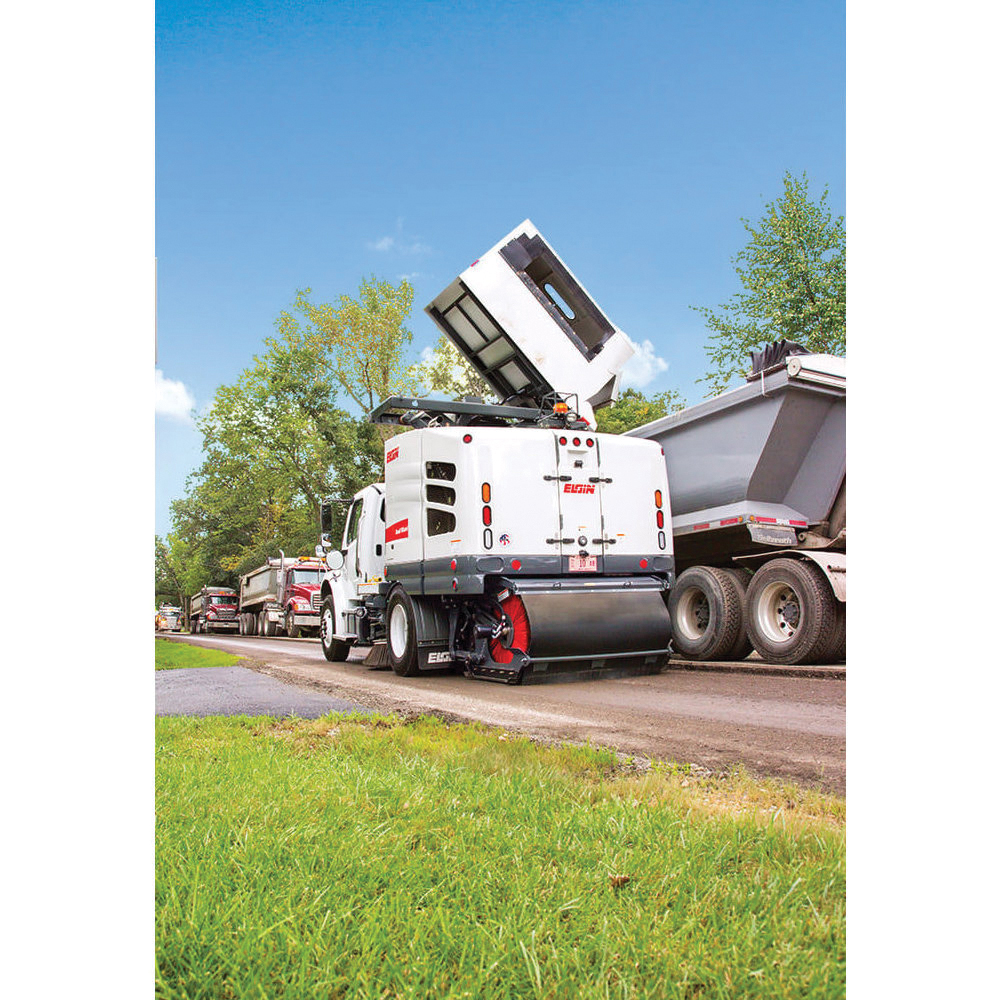

The Elgin® Road Wizard® mechanical broom sweeper has a powerful, dual-engine design with a 360-gallon (1363l) water tank for superior dust control and a large 5.4 yd3 (4.1 m3) hopper. This sweeper features a double-scissors lifting mechanism, which is center-mounted for greater stability, rigidity, and trouble-free operation. Plus, its dumping height is variable up to 11 feet, 2 inches (3404 mm), and 11" (279 mm) of hopper side-shift ensuring uniform dumping. The Elgin Road Wizard is now available with your choice of squeegee or no-jam belt conveyor systems depending on the application requirements. The Road Wizard offers the flexibility of mounting on a selection of commercial cab-over or conventional chassis. Due to its quad-pump hydraulics design, all sweeper functions operate in parallel, allowing the Road Wizard to power through any heavy construction and gravel loading application.
ELGIN® Mechanical Sweeper, Model: Road Wizard, New Condition, 74 hp Engine Horsepower, Cummins® Engine Manufacturer, Turbocharged Engine, 34 in Main Broom Diameter, 60 in Main Broom Length, 46 in Side Broom Diameter, 5 or 6 Segment Plastic Disposable Side Broom, 90 in Sweeping Path Width (One Side), 120 in Sweeping Path Width (Two Side), Squeegee with Rubber Edging Conveyor, 5.45 cu-yd Hopper Capacity, Side Dump, 11 ft 2 in Dump Height, Hydraulic Dump Control, 50 deg Dump Angle, 10000 lb Lifting, 360 gal Water Tank Capacity, Diesel Fuel, 35 gal Hydraulic Tank Capacity, Hydraulic Motor Drive System, Mechanical Mobility, Wheeled Undercarriage, Hydraulic Control, Polyethylene Water Tank Material, Polypropylene Broom, High-Gloss, Powder-Coated Paint, White Paint Color, Commercial Class 7 Chassis, Add-On Options Available: Arrow Stick, Automatic Lubrication System, Broom Camera System (Rear Standard), Cleated Belt Conveyor, Fire Extinguisher, Front Spray Bar, Hydrant Wrench, In-Cab Side Broom Speed Control, LED Strobe, Lighting Bundles, Main and Side Broom Down Pressure Control, Outside Cab, 293 in L x 120 in H
- Large 5.4 yd3 (4.1 m3) hopper
