| Add-On Options Available | : | Arrow Stick, Automatic Lubrication System, Broom Camera System, Chevron Conveyor Belt, Fire Extinguisher, Front Spray Bar, Hydrant Wrench, In-Cab Side Broom Speed Control, LED Strobe, Lighting Bundles, Outside Cab, Side Broom Down Pressure Control |
| Broom Material | : | Polypropylene |
| Chassis Type | : | Commercial Class 7 |
| Condition | : | New |
| Control Type | : | Hydraulic |
| Conveyor Type | : | Squeegee Elevator |
| Dimensions | : | 272 in L x 115 in H |
| Divisions | : | BLAZE |
| Divisions | : | CAL_LINE |
| Divisions | : | JR |
| Divisions | : | OWEN |
| Divisions | : | RELIANCE |
| Drive System | : | Hydraulic Motor |
| Dump Angle | : | 50 deg |
| Dump Control Type | : | Electro-Hydraulic |
| Dump Height | : | 11 ft 2 in |
| Dump Type | : | Side |
| Engine Horsepower | : | 260 hp |
| Engine Manufacturer | : | Cummins® |
| Engine Type | : | Turbocharged |
| Fuel Type | : | Diesel |
| Hopper Capacity | : | 4.5 cu-yd |
| Hydraulic Tank Capacity | : | 23 gal |
| Lifting Capacity | : | 11000 lb |
| Main Broom Diameter | : | 34 in |
| Main Broom Length | : | 60 in |
| Mobility Type | : | Mechanical |
| Model | : | Broom Bear |
| Paint Color | : | White |
| Paint Type | : | High-Gloss, Powder-Coated |
| Side Broom Diameter | : | 46 in |
| Side Broom Type | : | 5 or 6 Segment Plastic Disposable |
| Sweeping Path Width - One Side | : | 90 in |
| Sweeping Path Width - Two Side | : | 120 in |
| Undercarriage Type | : | Wheeled |
| Water Tank Capacity | : | 360 gal |
| Water Tank Material | : | Polyethylene |

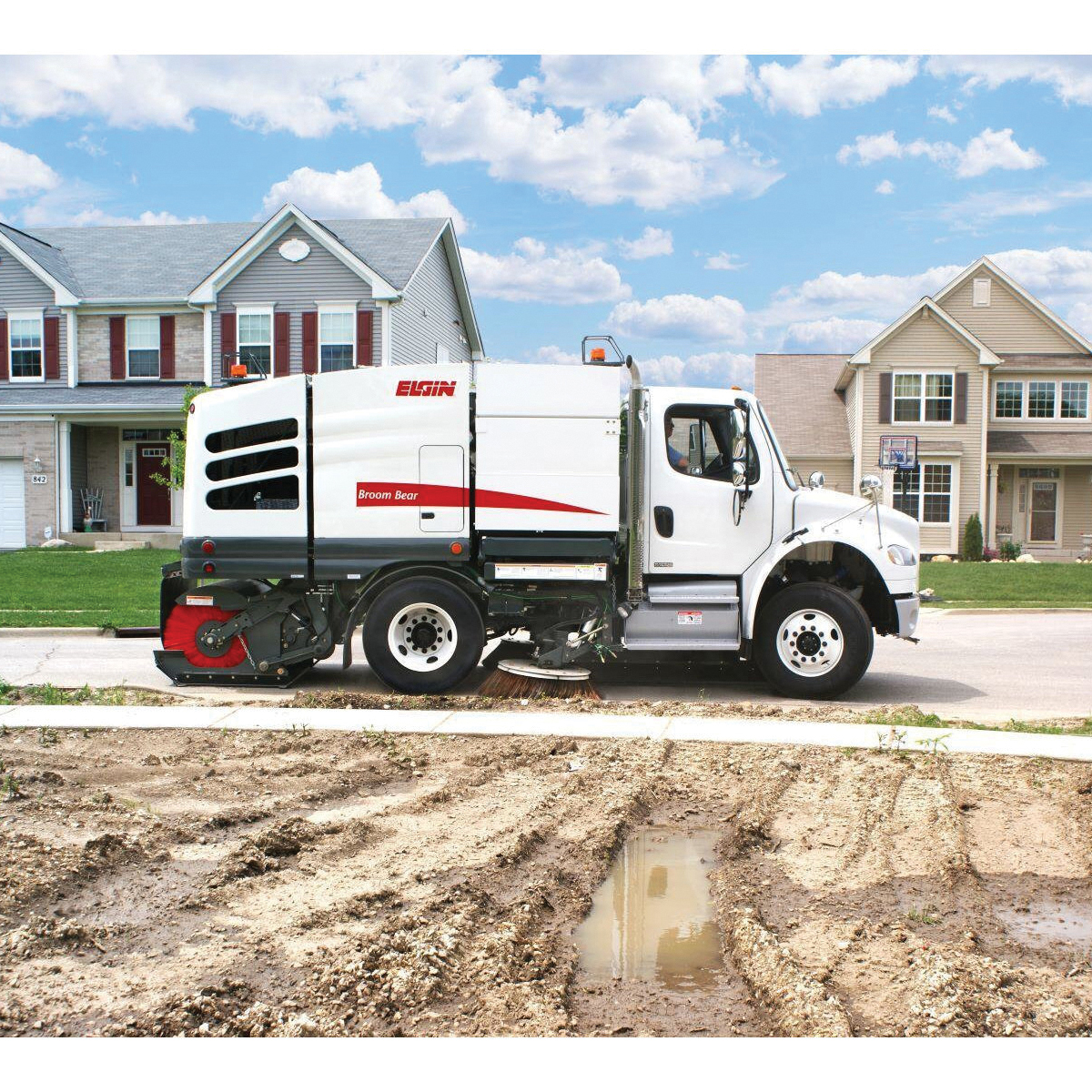

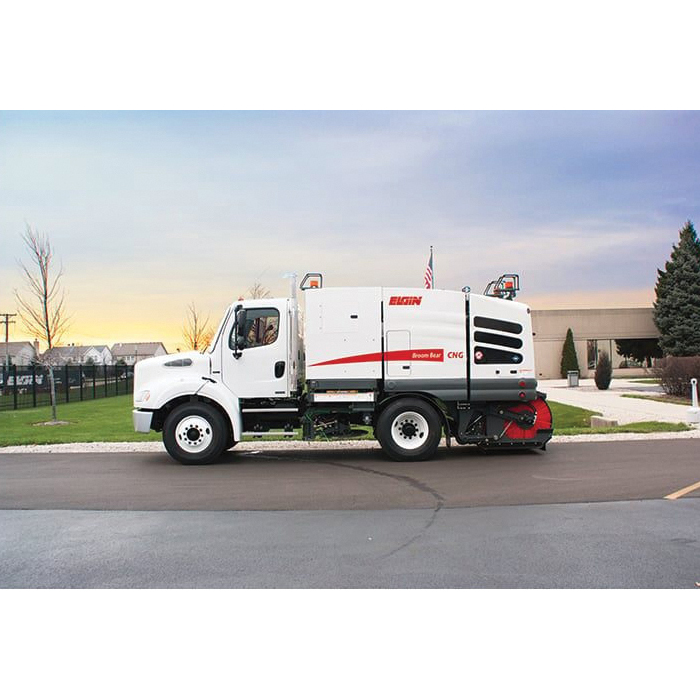

The Elgin® Broom Bear® four-wheel mechanical (broom) sweeper is the epitome of durability and longevity. It boasts unparalleled efficiency, making it the top choice on the market. The sweeper is mounted on a commercially available conventional or cab-over chassis, complete with fully dualized controls (single-steer optional) and an intelligent single-engine design that utilizes the chassis engine to power the sweeper. The Elgin Broom Bear features a large hopper and water tank, which translates to more productive sweeping time. Its single-engine design ensures minimal maintenance or the need for replacement sweeper parts. A variable dumping height and 11" (279 mm) of hopper side-shift make dumping effortless. Choose between the squeegee or no-jam belt conveyor systems, depending on the application requirements. The Elgin Broom Bear is ideal for sweeping in congested urban areas and far away rural locations, thanks to its short wheelbase, large brooms, and dual-mode air suspension system.
ELGIN® Mechanical Sweeper, Model: Broom Bear, New Condition, 260 hp Engine Horsepower, Cummins® Engine Manufacturer, Turbocharged Engine, 34 in Main Broom Diameter, 60 in Main Broom Length, 46 in Side Broom Diameter, 5 or 6 Segment Plastic Disposable Side Broom, 90 in Sweeping Path Width (One Side), 120 in Sweeping Path Width (Two Side), Squeegee Elevator Conveyor, 4.5 cu-yd Hopper Capacity, Side Dump, 11 ft 2 in Dump Height, Electro-Hydraulic Dump Control, 50 deg Dump Angle, 11000 lb Lifting, 360 gal Water Tank Capacity, Diesel Fuel, 23 gal Hydraulic Tank Capacity, Hydraulic Motor Drive System, Mechanical Mobility, Wheeled Undercarriage, Hydraulic Control, Polyethylene Water Tank Material, Polypropylene Broom, High-Gloss, Powder-Coated Paint, White Paint Color, Commercial Class 7 Chassis, Add-On Options Available: Arrow Stick, Automatic Lubrication System, Broom Camera System, Chevron Conveyor Belt, Fire Extinguisher, Front Spray Bar, Hydrant Wrench, In-Cab Side Broom Speed Control, LED Strobe, Lighting Bundles, Outside Cab, Side Broom Down Pressure Control, 272 in L x 115 in H
- Single-engine technology
