| Add-On Options Available | : | Arrow Stick, Beacon Guards, Broom Camera System, Conveyor Flush, Dualeyes™ Camera System, Fire Extinguisher, Hydrant Wrench, LED Stick, Lifeliner® Hopper System, Stainless Steel Hopper |
| Broom Material | : | Polypropylene |
| Chassis Type | : | Commercial Class 5 |
| Condition | : | New |
| Control Type | : | Hydraulic |
| Conveyor Type | : | Squeegee Elevator |
| Dimensions | : | 245 in L x 109 in W x 102 in H |
| Divisions | : | OWEN |
| Drive System | : | Hydraulic Motor |
| Dump Angle | : | 50 deg |
| Dump Control Type | : | Hydraulic |
| Dump Height | : | 120 in |
| Dump Type | : | Side |
| Engine Horsepower | : | 65.1 hp |
| Engine Manufacturer | : | Kubota |
| Engine Type | : | Turbocharged |
| Fuel Type | : | Diesel |
| Hopper Capacity | : | 4 cu-yd |
| Hydraulic Tank Capacity | : | 30 gal |
| Lifting Capacity | : | 9400 lb |
| Main Broom Diameter | : | 36 in |
| Main Broom Length | : | 58 in |
| Mobility Type | : | Mechanical |
| Model | : | Broom Badger |
| Paint Color | : | White |
| Paint Type | : | High-Gloss |
| Side Broom Diameter | : | 46 in |
| Side Broom Type | : | 5 Segment Plastic Disposable |
| Sweeping Path Width - One Side | : | 89 in |
| Sweeping Path Width - Two Side | : | 120 in |
| Undercarriage Type | : | Wheeled |
| Water Tank Capacity | : | 220 gal |
| Water Tank Material | : | Polyethylene |

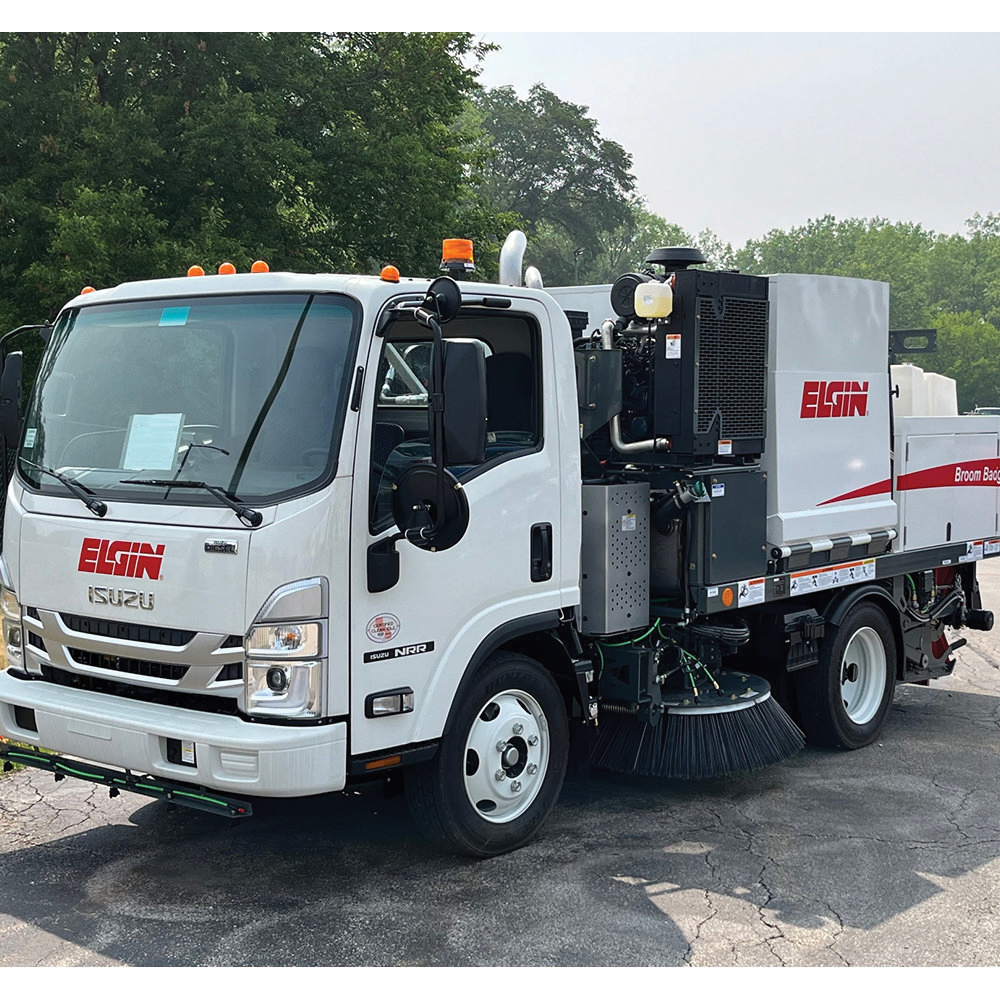

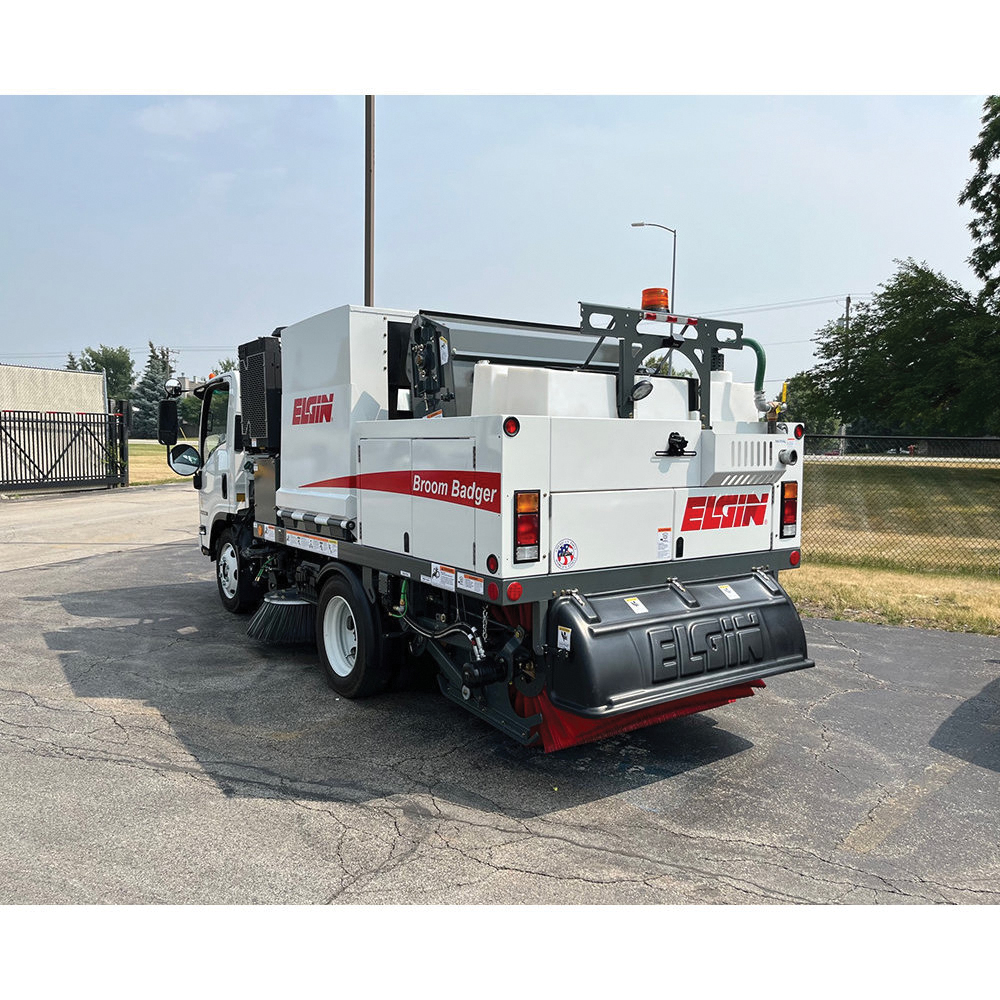

Looking for a maneuverable yet powerful compact mechanical sweeper. If so, consider the Broom Badger® from Elgin® Sweeper. This dual-engine sweeper is easy to operate and maintain and does not require a Commercial Drivers License (CDL) to operate, making it ideal for municipal and contractor customers who need powerful cleaning in a size that benefits their operations. The compact, low-profile design allows easy access to tree-lined streets. And the short, 109-inch (2769 mm) wheelbase and tight turning radius give the operator great maneuverability for cul-de-sac curb lines and tightly winding streets without sacrificing sweeping performance. The Broom Badger is mounted on a 19,500 lb. Class 5 cab-over chassis available with standard air ride suspension. It features a 4.0 yd3 (3.06 m3) hopper with variable height dumping, up to 10 ft. (3.048 m), a 220 gallon (833 L) water tank for dust suppression, and dual gutter brooms for a 10 foot (3.048 m) wide sweep path.
ELGIN® Mechanical Sweeper, Model: Broom Badger, New Condition, 65.1 hp Engine Horsepower, Kubota Engine Manufacturer, Turbocharged Engine, 36 in Main Broom Diameter, 58 in Main Broom Length, 46 in Side Broom Diameter, 5 Segment Plastic Disposable Side Broom, 89 in Sweeping Path Width (One Side), 120 in Sweeping Path Width (Two Side), Squeegee Elevator Conveyor, 4 cu-yd Hopper Capacity, Side Dump, 120 in Dump Height, Hydraulic Dump Control, 50 deg Dump Angle, 9400 lb Lifting, 220 gal Water Tank Capacity, Diesel Fuel, 30 gal Hydraulic Tank Capacity, Hydraulic Motor Drive System, Mechanical Mobility, Wheeled Undercarriage, Hydraulic Control, Polyethylene Water Tank Material, Polypropylene Broom, High-Gloss Paint, White Paint Color, Commercial Class 5 Chassis, Add-On Options Available: Arrow Stick, Beacon Guards, Broom Camera System, Conveyor Flush, Dualeyes™ Camera System, Fire Extinguisher, Hydrant Wrench, LED Stick, Lifeliner® Hopper System, Stainless Steel Hopper, 245 in L x 109 in W x 102 in H
- Non-CDL; 19,500 lb GVWR chassis
