| Additional Information | : | Corrosion-Resistant, Buna-N Seal |
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 3/8 in |
| Connection Type 1 | : | Female SAE ORFS Swivel |
| Connection Type 2 | : | Male SAE ORFS |
| Connection Type | : | Female ORFS Swivel|Male ORFS |
| Dimension Standards | : | SAE J1453, SAE J515 |
| Dimensions | : | 1.56 in L |
| Finish | : | Trivalent Zinc-Plated |
| Fitting Type | : | Reducer |
| Hex Size | : | 1-3/8 in |
| Material Construction | : | AISI 12L14/1045 Steel |
| Material | : | Steel |
| Maximum Operating Pressure | : | 6000 psi |
| Operating Temperature | : | -40 to 250 deg F |
| Series | : | FS2406 Series |
| Thread Size | : | 1-3/16-12 x 11/16-16 |

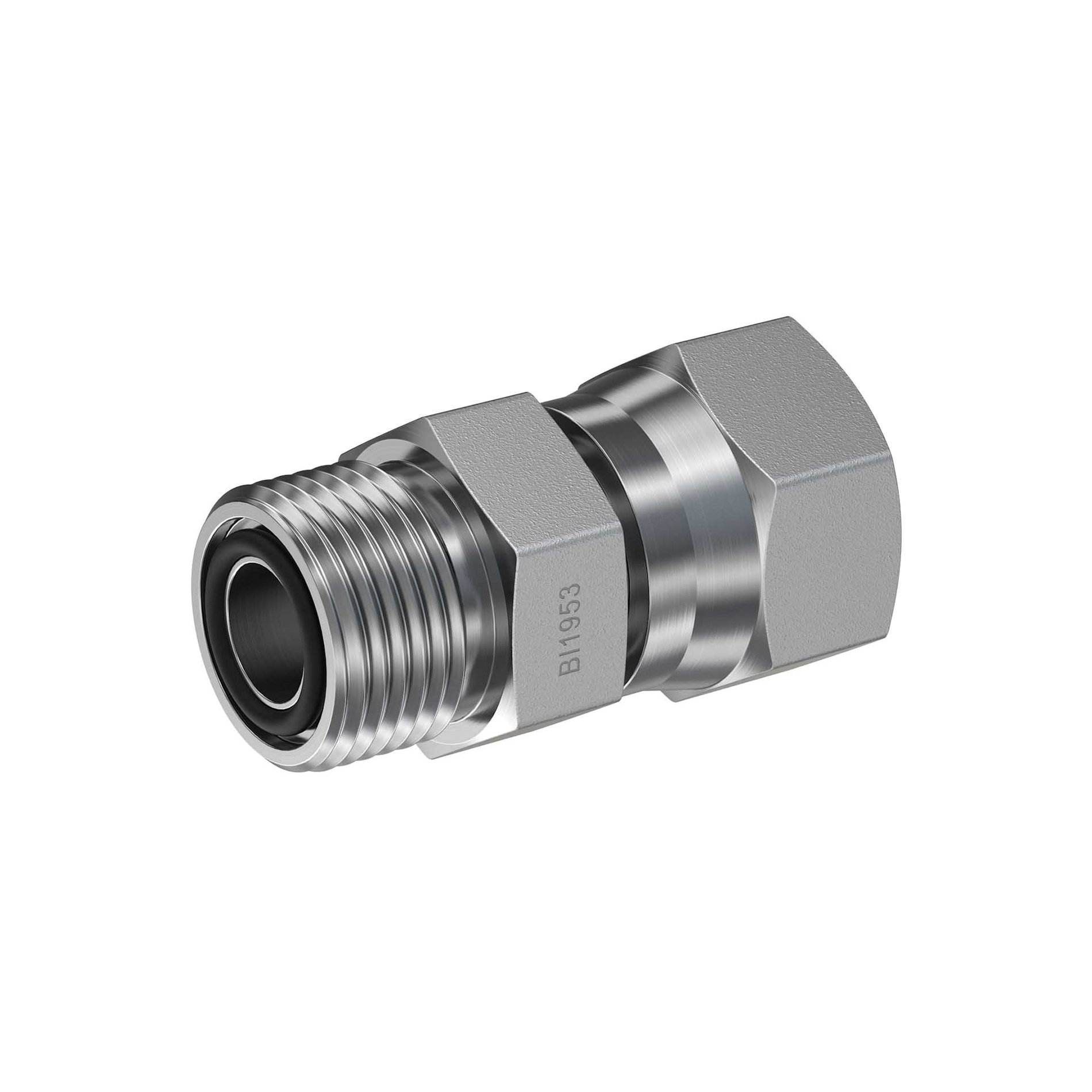

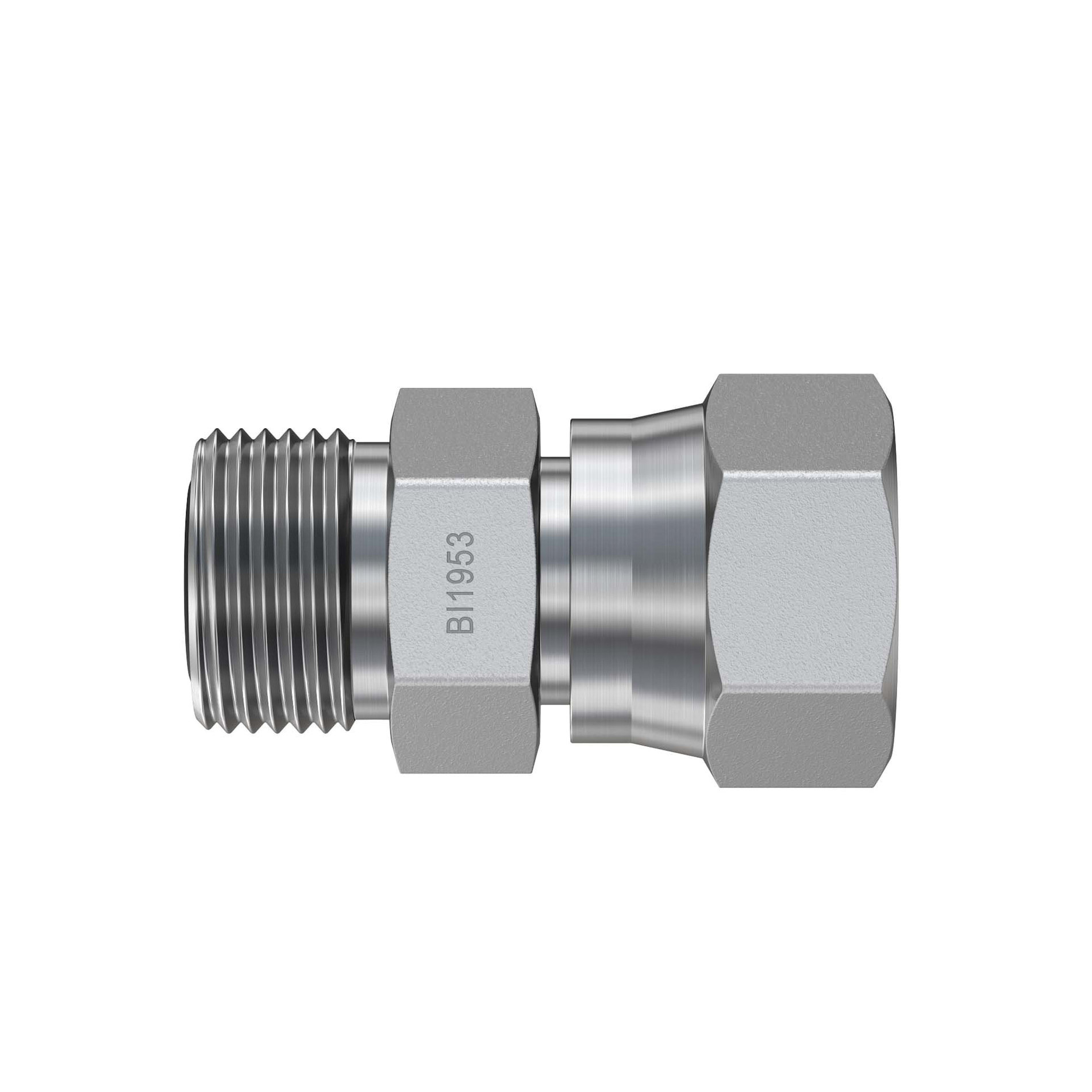

BRENNAN Tube End Straight Reducer, FS2406 Series, Reducer Fitting, 3/4 in Connection Size 1, Connection Type 1: Female SAE ORFS Swivel, 3/8 in Connection Size 2, Connection Type 2: Male SAE ORFS, Female ORFS Swivel|Male ORFS Connection, Steel, Material Construction: AISI 12L14/1045 Steel, Finish: Trivalent Zinc-Plated, 1-3/16-12 x 11/16-16 Thread, 1-3/8 in Hex, Dimension Standards: SAE J1453, SAE J515, 1.56 in L, 6000 psi Maximum Operating Pressure, -40 to 250 deg F Operating Temperature, Additional Information: Corrosion-Resistant, Buna-N Seal
