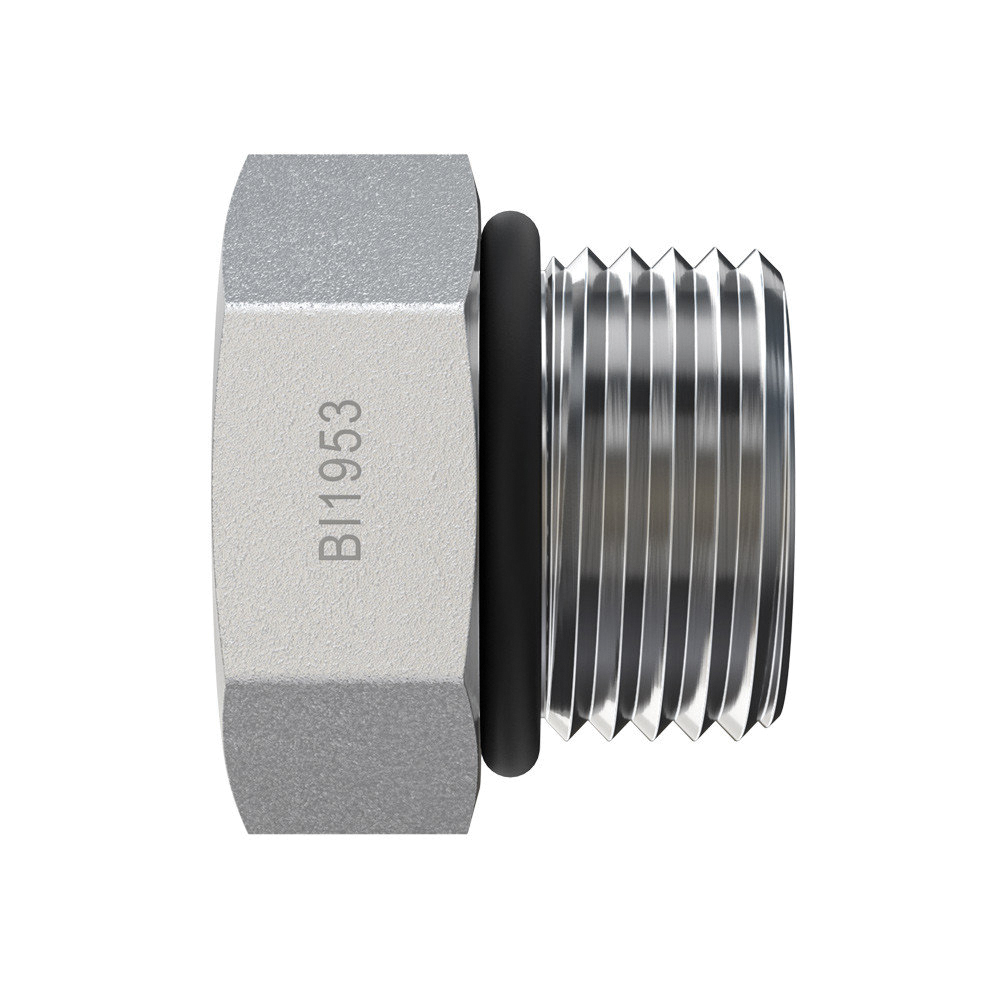

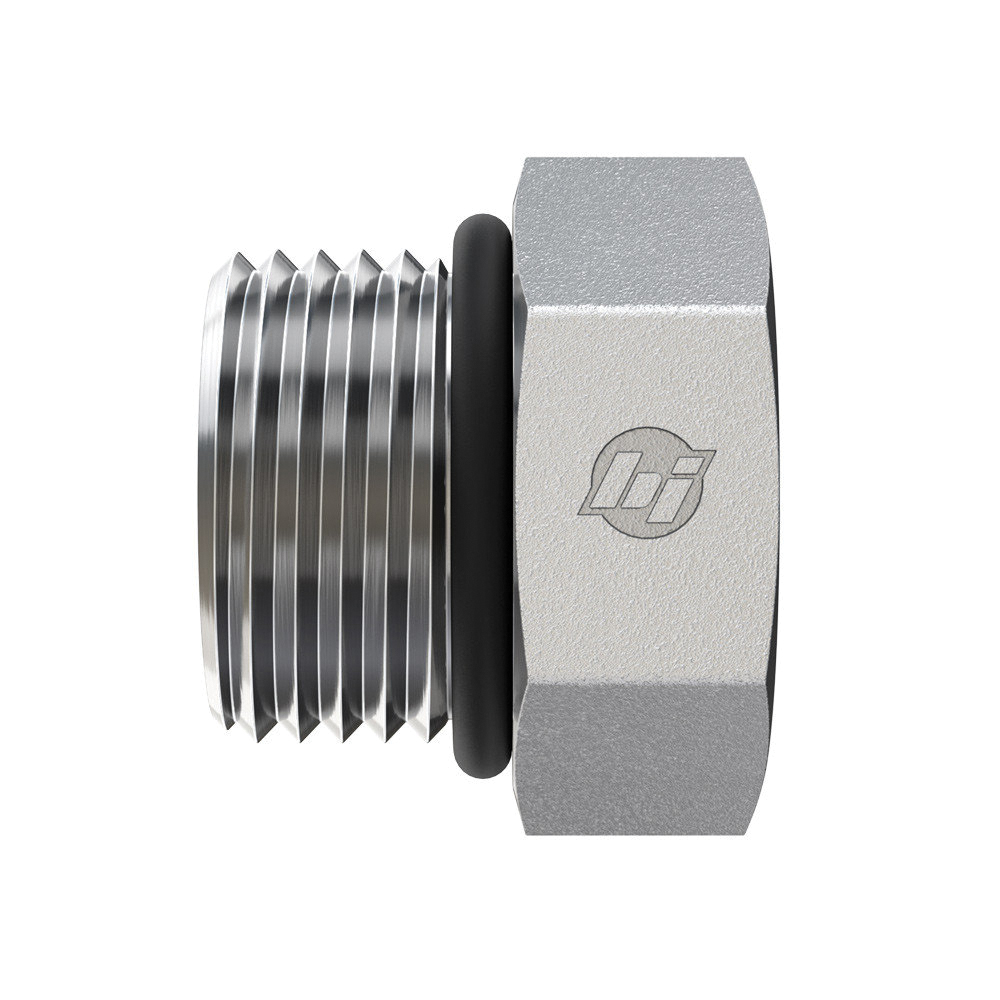

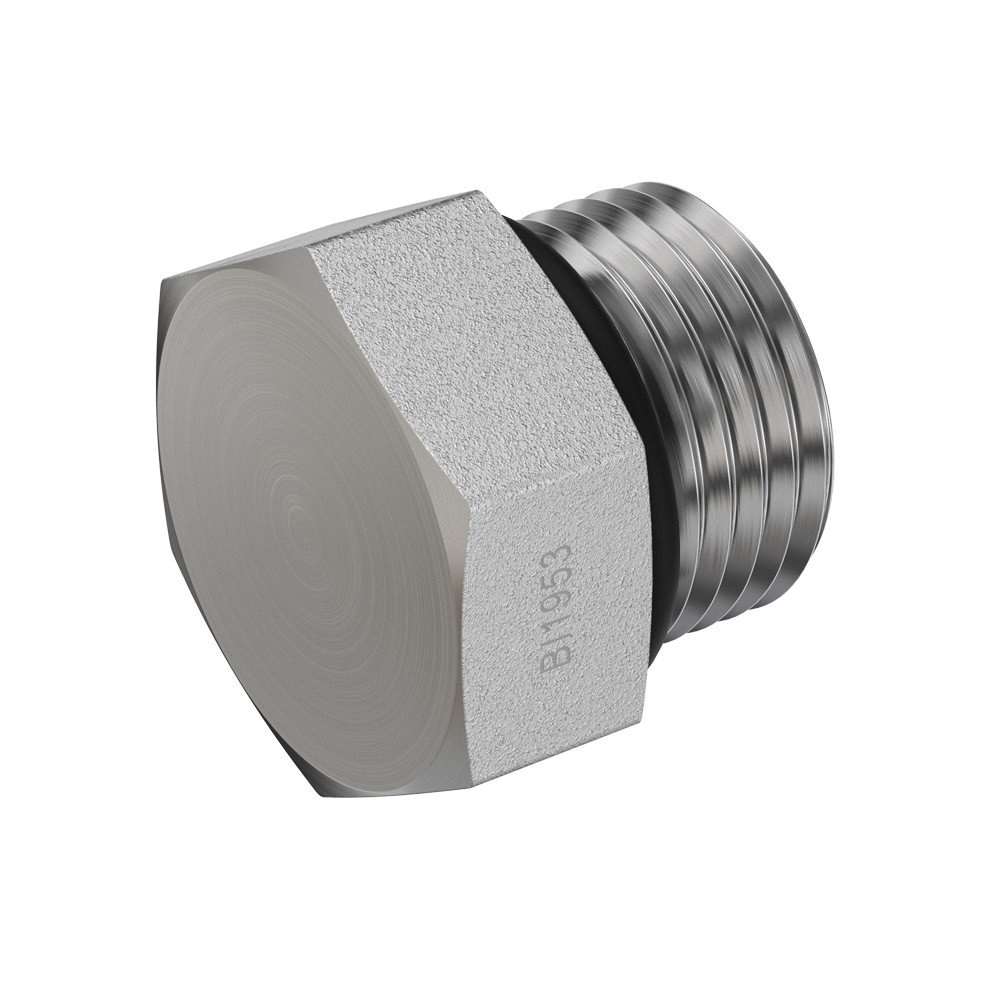

BRENNAN 6408-20-O External Hex Head Plug, 1-1/4 in Male SAE ORB, Steel

Manufacturer: Brennan Industries
Brand: BRENNAN
Item Number: 254604
MPN: 6408-20-O
CPN:
    • Santa Fe Springs, CA
    Additional Information      :      1-7/8 in Hex Size, 1-5/8-12 Thread Size, Corrosion-Resistant
    Connection Size      :      1-1/4 in
    Connection Type      :      Male SAE ORB
    Dimension Standards      :      SAE J1926
    Dimensions      :      1.2 in L
    Finish      :      Trivalent Zinc-Plated
    Fitting Type      :      Plug
    Material Construction      :      AISI 12L14/1045 Steel
    Material      :      Steel
    Maximum Operating Pressure      :      4000 psi
    Operating Temperature      :      -40 to 250 deg F
    Series      :      6408-O Series

    BRENNAN External Hex Head Plug, 6408-O Series, Plug Fitting, 1-1/4 in Connection, Male SAE ORB Connection, Steel, Material Construction: AISI 12L14/1045 Steel, Finish: Trivalent Zinc-Plated, Dimension Standards: SAE J1926, 1.2 in L, 4000 psi Maximum Operating Pressure, -40 to 250 deg F Operating Temperature, Additional Information: 1-7/8 in Hex Size, 1-5/8-12 Thread Size, Corrosion-Resistant
