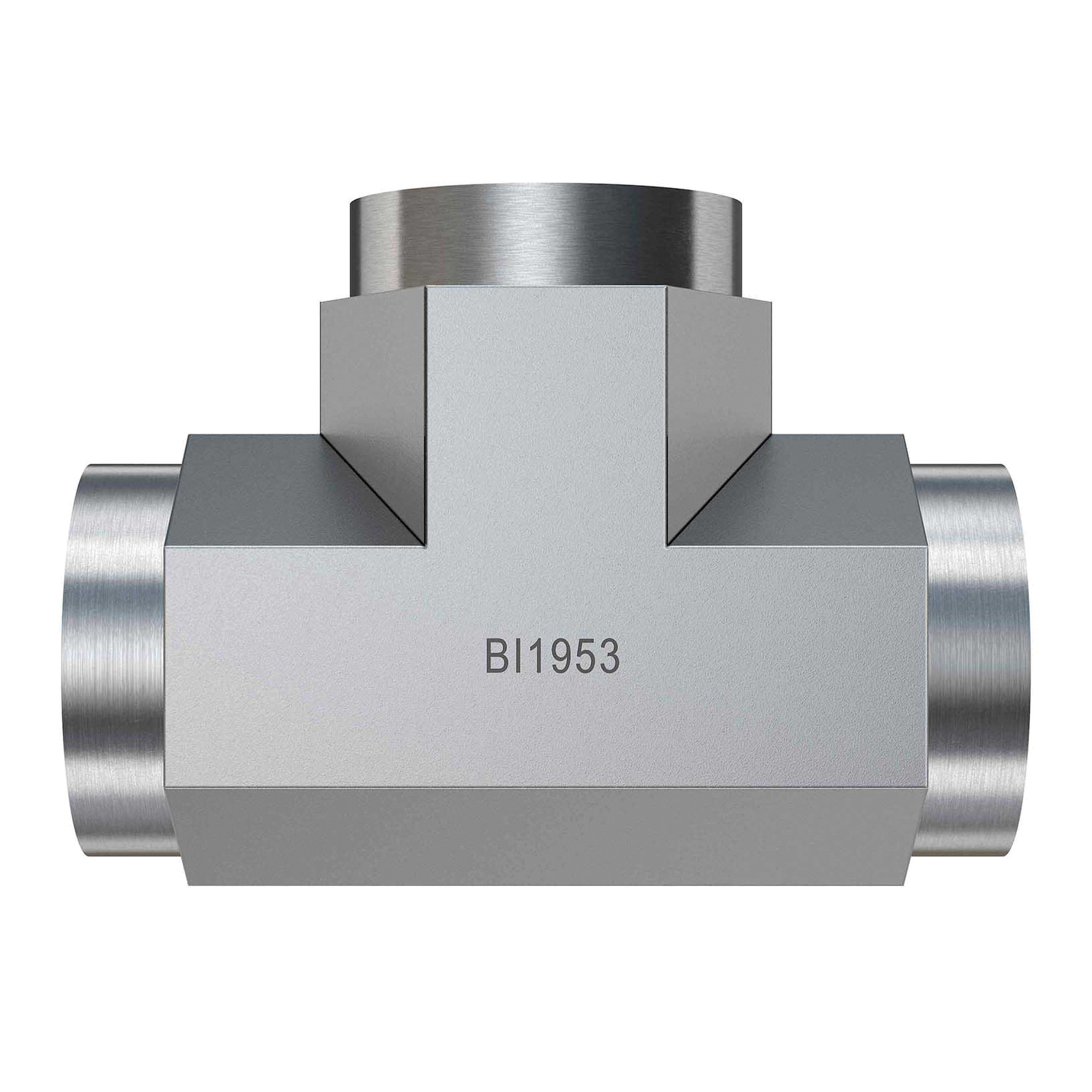

BRENNAN 5605-06-06-06-FG Tee, 3/8 in Female SAE NPTF x 3/8 in Female SAE NPTF x 3/8 in Female SAE NPTF, Steel

Manufacturer: Brennan Industries
Brand: BRENNAN
Item Number: 254527
MPN: 5605-06-06-06-FG
CPN:
    • Santa Fe Springs, CA
    Connection Size 1      :      3/8 in
    Connection Size 2      :      3/8 in
    Connection Size 3      :      3/8 in
    Connection Type 1      :      Female SAE NPTF
    Connection Type 2      :      Female SAE NPTF
    Connection Type 3      :      Female SAE NPTF
    Connection Type      :      FNPT|FNPT|FNPT
    Dimension Standards      :      SAE J476, SAE J514
    Dimensions      :      2.04 in L
    Finish      :      Trivalent Zinc-Plated
    Fitting Type      :      Tee
    Hex Size      :      7/8 in
    Material Construction      :      AISI C1045 Steel
    Material      :      Steel
    Maximum Operating Pressure      :      4500 psi
    Operating Temperature      :      -65 to 500 deg F
    Series      :      5605-FG Series
    Thread Size      :      3/8-18

    BRENNAN Tee, 5605-FG Series, Tee Fitting, 3/8 in Connection Size 1, Connection Type 1: Female SAE NPTF, 3/8 in Connection Size 2, Connection Type 2: Female SAE NPTF, Connection Size 3: 3/8 in, Connection Type 3: Female SAE NPTF, FNPT|FNPT|FNPT Connection, Steel, Material Construction: AISI C1045 Steel, Finish: Trivalent Zinc-Plated, 3/8-18 Thread, 7/8 in Hex, Dimension Standards: SAE J476, SAE J514, 2.04 in L, 4500 psi Maximum Operating Pressure, -65 to 500 deg F Operating Temperature
