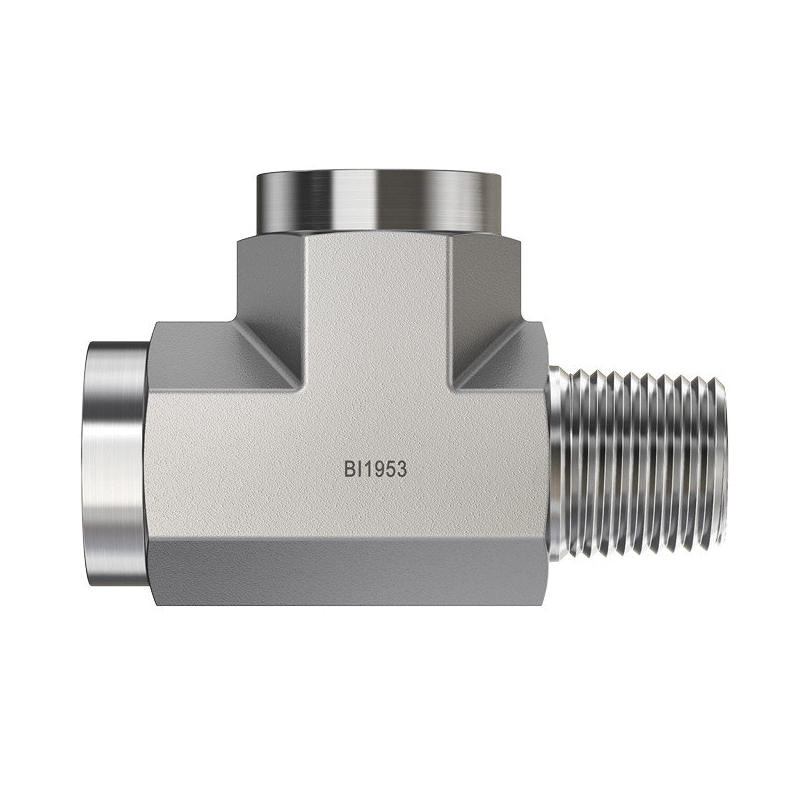

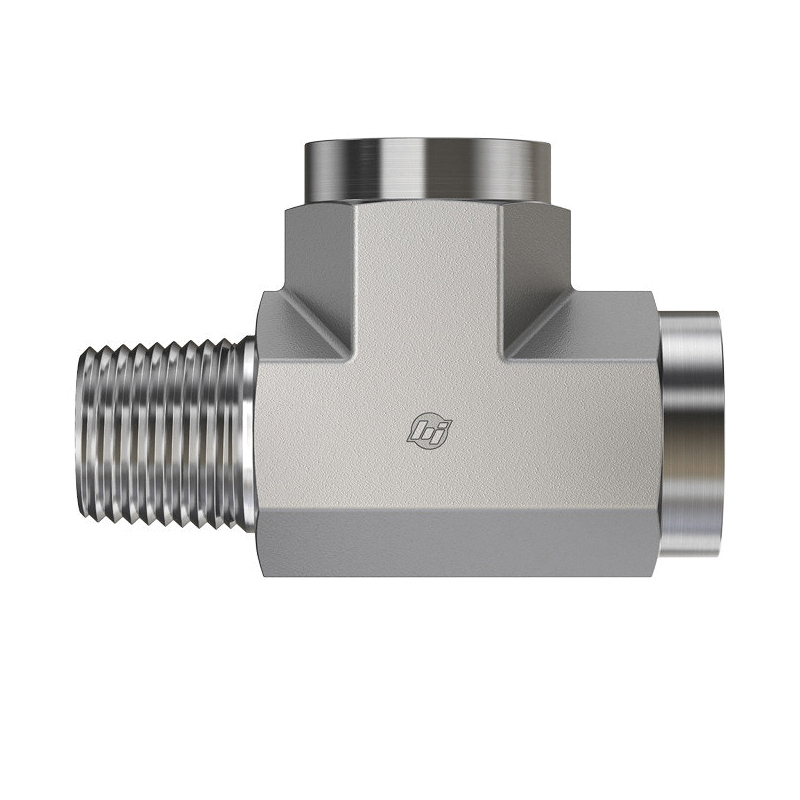

BRENNAN 5602-08-08-08-FG Street Tee, 1/2 in Male SAE 30 deg NPTF x 1/2 in Female SAE NPTF x 1/2 in Female SAE NPTF

Manufacturer: Brennan Industries
Brand: BRENNAN
Item Number: 339497
MPN: 5602-08-08-08-FG
CPN:
    • Santa Fe Springs, CA
    Connection Size 1      :      1/2 in
    Connection Size 2      :      1/2 in
    Connection Size 3      :      1/2 in
    Connection Type 1      :      Male SAE 30 deg NPTF
    Connection Type 2      :      Female SAE NPTF
    Connection Type 3      :      Female SAE NPTF
    Connection Type      :      MNPT|FNPT|FNPT
    Dimension Standards      :      SAE J476, SAE J514
    Dimensions      :      2.7 in L
    Finish      :      Trivalent Zinc-Plated
    Fitting Type      :      Tee
    Hex Size      :      1.062 in
    Material Construction      :      AISI C1045 Steel
    Material      :      Steel
    Maximum Operating Pressure      :      3000 psi
    Operating Temperature      :      -65 to 500 deg F
    Series      :      5602-FG Series
    Thread Size      :      1/2-14

    BRENNAN Street Tee, 5602-FG Series, Tee Fitting, 1/2 in Connection Size 1, Connection Type 1: Male SAE 30 deg NPTF, 1/2 in Connection Size 2, Connection Type 2: Female SAE NPTF, Connection Size 3: 1/2 in, Connection Type 3: Female SAE NPTF, MNPT|FNPT|FNPT Connection, Steel, Material Construction: AISI C1045 Steel, Finish: Trivalent Zinc-Plated, 1/2-14 Thread, 1.062 in Hex, Dimension Standards: SAE J476, SAE J514, 2.7 in L, 3000 psi Maximum Operating Pressure, -65 to 500 deg F Operating Temperature
